Rear Side Door Locking Rod Replacement

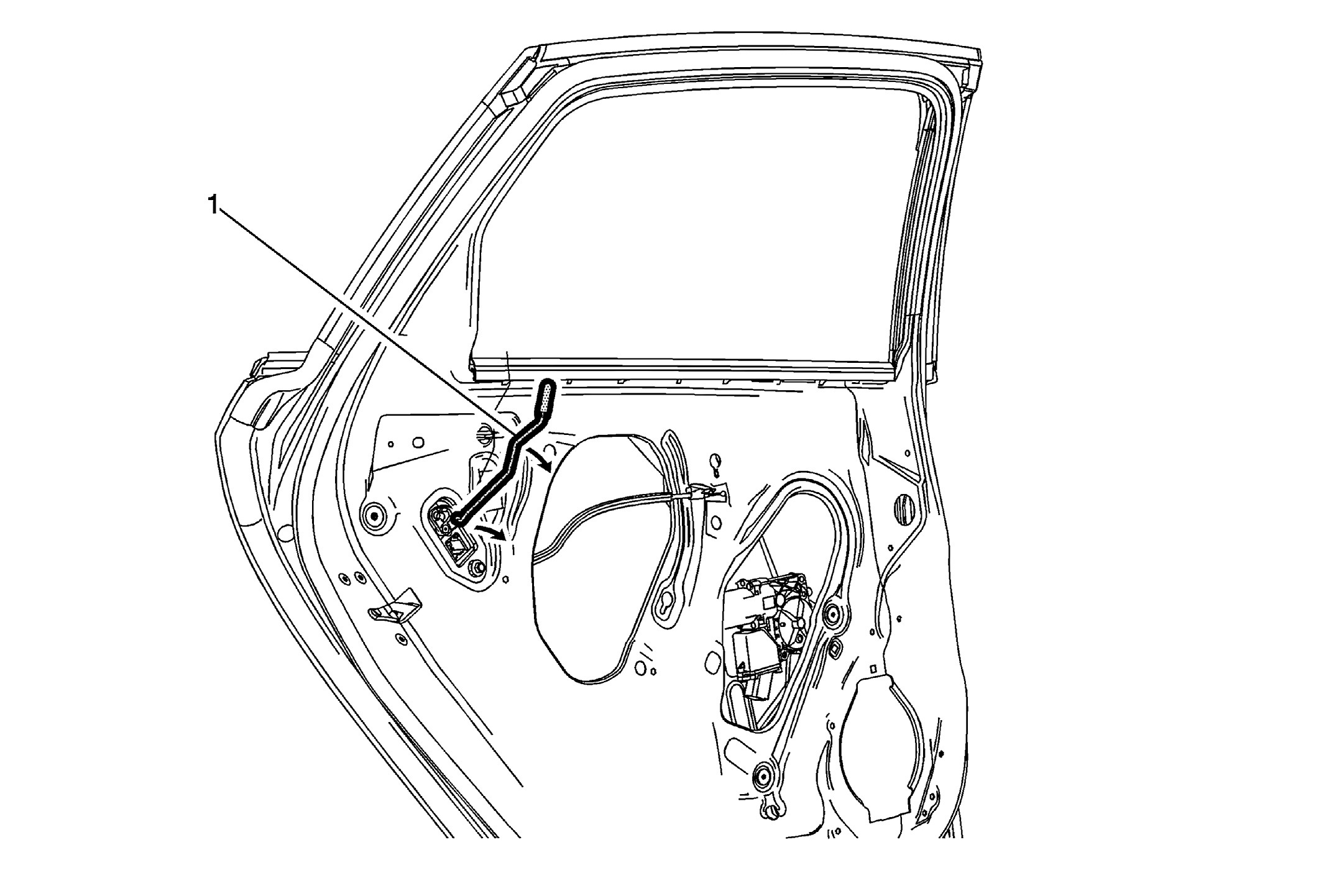

Fig 1: Rear Side Door Locking Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Locking Rod Procedure Release the locking rod from the retainer. Turn the locking rod down, pull upward and turn releasing it from the latch. NOTE: Ensure that the door lock system operates properly before installing the trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Locking Rod

Procedure

NOTE:

Ensure that the door lock system operates properly before installing the trim.
