Rear Side Door Inside Handle Replacement

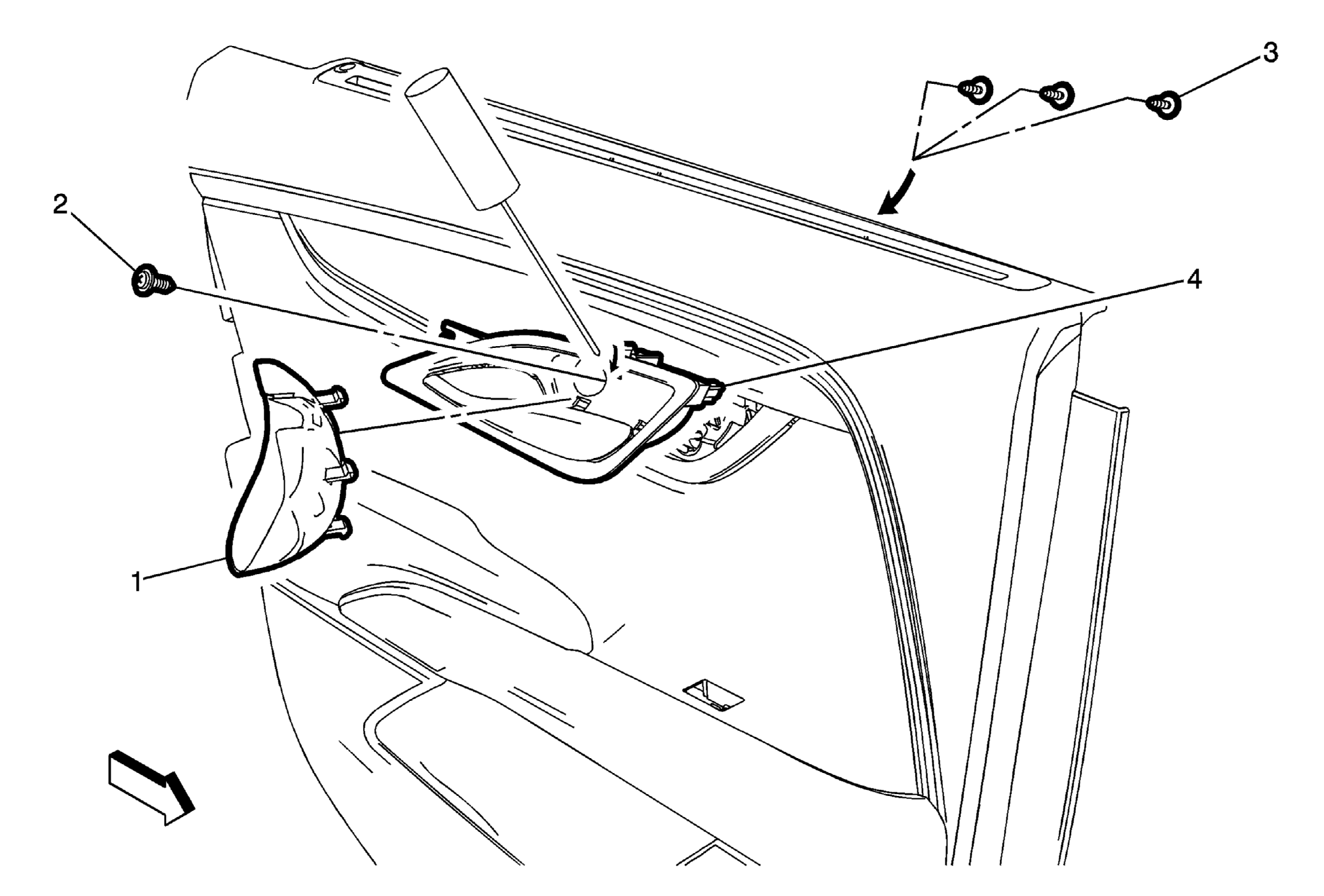

Fig 1: Rear Side Door Inside Handle Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door trim panel applique. Refer to Rear Side Door Trim Panel Applique Replacement .
1	Rear Side Door Inside Handle Cap NOTE: Use a suitable tool, place the tool between the notch located at the top of the door handle cap and the door handle. Turn the suitable tool clockwise releasing the door handle cap exposing the handle screw.
2	Rear Side Door Inside Handle Front Fastener CAUTION: Refer to Fastener Caution .
3	Rear Side Door Inside Handle Rear Fastener (Qty: 3) NOTE: The three screws are located on the backside of the trim panel.
4	Rear Side Door Inside Handle Assembly
