Removal Procedure

  1. Remove the front side door outside handle. Refer to Front Side Door Outside Handle Replacement .
    2. Fig 1: Front Side Door Outside Bracket & Screws
    GM2755842Courtesy of GENERAL MOTORS COMPANY
  2. Remove the screw (1) that retains the front side door outside bracket in the door (2).
    3. Fig 2: Door Outside Handle Bracket & Latch
    GM2725373Courtesy of GENERAL MOTORS COMPANY
  3. Remove the door outside handle bracket (1) and the front side door latch (2) assembly from the vehicle. Refer to Front Side Door Latch Replacement .
  4. Remove the front side door lock rod from the cylinder.
  5. Remove the front side door lock cylinder from the handle bracket. Refer to Front Side Door Lock Cylinder Replacement .

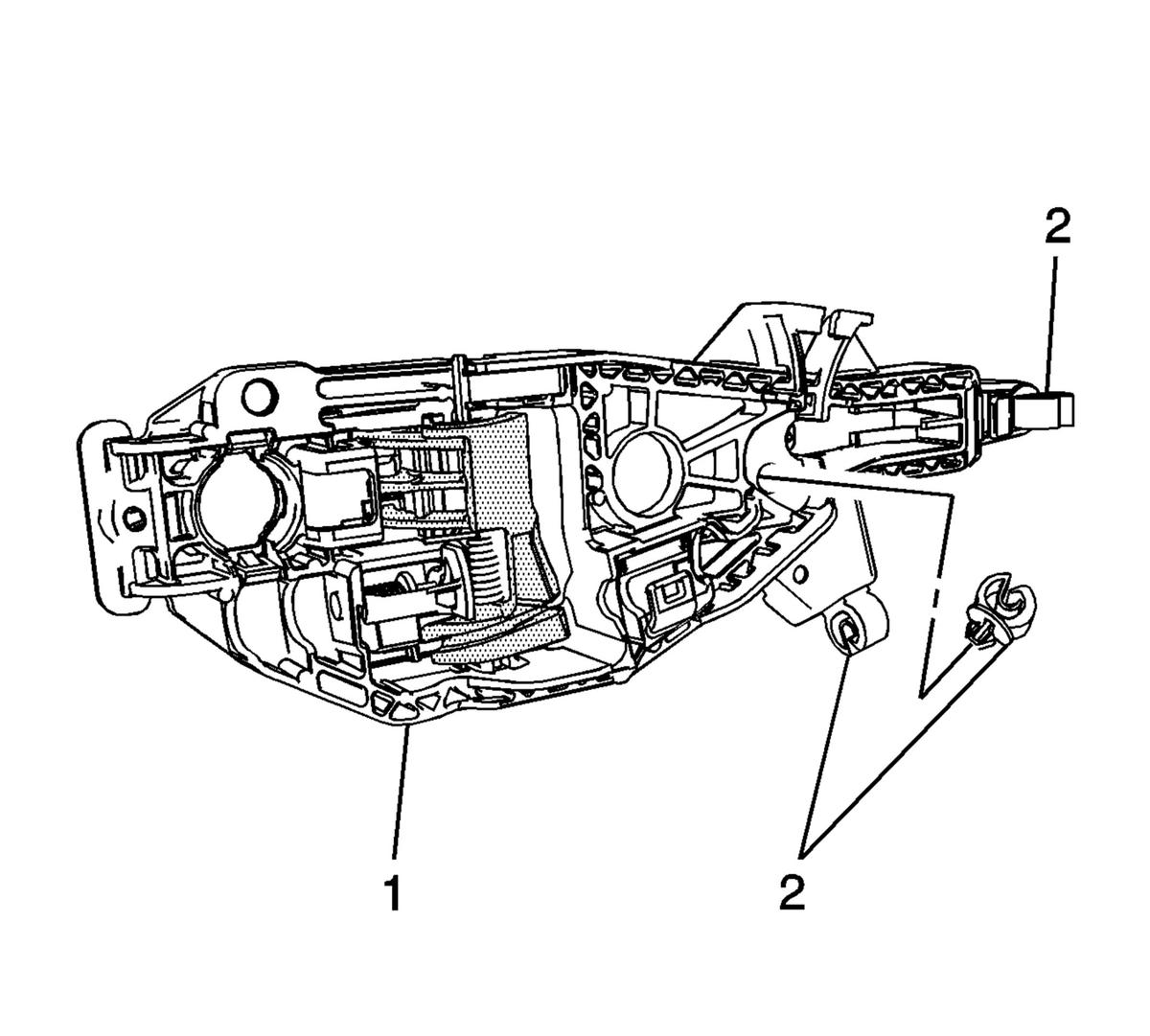

    6. Fig 3: Door Outside Handle Bracket & Cable Retainers
    GM2755846Courtesy of GENERAL MOTORS COMPANY
  6. Remove the front side door outside handle cable from the handle bracket (1). Refer to Front Side Door Outside Handle Cable Replacement .
