Data Link Connector Power, Ground, and Low Speed GMLAN

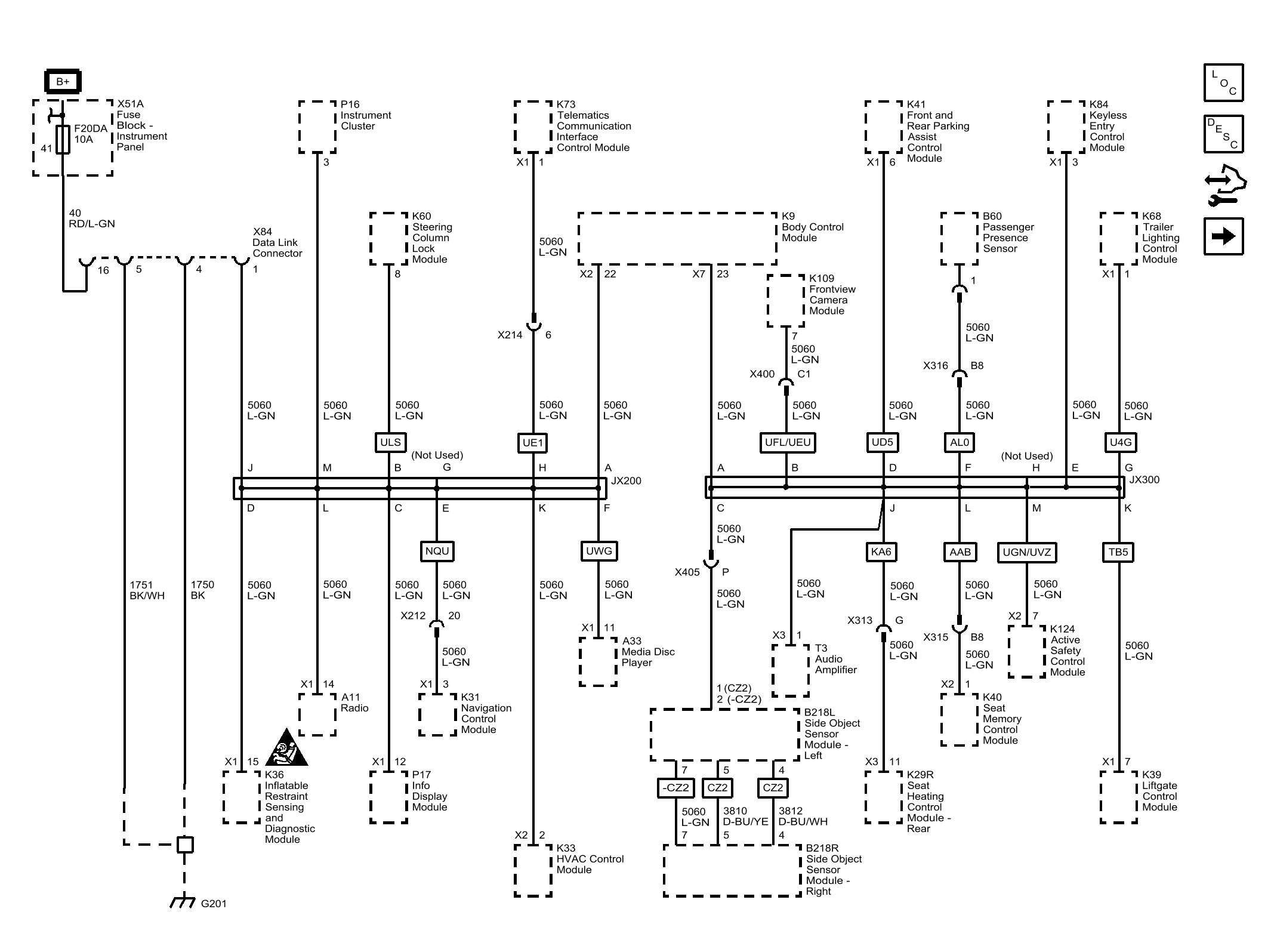

Fig 1: Data Link Connector Power, Ground, and Low Speed GMLAN

GM3755107

Courtesy of GENERAL MOTORS COMPANY
