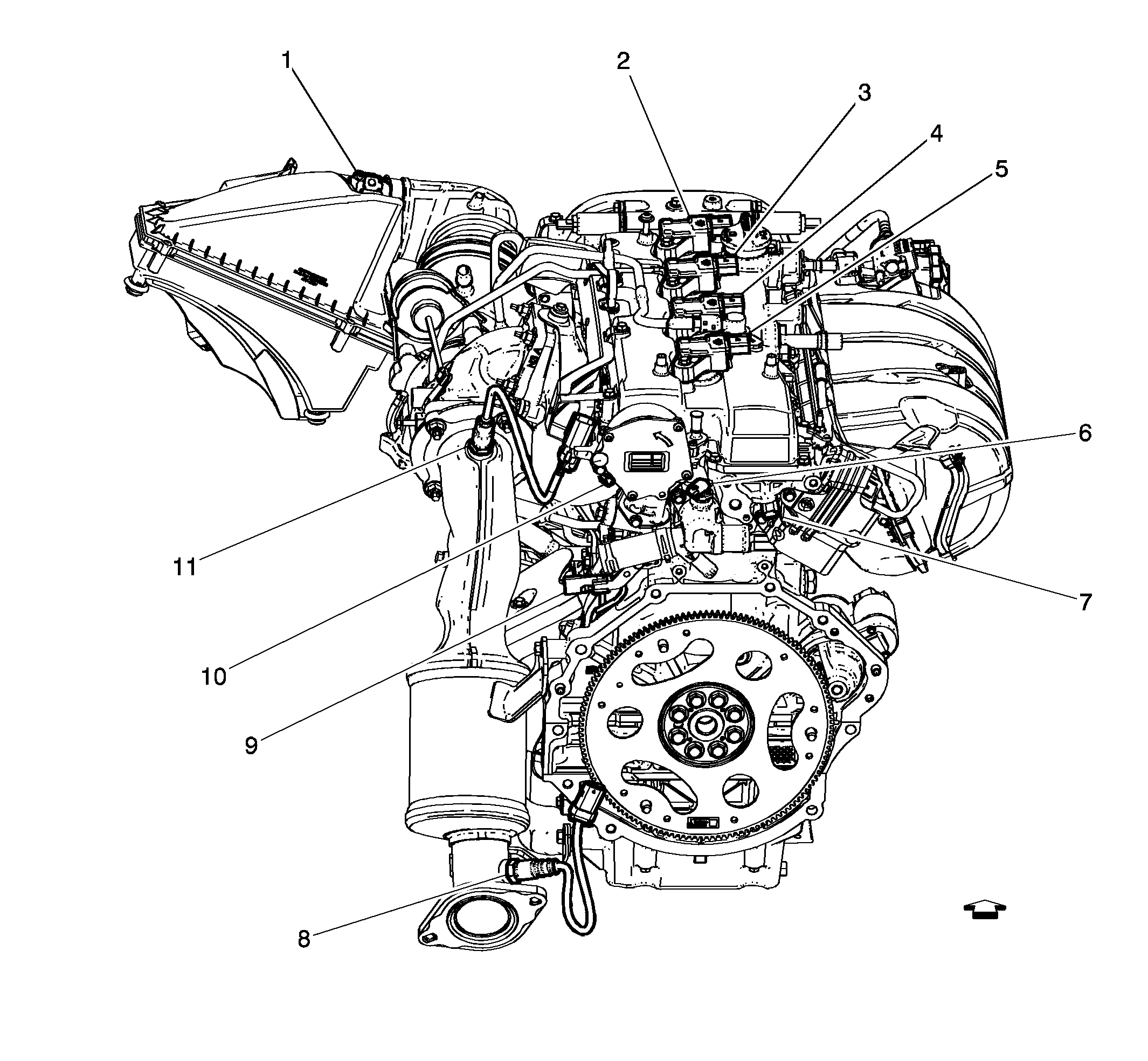

Engine Components - Rear (LTG)
Engine Components - Rear (LTG)
| Items |
|---|
| 1: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor () |
| 2: T8A Ignition Coil 1 T8A Ignition Coil 1 (LTG) |
| 3: T8B Ignition Coil 2 T8B Ignition Coil 2 (LTG) |
| 4: T8C Ignition Coil 3 T8C Ignition Coil 3 (LTG) |
| 5: T8D Ignition Coil 4 T8D Ignition Coil 4 (LTG) |
| 6: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LF3/LTG) |
| 7: B23F Camshaft Position Sensor - Intake (LTG) B23F Camshaft Position Sensor - Intake |
| 8: B52B Heated Oxygen Sensor 2 (LTG) B52B Heated Oxygen Sensor 2 |
| 9: Q44 Engine Oil Pressure Control Solenoid Valve (LTG) Q44 Engine Oil Pressure Control Solenoid Valve |
| 10: B23E Camshaft Position Sensor - Exhaust (LTG) B23E Camshaft Position Sensor - Exhaust |
| 11: B52A Heated Oxygen Sensor 1 (LTG) B52A Heated Oxygen Sensor 1 |
