Installation Procedure

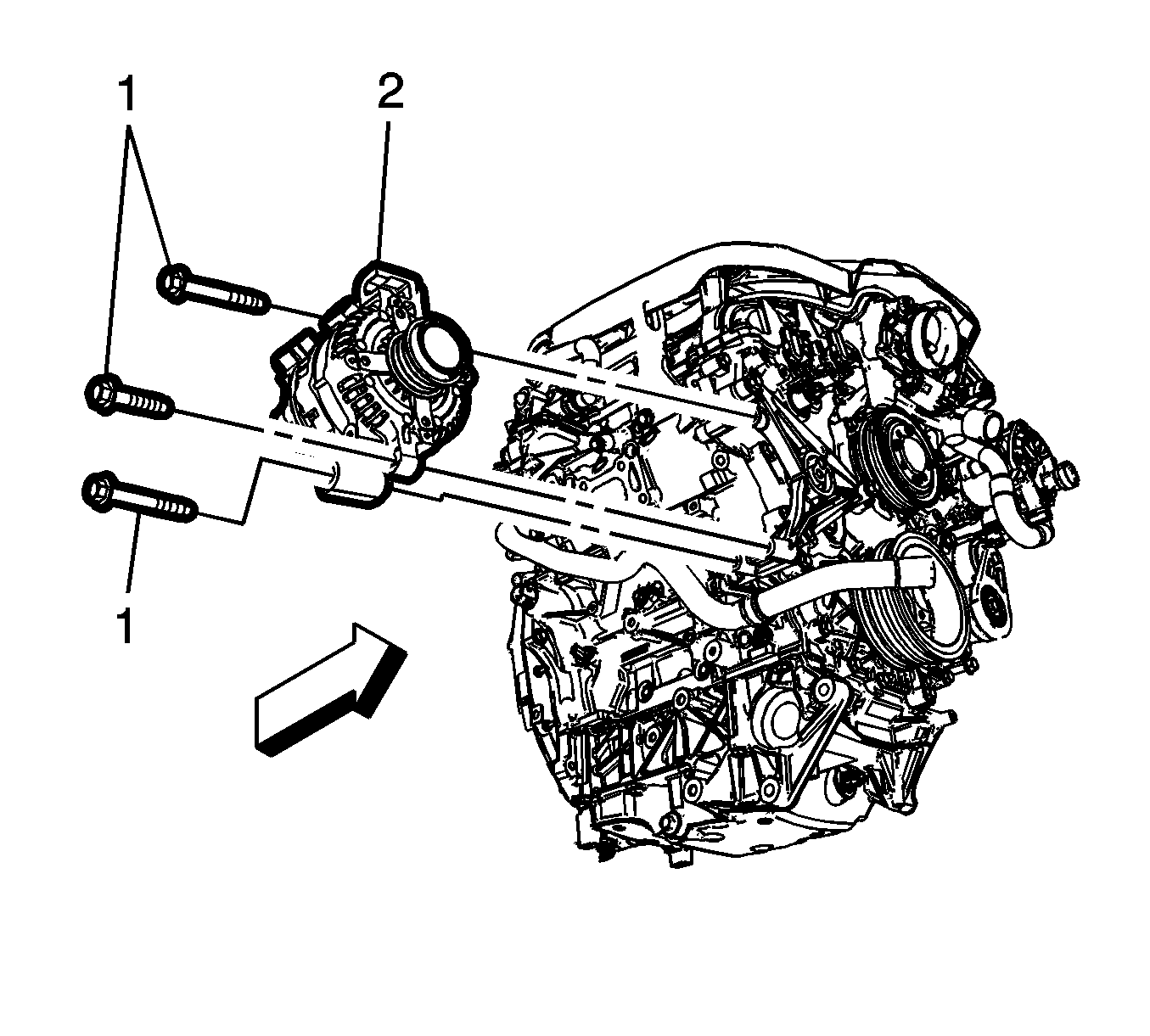

    Fig 1: Generator Mounting Fasteners
    GM2834084Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the generator (2) into position and tighten the mounting fasteners (1) to 58 N.m (43 lb ft).

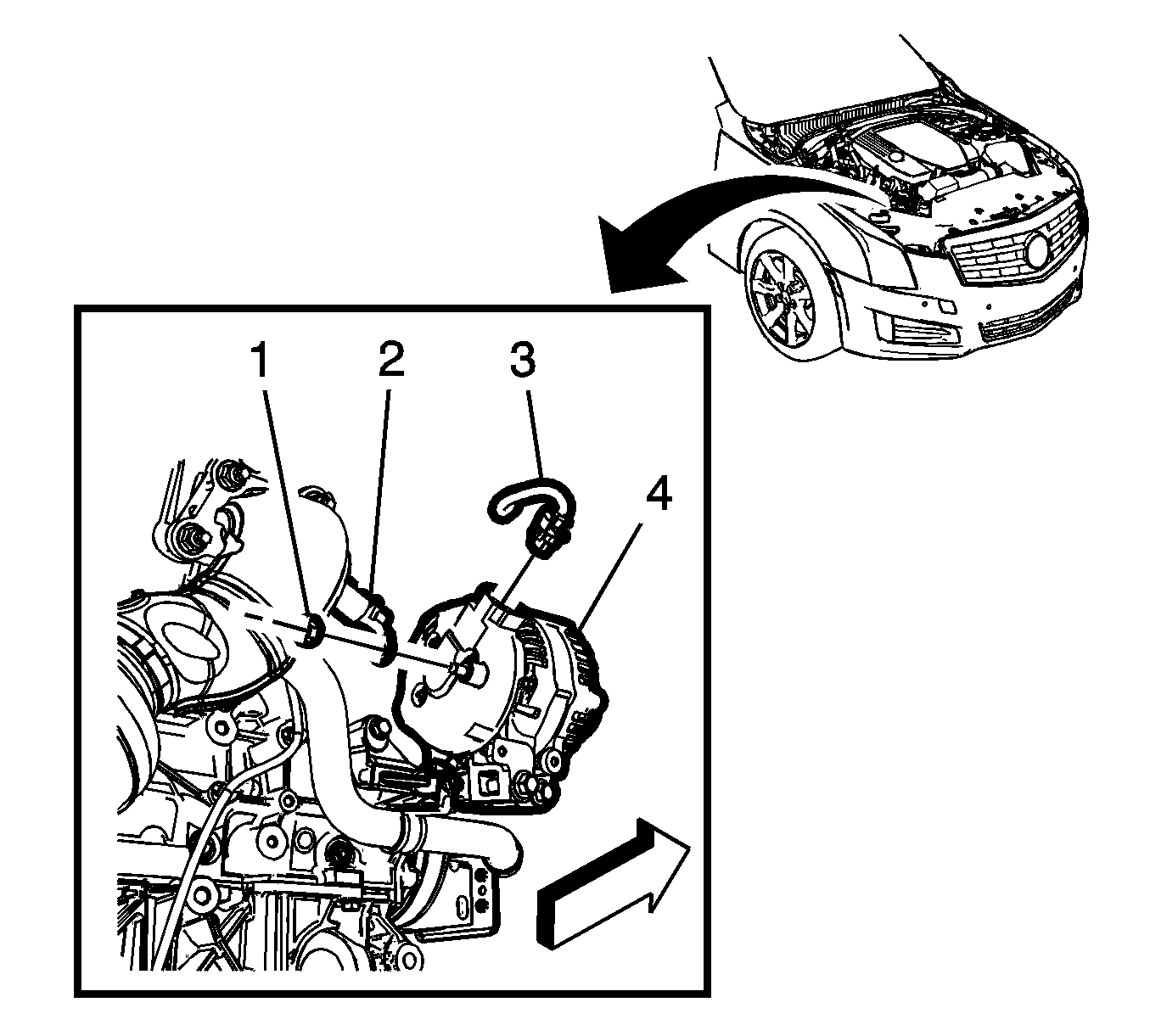

    2. Fig 2: Generator Engine Harness Connector
    GM2834081Courtesy of GENERAL MOTORS COMPANY
  2. Connect the engine harness connector (3) and the engine harness battery positive terminal (2) to the generator. Tighten the fastener (1) to 22 N.m (16 lb ft).
  3. Install the drive belt. Refer to Drive Belt Replacement .
  4. Install the power brake booster pump. Refer to Power Brake Booster Pump Replacement .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
