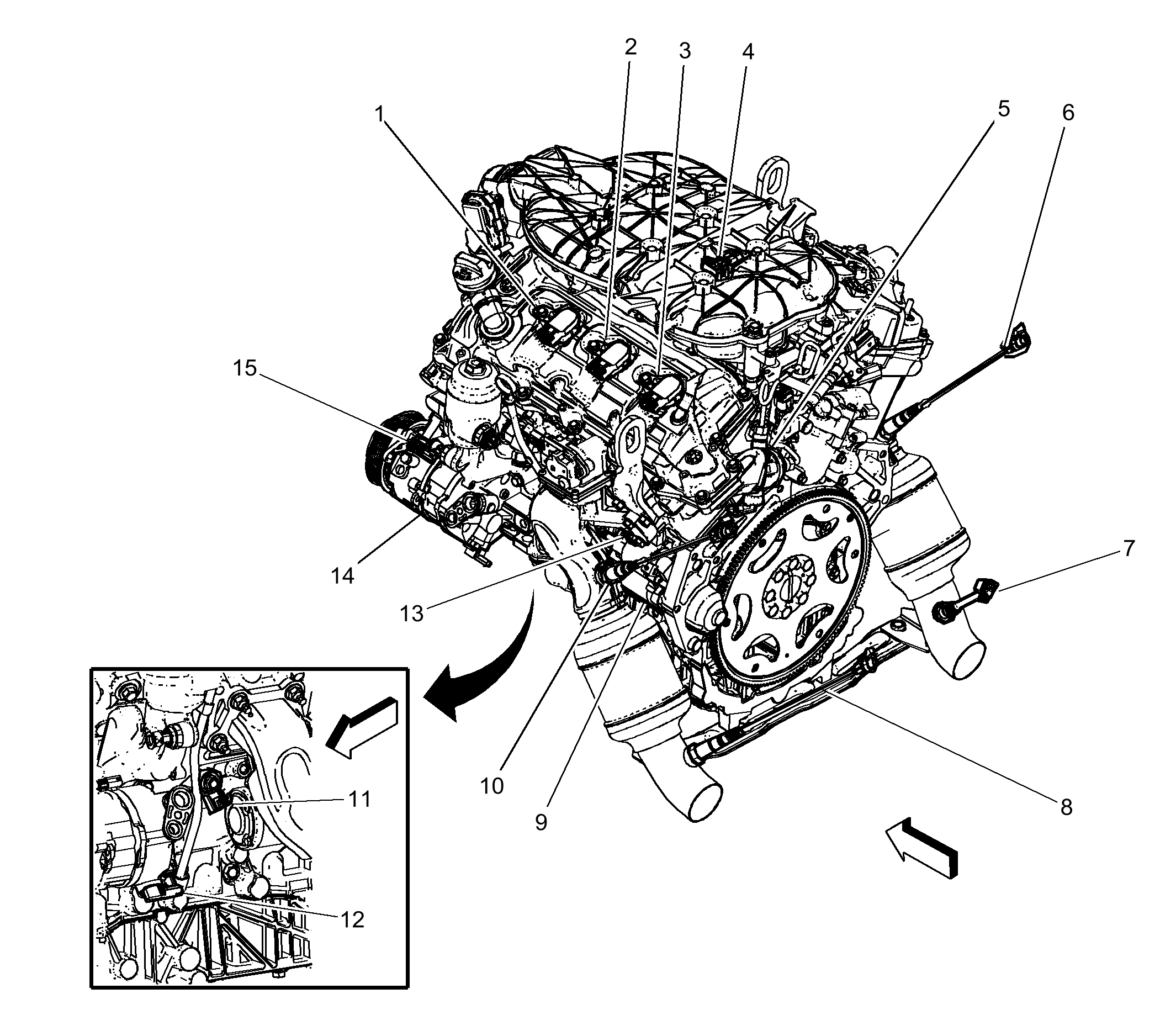

Left Rear of Engine Components (LFX)
Left Rear of Engine Components (LFX)
| Items |
|---|
| 1: T8B Ignition Coil 2 T8B Ignition Coil 2 (LFX) |
| 2: T8D Ignition Coil 4 T8D Ignition Coil 4 (LFX) |
| 3: T8F Ignition Coil 6 (LFX) T8F Ignition Coil 6 (LFX) |
| 4: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LCV/LFX) |
| 5: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LFX) |
| 6: B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX) |
| 7: B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX) |
| 8: B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX) |
| 9: M64 Starter Motor M64 Starter Motor X1 (LFX)M64 Starter Motor (LFX) |
| 10: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX) |
| 11: B68B Knock Sensor 2 B68B Knock Sensor 2 (LFX) |
| 12: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 13: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LFX) |
| 14: G1 A/C Compressor |
| 15: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
