Floor Console Components - Manual Transmission (M3L)

Items
1: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
2: S91 Park Brake Control Switch S91 Park Brake Control Switch S91 Park Brake Control Switch
3: S86 Vehicle Stability Control Switch S86 Vehicle Stability Control Switch (M3L)
4: X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6)X81 Accessory Power Receptacle - 110V AC X2 (KI6)
5: X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7)X81B Accessory Power Receptacle - 220V AC X2 (KI7)
6: X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console
7: X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 X83 Auxiliary Audio Input X2
8: K89 Immobilizer Control Module K89 Immobilizer Control Module
9: T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear
10: S75 Traction Control Switch (M3L) S75 Traction Control Switch (M3L)

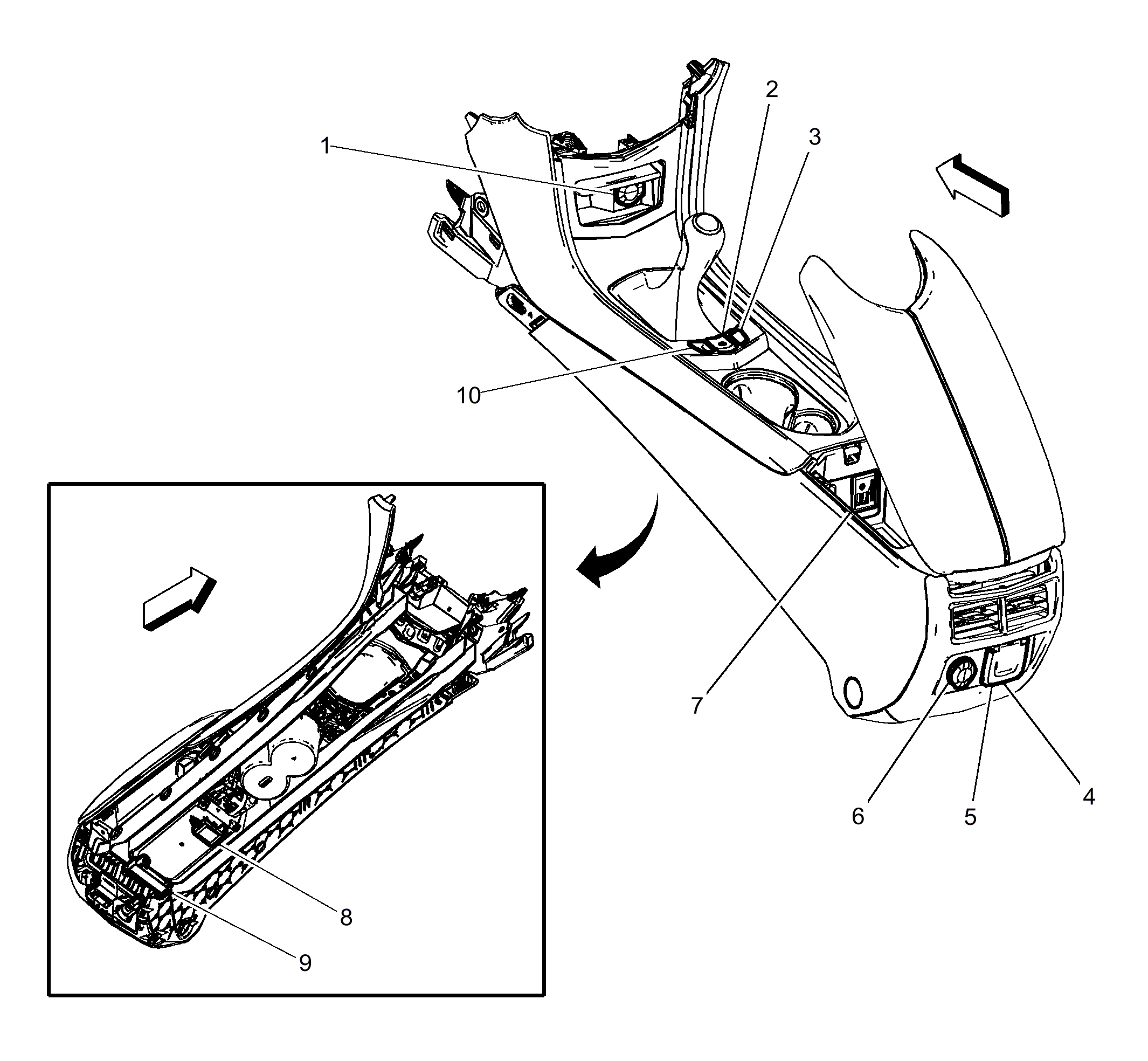

Fig 1: Floor Console Components - Manual Transmission (M3L)

Courtesy of GENERAL MOTORS COMPANY
