Object High Speed GMLAN (UGN without UVZ)

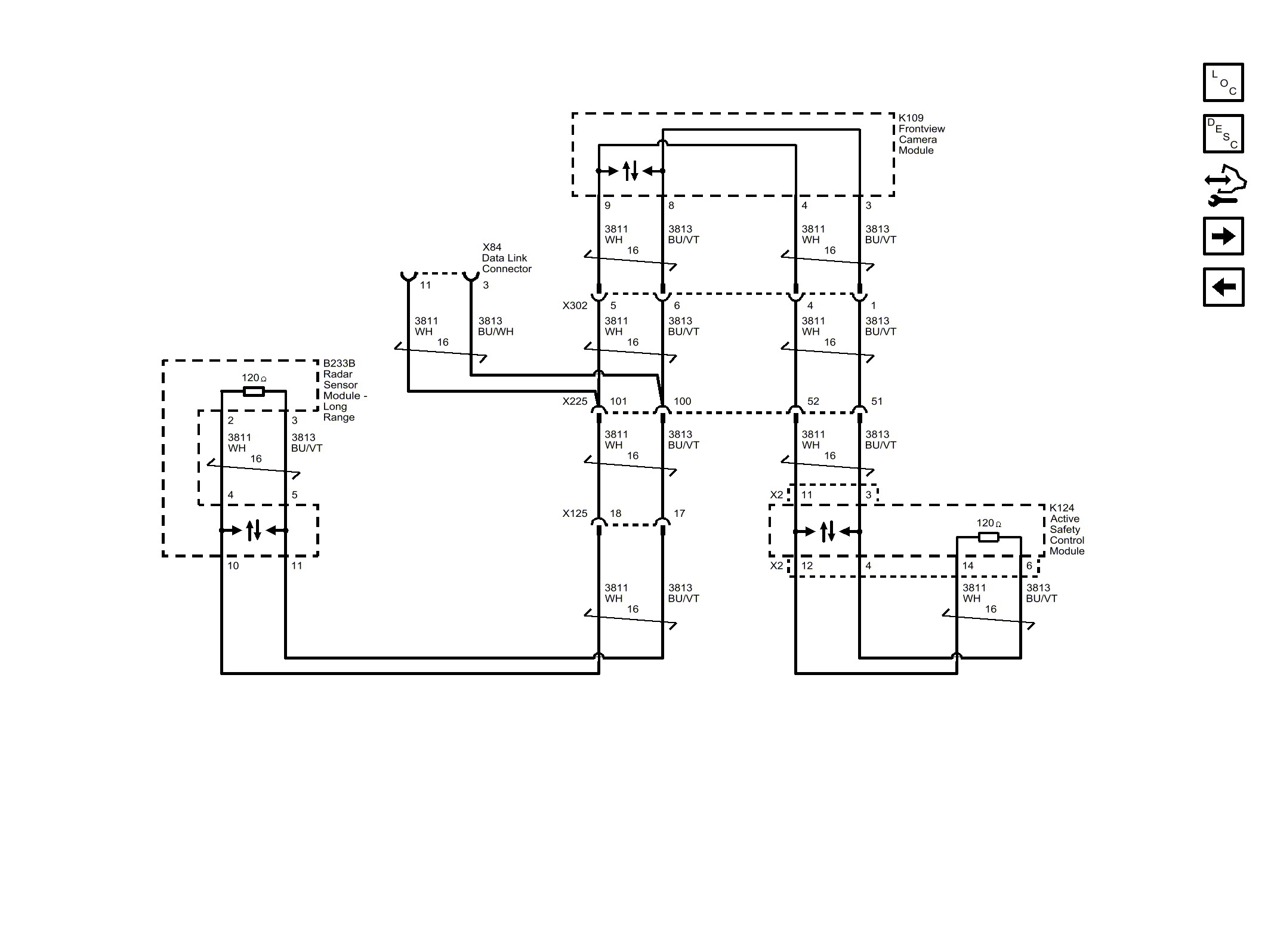

Fig 1: Object High Speed GMLAN (UGN without UVZ)

GM3687451

Courtesy of GENERAL MOTORS COMPANY
