Linear Interconnect Network (LIN) Bus 8, 9, 10 and 12

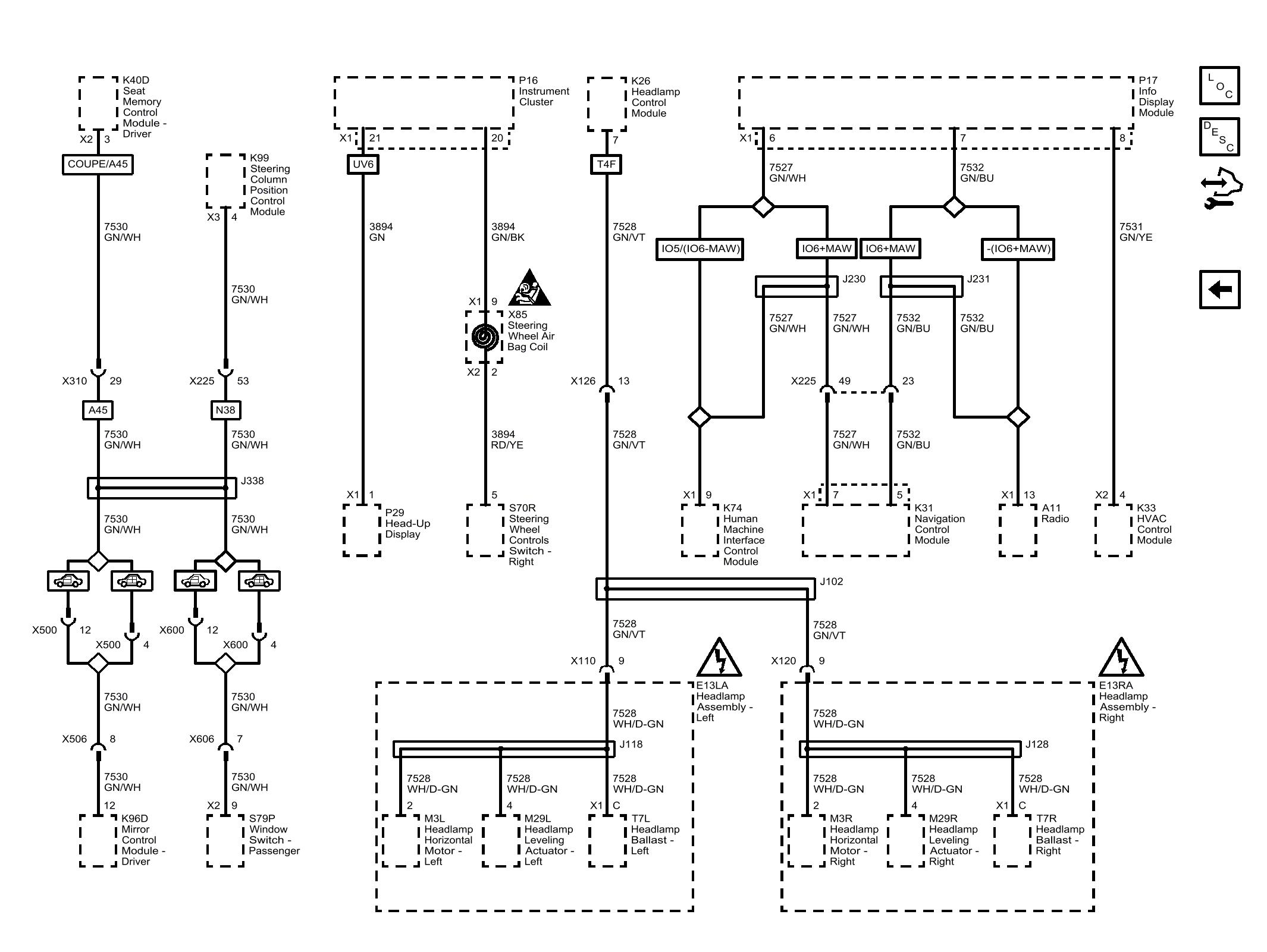

Fig 1: Linear Interconnect Network (LIN) Bus 8, 9, 10 and 12

GM3687457

Courtesy of GENERAL MOTORS COMPANY
