Chassis High Speed GMLAN

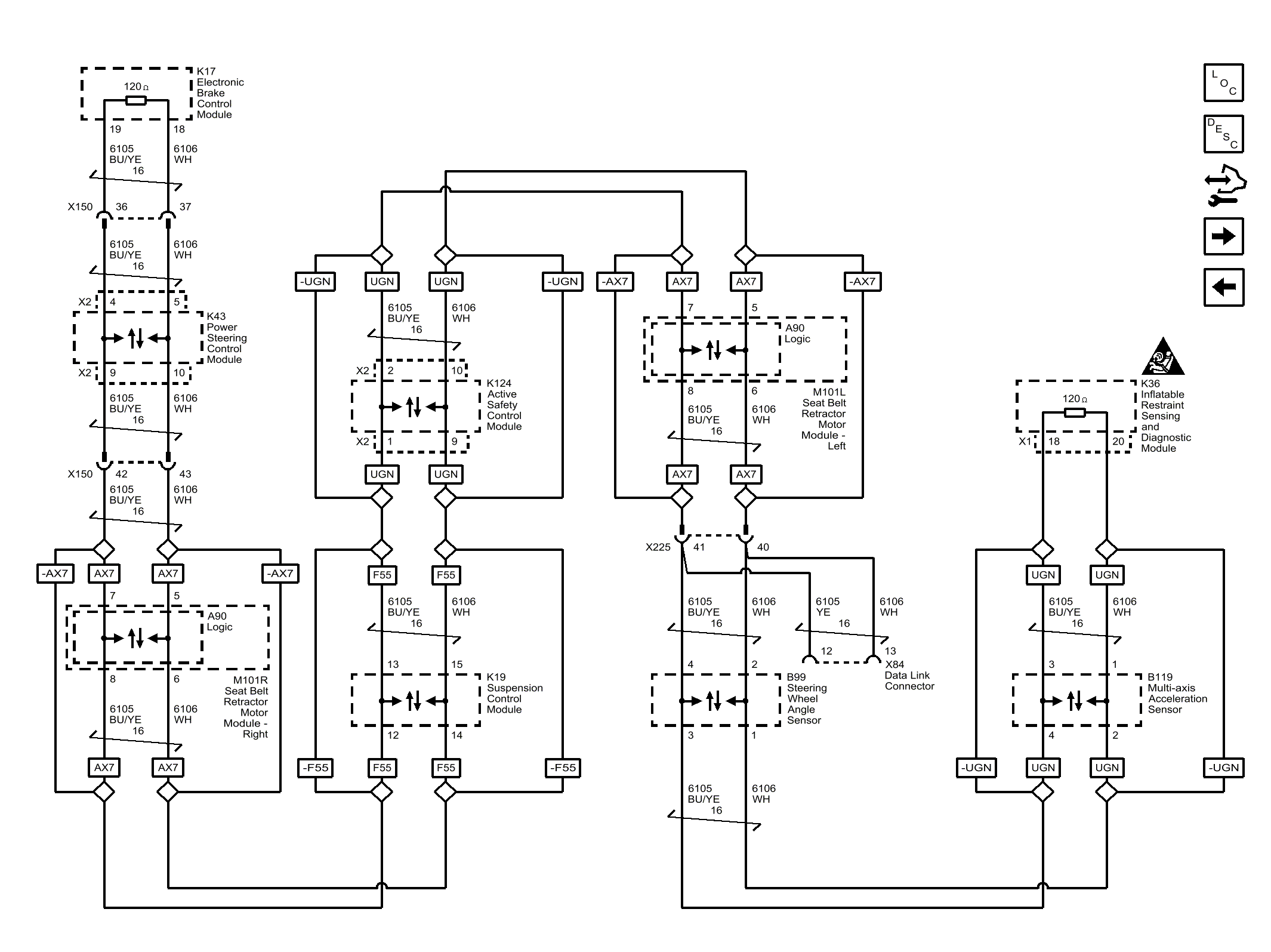

Fig 1: Chassis High Speed GMLAN
GM3687445Courtesy of GENERAL MOTORS COMPANY
