Installation Procedure

    Fig 1: Battery Tray Front Bracket
    GM2826797Courtesy of GENERAL MOTORS COMPANY
  1. Push forward the front battery tray bracket (3) and install the battery (1) into position using the battery assist handles (2).
    2. Fig 2: Battery Hold Down Bracket Fastener And Vent Hose
    GM2826796Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery hold down bracket (2) and tighten the fastener (1) to 9 N.m (80 lb in).
  3. Install the battery vent hose (3) to the side of the battery.

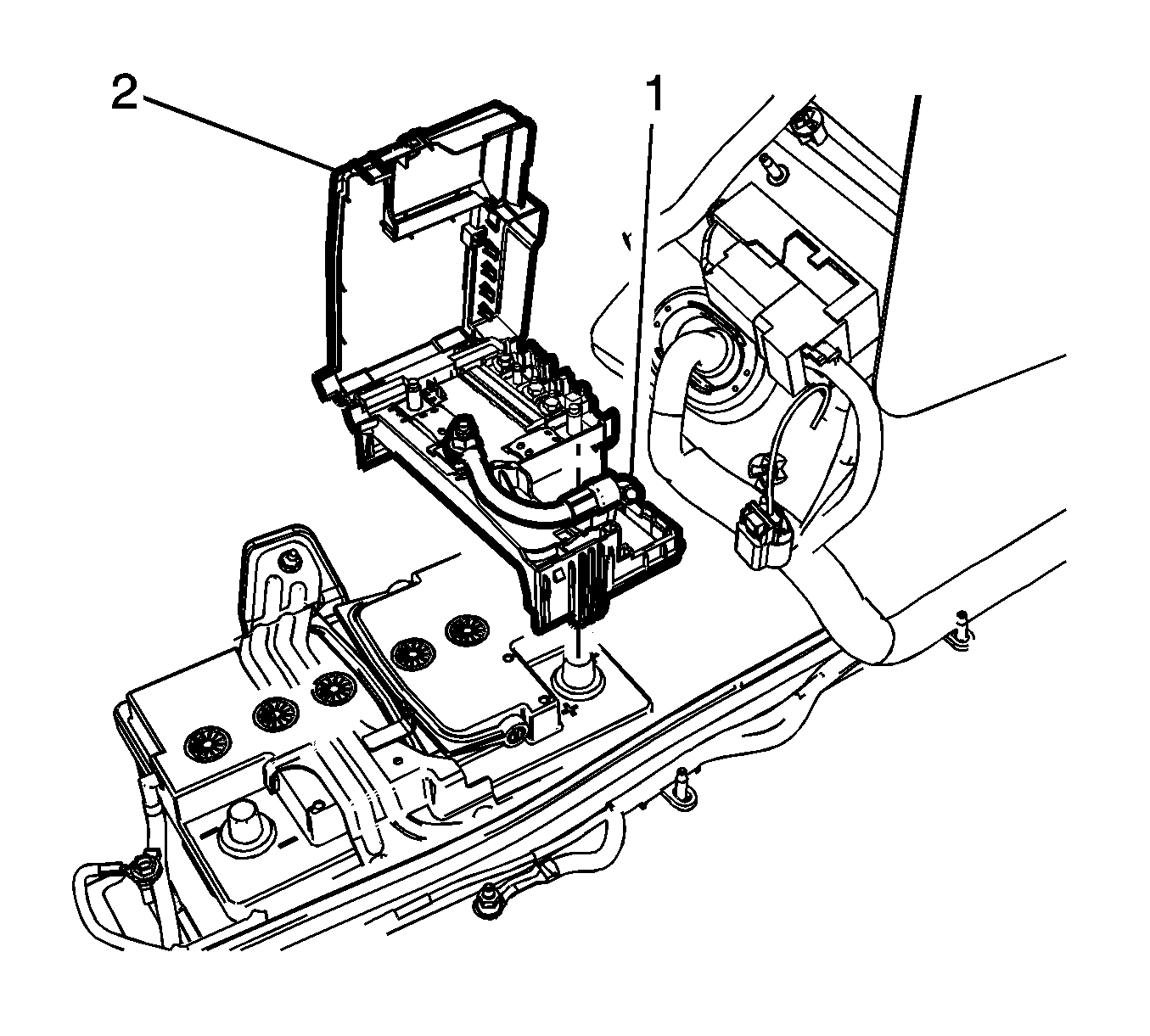

    4. Fig 3: Battery Fuse Block & Fastener
    GM2826794Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery fuse block (2) to the battery and tighten the battery positive fuse block clamp fastener (1) to 9 N.m (80 lb in).
    5. Fig 4: Battery Positive Cable & Mounting Components
    GM2826793Courtesy of GENERAL MOTORS COMPANY
  5. Install the battery positive cable (7) to the battery fuse block stud and tighten the fastener (1) to 15 N.m (11 lb ft).
  6. Attach the battery positive cable retainer (6) to the battery hold down bracket.
  7. Close the fuse block cover.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  9. Install the left side rear compartment trim panel. Refer to Rear Compartment Side Trim Replacement - Left Side (Sedan with AM9)Rear Compartment Side Trim Replacement - Left Side (Sedan except AM9)Rear Compartment Side Trim Replacement - Left Side (Coupe) .
