Installation Procedure

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

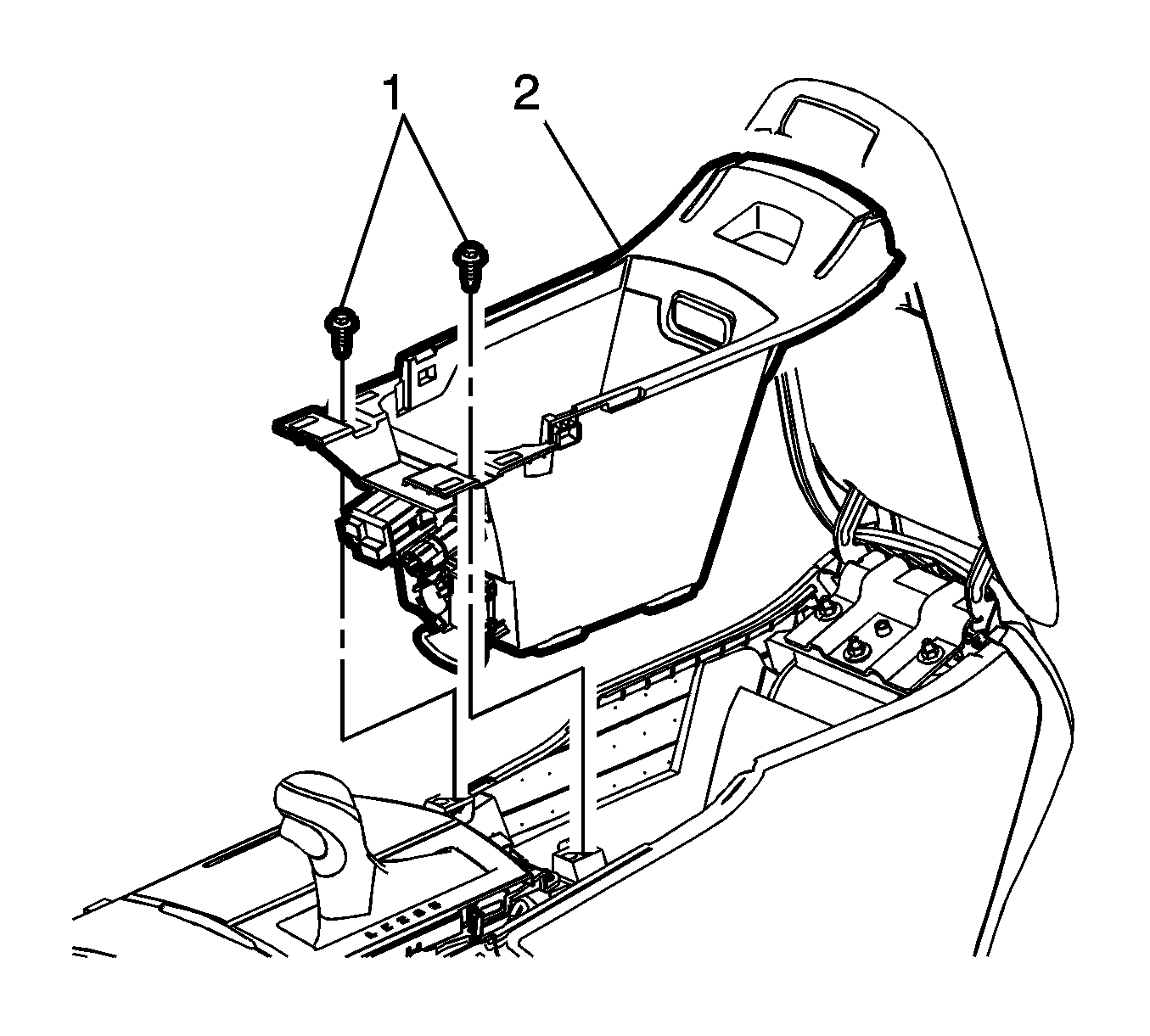

    Fig 1: Front Floor Console Compartment & Bolts
    GM2715426Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Connect the electrical connections and transfer all necessary components.
  2. Install the bolts (1) securing the front floor console compartment (2) to the front floor console assembly.

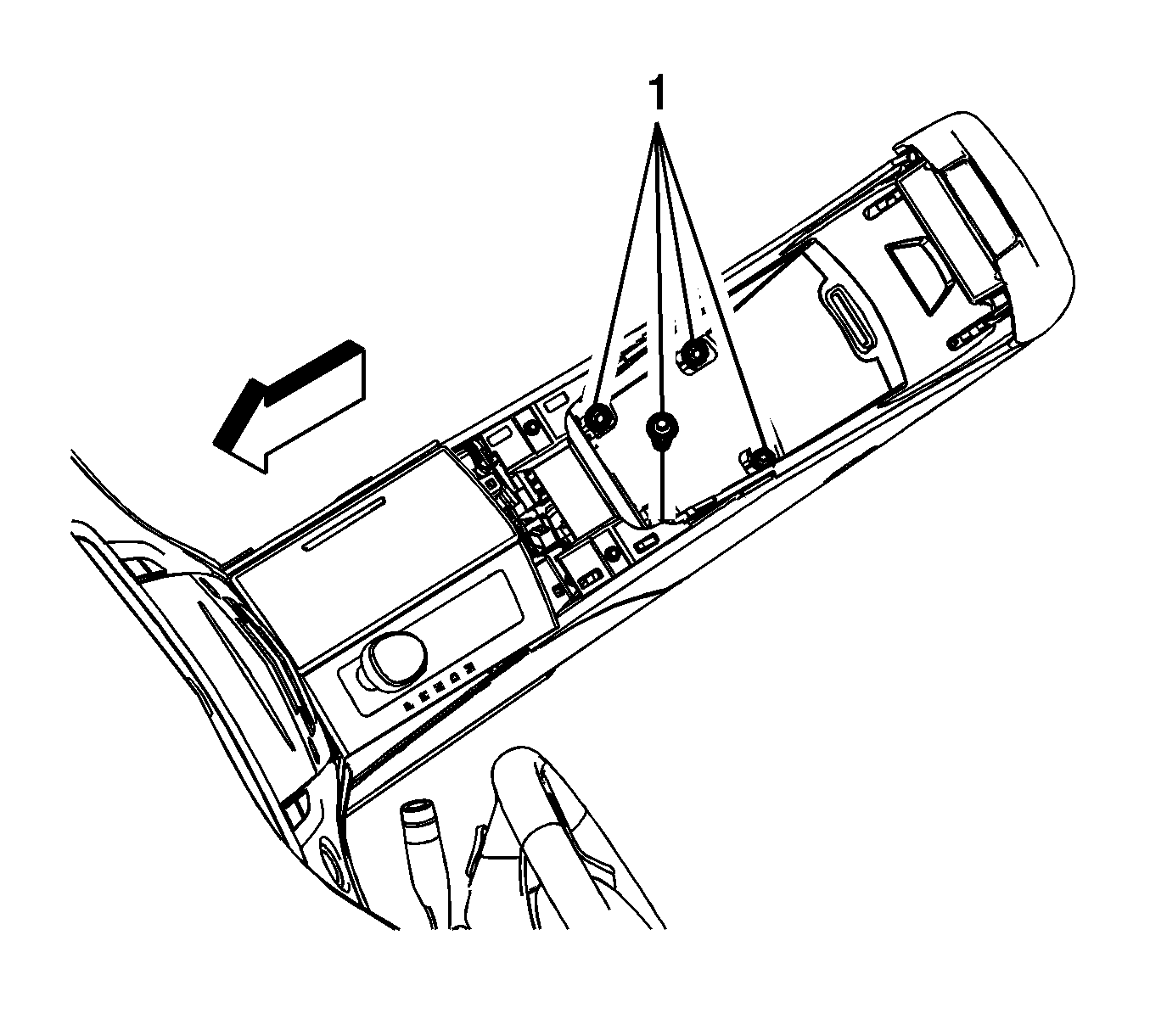

    3. Fig 2: Front Floor Console Compartment Bolts
    GM2715425Courtesy of GENERAL MOTORS COMPANY
  3. Install the bolts (1) securing the front floor console compartment to the front floor console retainer assembly.

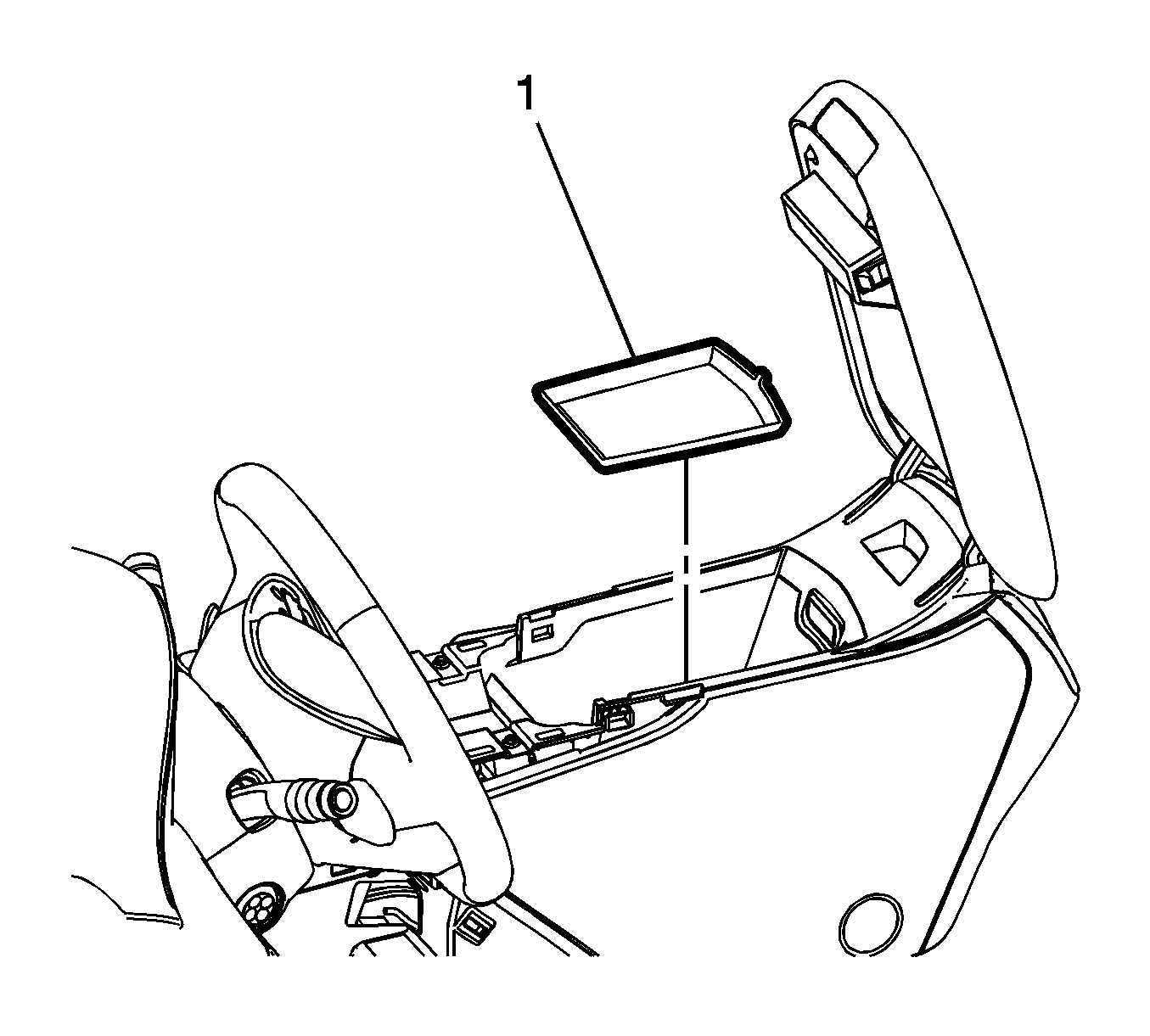

    4. Fig 3: Front Floor Console Compartment Liner
    GM2715424Courtesy of GENERAL MOTORS COMPANY
  4. Install the front floor console compartment liner (1) to the front floor console compartment.
  5. Install the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
