Manifold Absolute Pressure Sensor Replacement (Resonator Outlet LF3)
Manifold Absolute Pressure Sensor Replacement (Resonator Outlet LF3)

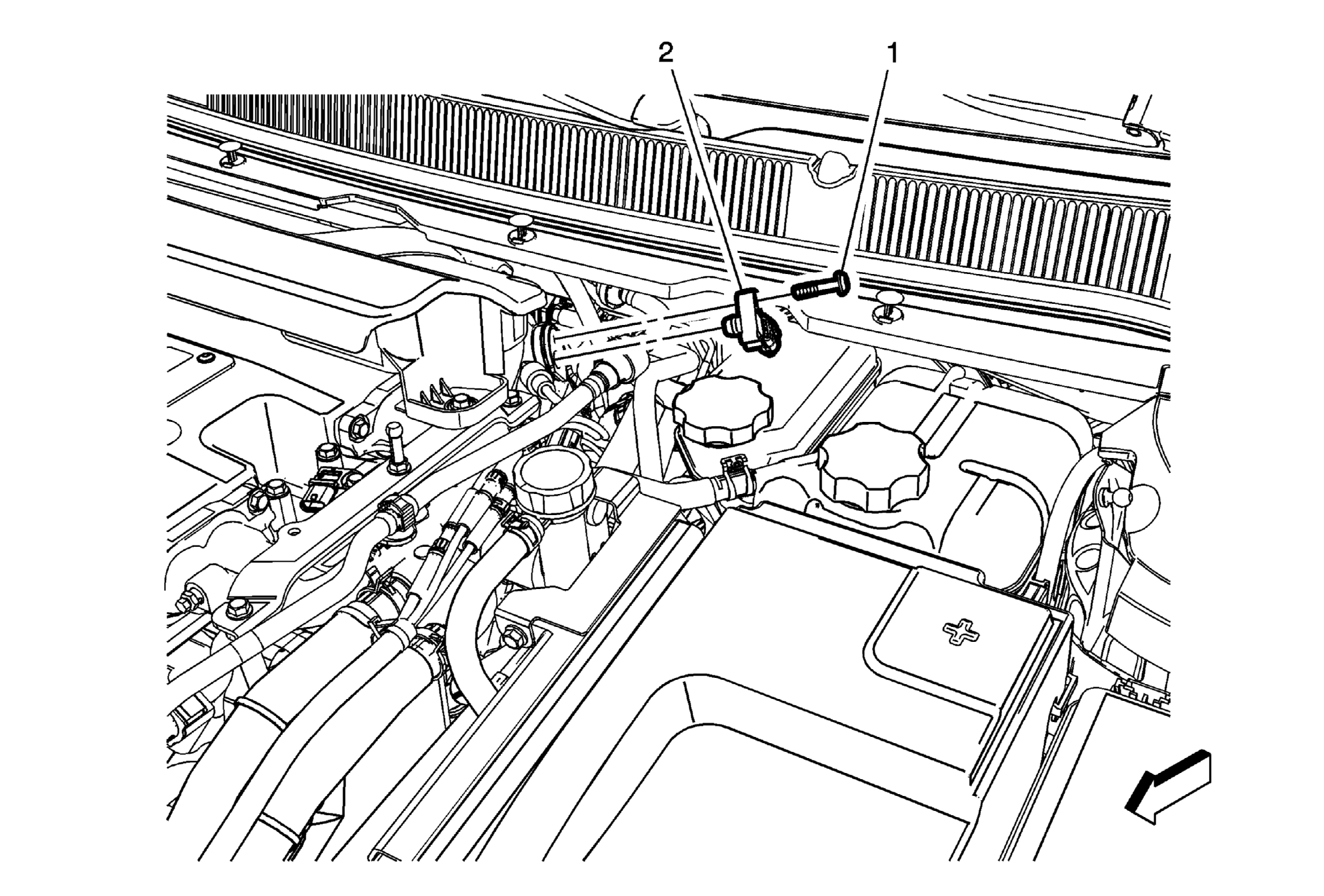

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) . |
|
| 1 | Manifold Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 3 (27 lb in) |
| 2 | Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector. |
