Power, Ground, and Subsystem References (1 of 3)

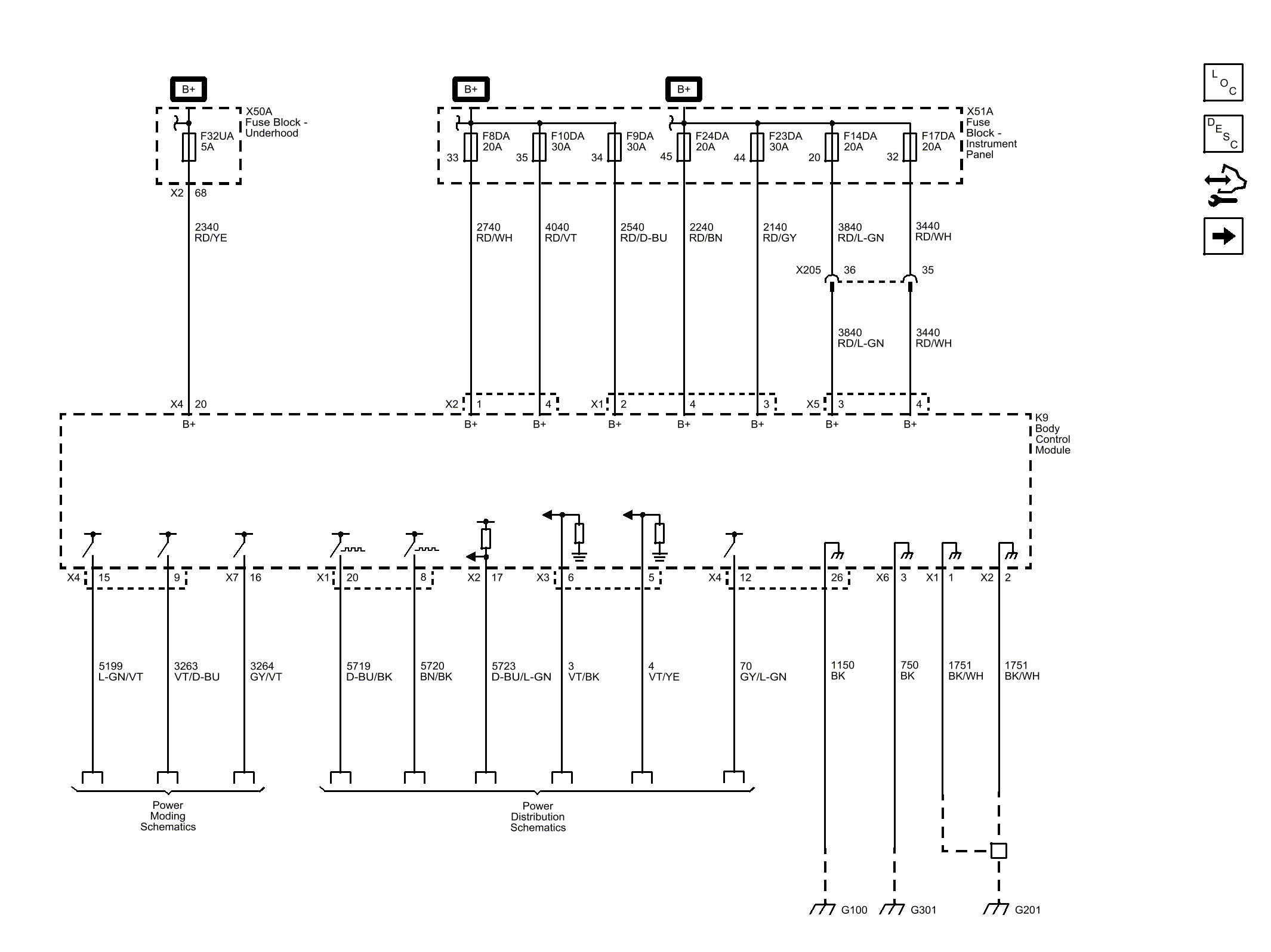

Fig 1: Power, Ground, and Subsystem References Wiring Schematic (1 of 3)

GM3412786

Courtesy of GENERAL MOTORS COMPANY
