Auxiliary Inputs

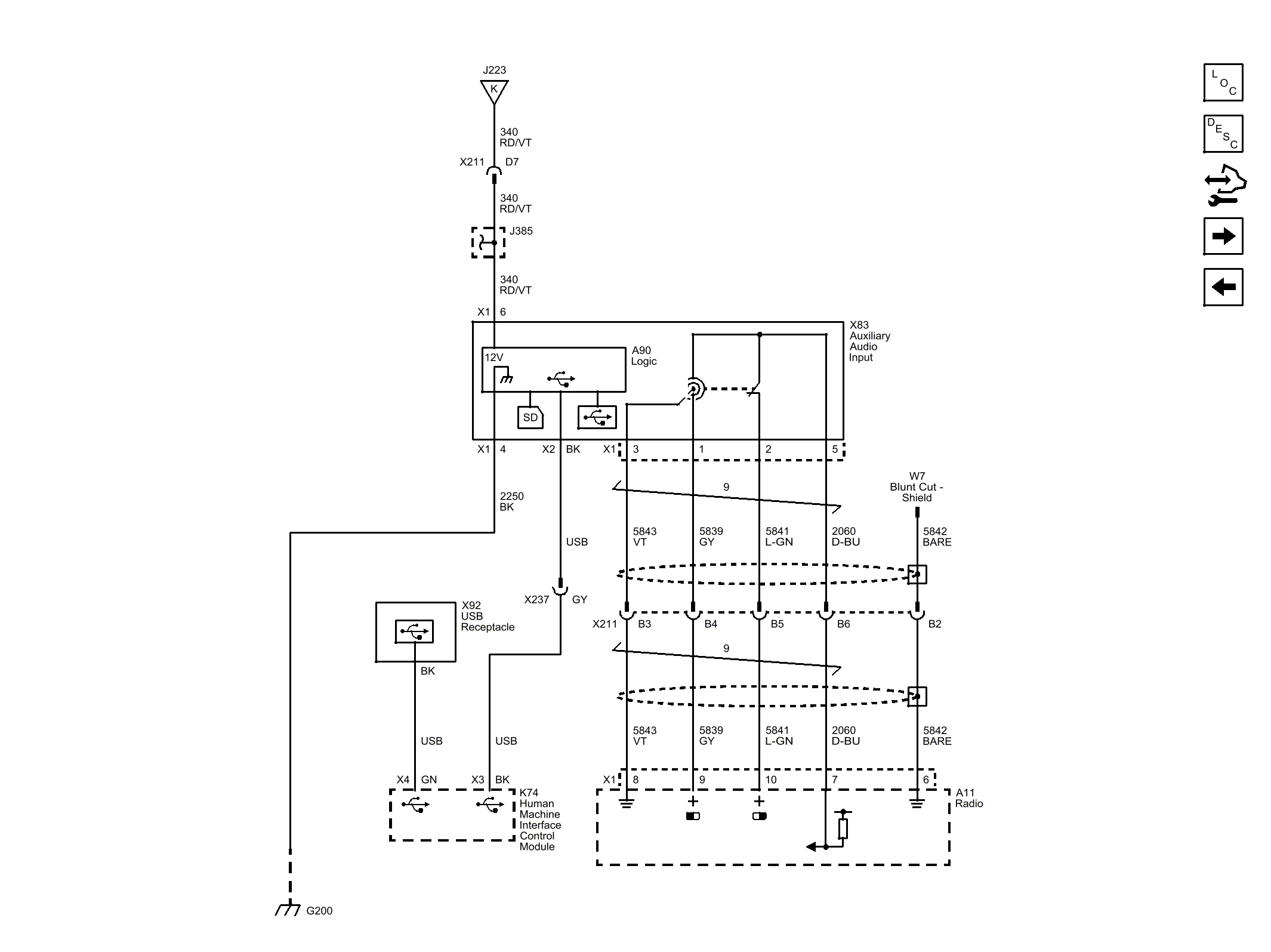

Fig 1: Auxiliary Inputs Wiring Schematic

GM3412680

Courtesy of GENERAL MOTORS COMPANY
