Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References

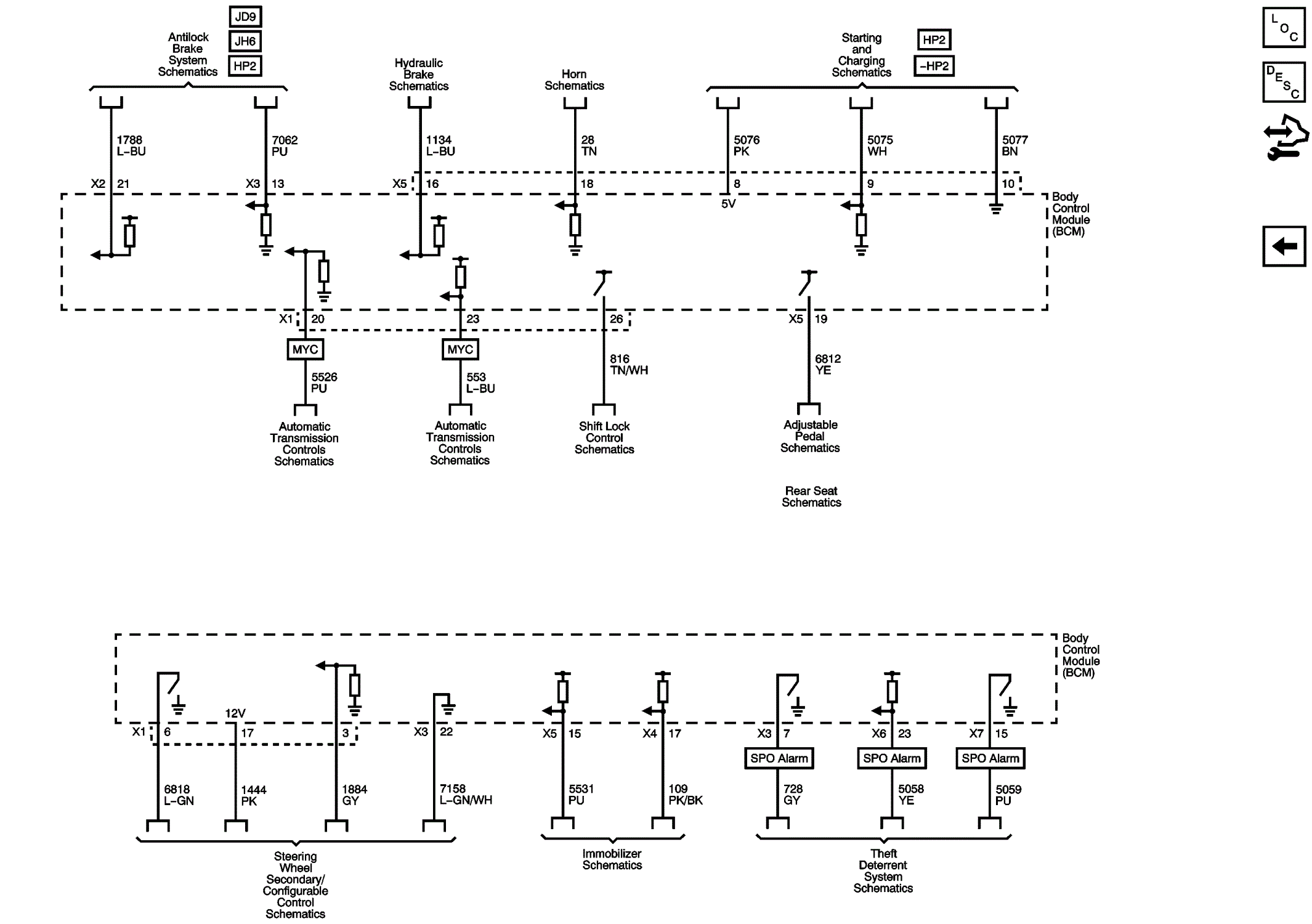

Fig 1: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
