Battery State of Charge

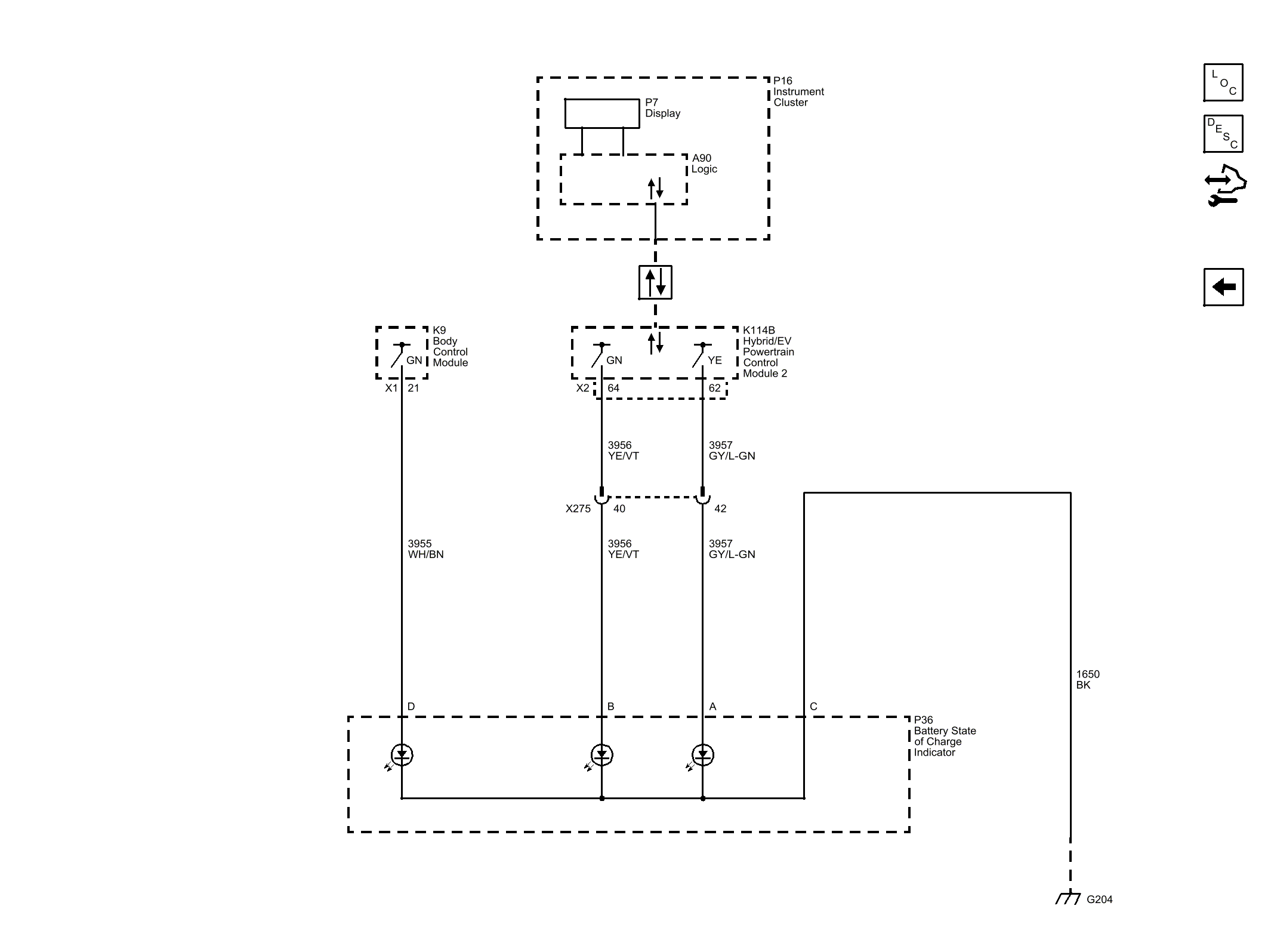

Fig 1: Battery State of Charge

GM3598179

Courtesy of GENERAL MOTORS COMPANY
