Section 86 (Object Detection System And Pedestrian Protection System - Coupe And Wagon)
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Side Object Detection (UFT)
Side Object Detection (UFT)
WARNING:
This page is about a different variant/trim than selected.

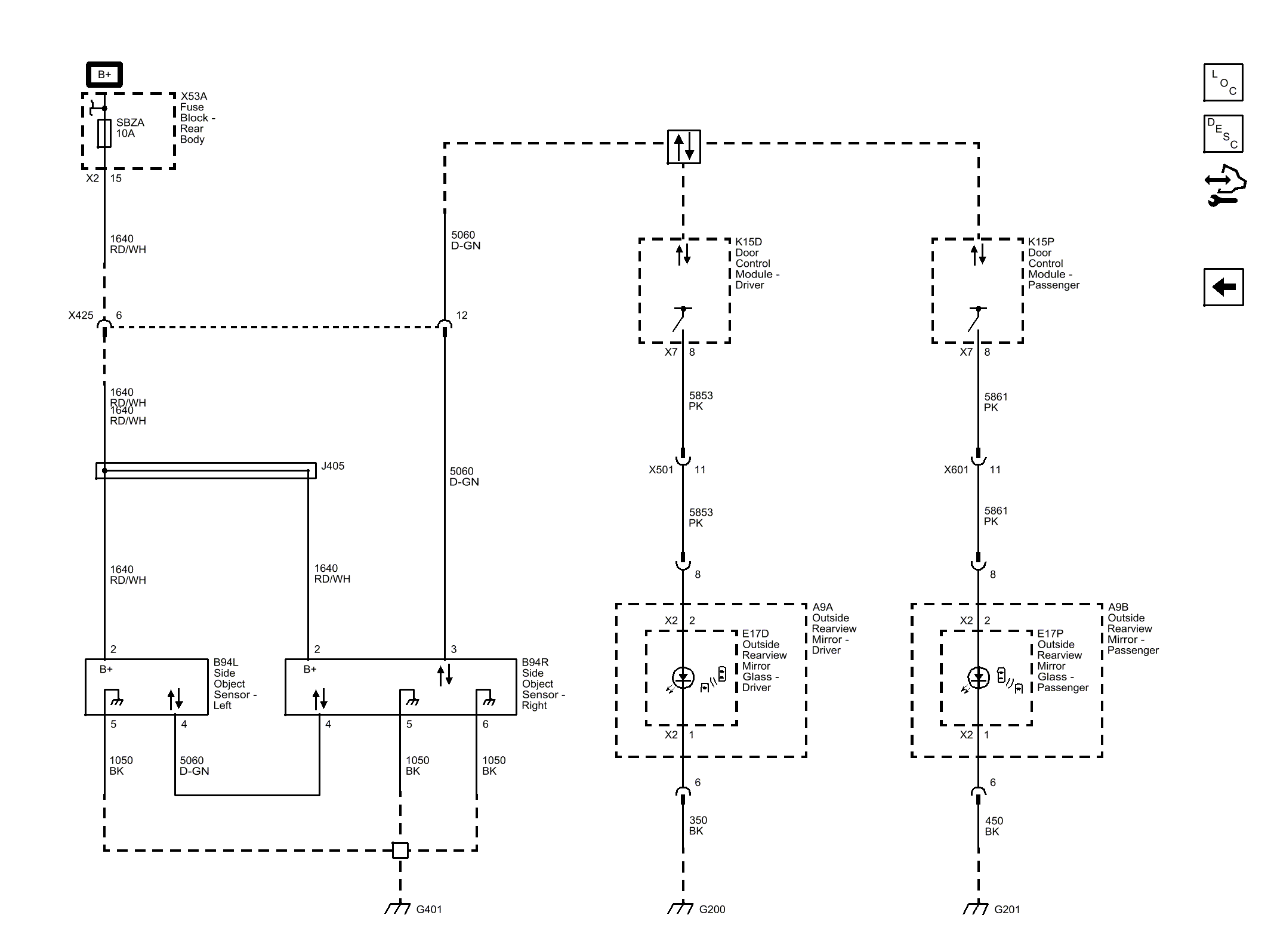

Fig 1: Side Object Detection (UFT)
Courtesy of GENERAL MOTORS COMPANY
