Engine Coolant Temperature Sensor Replacement
Engine Coolant Temperature Sensor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (GE 47716) . |
|

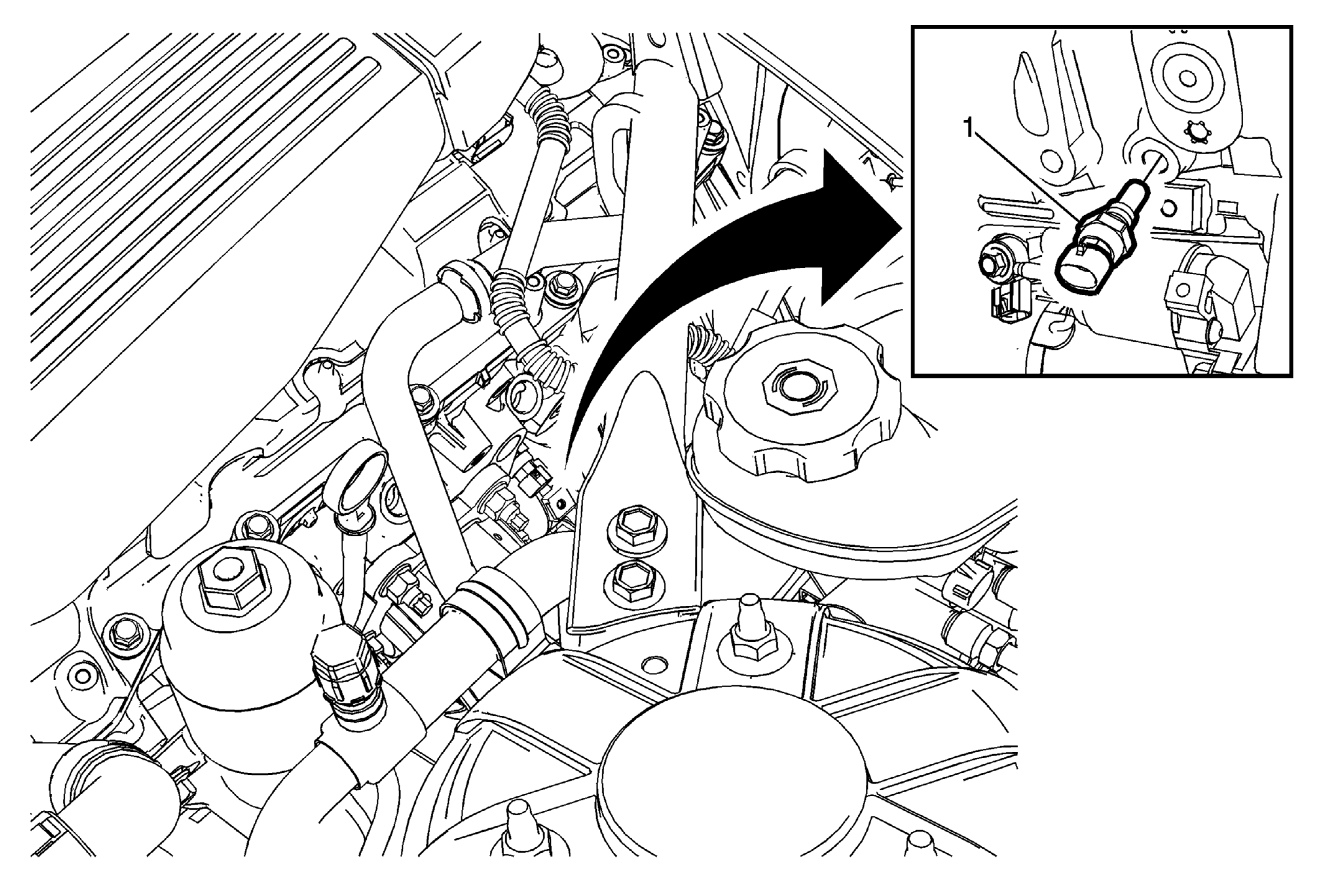

| 1 | Engine Coolant Temperature Sensor
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical wiring harness connector from the engine coolant temperature sensor. Tighten 20 N.m (35 lb ft) |
