Left Rear of Engine Components (LFX)

Items
1: Q29B Secondary Air Injection Solenoid Valve - Bank 2 (LFX with NU6) Q29B Secondary Air Injection Solenoid Valve - Bank 2 (LFX with NU6)
2: T8B Ignition Coil 2 T8B Ignition Coil 2 (LCV or LTG)T8B Ignition Coil 2 (LFX)
3: T8D Ignition Coil 4 T8D Ignition Coil 4 (LCV or LTG)T8D Ignition Coil 4 (LFX)
4: T8F Ignition Coil 6 (LFX) T8F Ignition Coil 6 (LFX)
5: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LCV or LFX)B74 Manifold Absolute Pressure Sensor (LTG)
6: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LCV or LTG)G18 High Pressure Fuel Pump (LFX)
7: B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX) B52C Heated Oxygen Sensor Bank 1 Sensor 1 (LFX)
8: B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFX) B52D Heated Oxygen Sensor Bank 1 Sensor 2 (LFX)
9: B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX) B52F Heated Oxygen Sensor Bank 2 Sensor 2 (LFX)
10: M64 Starter Motor M64 Starter Motor X1 (LCV or LTG)M64 Starter Motor X1 (LFX)M64 Starter Motor X2
11: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX) B52E Heated Oxygen Sensor Bank 2 Sensor 1 (LFX)
12: B68B Knock Sensor 2 B68B Knock Sensor 2 (LCV or LTG)B68B Knock Sensor 2 (LFX)
13: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
14: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LCV or LTG)B34 Engine Coolant Temperature Sensor (LFX)
15: G1 A/C Compressor
16: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

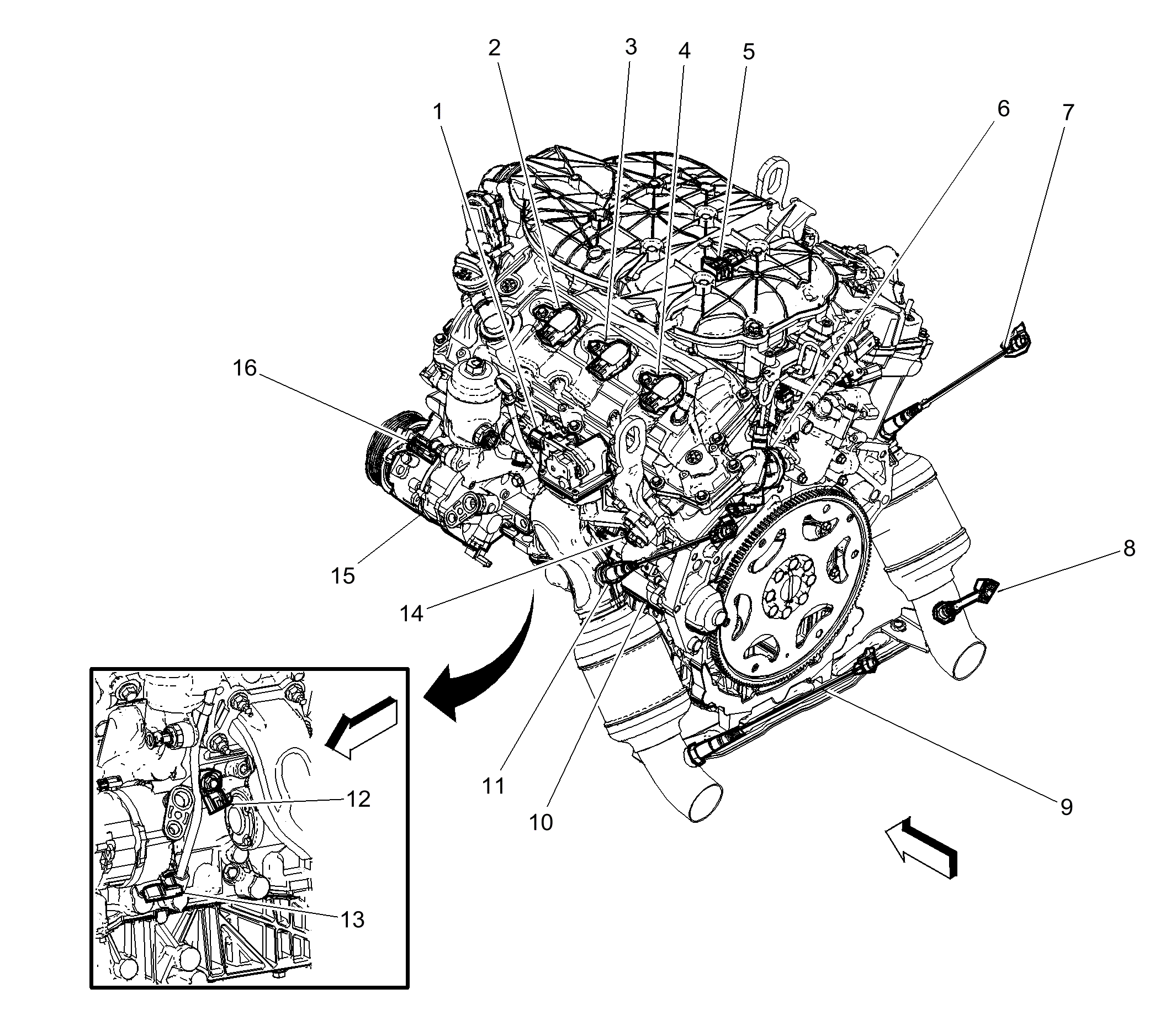

Fig 1: Left Rear of Engine Components (LFX)

Courtesy of GENERAL MOTORS COMPANY
