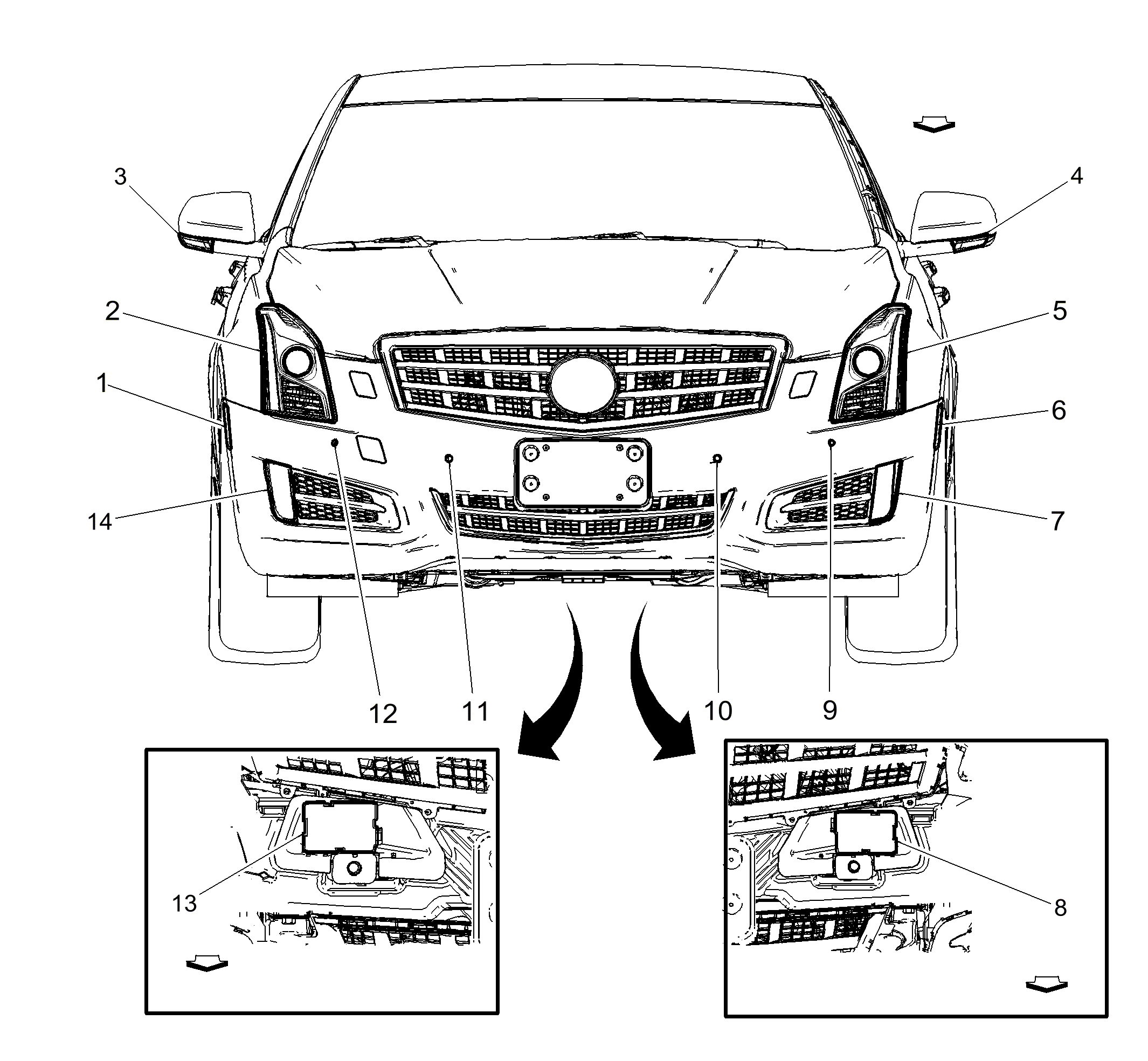

Front of Vehicle Components
Front of Vehicle Components
| Items |
|---|
| 1: E2RF Side Marker Lamp - Right Front (TUJ) E2RF Side Marker Lamp - Right Front (TUJ) |
| 2: E13RA Headlamp Assembly - Right |
| 3: E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right (DR2 or DR4) |
| 4: E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left (DR2 or DR4) |
| 5: E13LA Headlamp Assembly - Left |
| 6: E2LF Side Marker Lamp - Left Front (TUJ) E2LF Side Marker Lamp - Left Front (TUJ) |
| 7: E4AL Park/Daytime Running Lamp - Left Lower ((T4F with TUJ) or (without T62 or TUJ)) E4AL Park/Daytime Running Lamp - Left Lower (T4F with TUJ) or (without T62 or TUJ) |
| 8: B233LF Radar Sensor Module - Short Range Left Front (UGN) B233LF Radar Sensor Module - Short Range Left Front (UGN) |
| 9: B78A Front Object Sensor - Left Outer (UD5) B78A Front Object Sensor - Left Outer (UD5) |
| 10: B78C Front Object Sensor - Left Middle (UD5) B78C Front Object Sensor - Left Middle (UD5) |
| 11: B78D Front Object Sensor - Right Middle (UD5) B78D Front Object Sensor - Right Middle (UD5) |
| 12: B78B Front Object Sensor - Right Outer (UD5) B78B Front Object Sensor - Right Outer (UD5) |
| 13: B233RF Radar Sensor Module - Short Range Right Front (UGN) B233RF Radar Sensor Module Short Range Right Front (UGN) |
| 14: E4AM Park/Daytime Running Lamp - Right Lower ((T4F with TUJ) or (without T62 or TUJ)) E4AM Park/Daytime Running Lamp - Right Lower (T4F with TUJ) or (without T62 or TUJ) |
