Outside Rearview Mirror Folding Control Module Replacement
WARNING: This page is about a different car, the 2014 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
Outside Rearview Mirror Folding Control Module Replacement

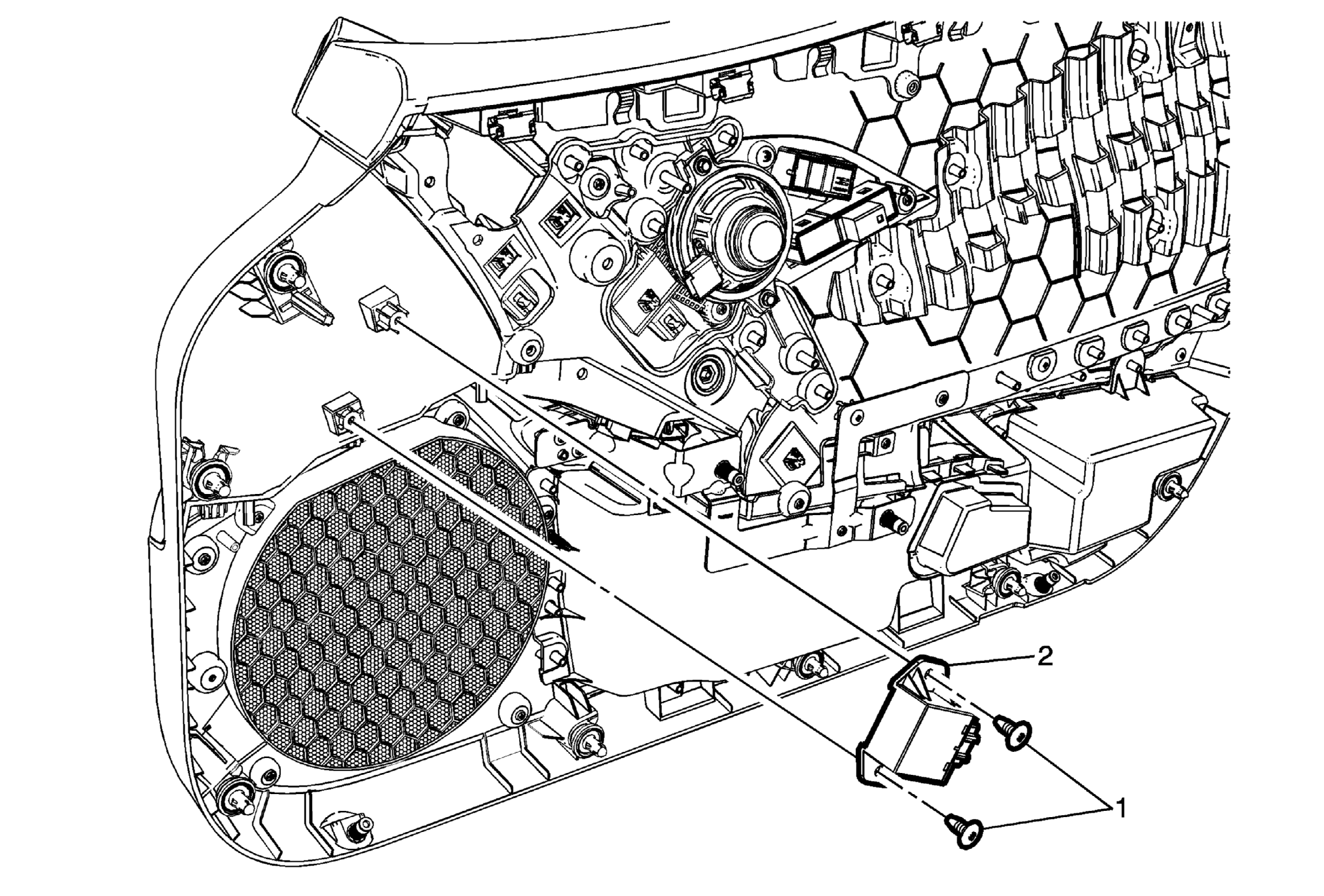

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Driver Side) , Front Side Door Trim Replacement (Passenger Side) . |
|
| 1 | Outside Rearview Mirror Folding Control Module Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Outside Rearview Mirror Folding Control Module Procedure Disconnect electrical connector. |
