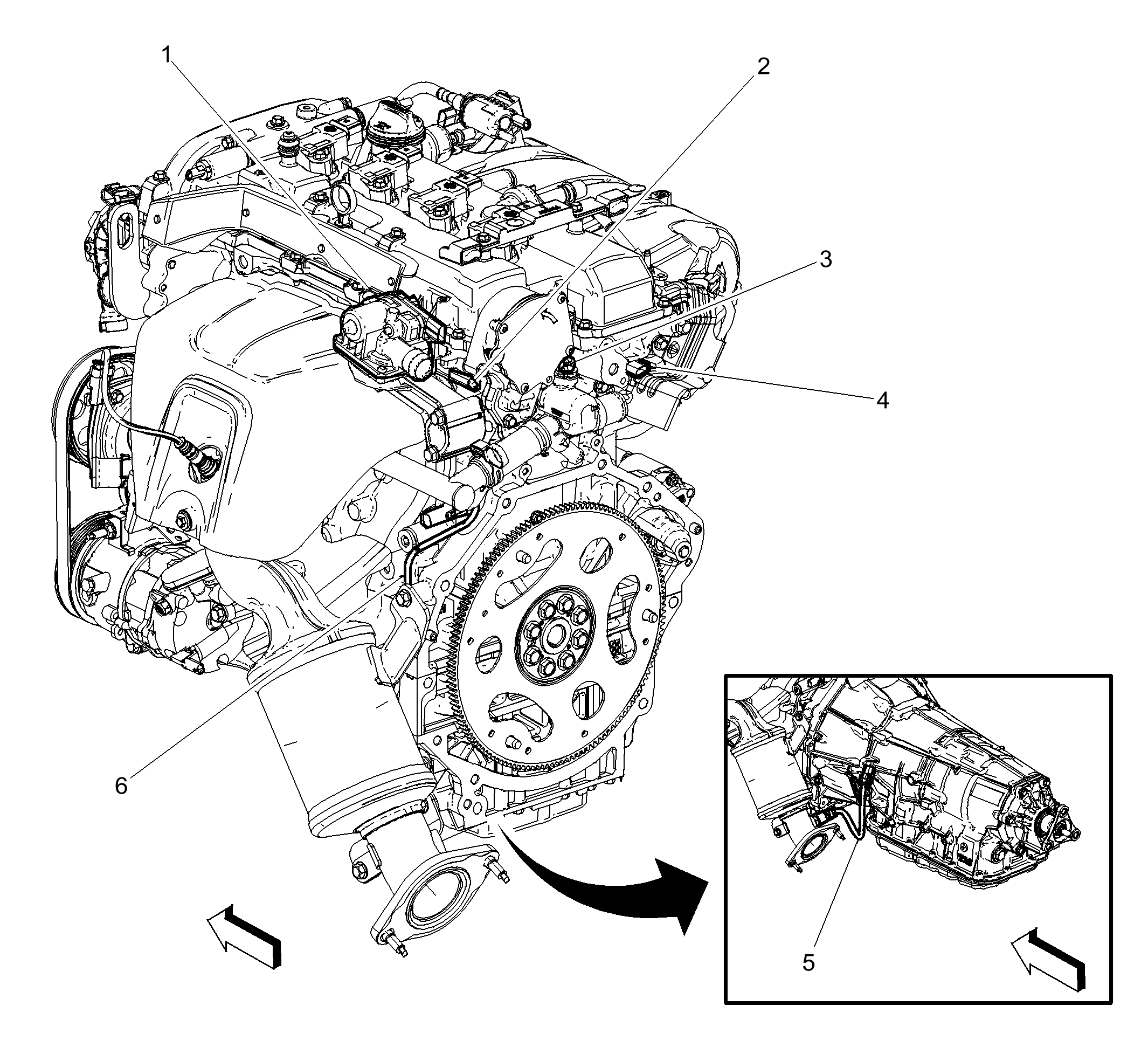

Left Rear of Engine Components (LCV)
Left Rear of Engine Components (LCV)
| Items |
|---|
| 1: Q29 Secondary Air Injection Solenoid Valve (LCV with NU6) Q29 Secondary Air Injection Solenoid Valve (LCV with NU6) |
| 2: B23E Camshaft Position Sensor - Exhaust (LCV or LTG) B23E Camshaft Position Sensor - Exhaust (LCV or LTG) |
| 3: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LCV or LTG)B34 Engine Coolant Temperature Sensor (LFX) |
| 4: B23F Camshaft Position Sensor - Intake (LCV or LTG) B23F Camshaft Position Sensor - Intake (LCV or LTG) |
| 5: B52B Heated Oxygen Sensor 2 (LCV or LTG) B52B Heated Oxygen Sensor 2 (LCV or LTG) |
| 6: Q44 Engine Oil Pressure Control Solenoid Valve (LCV or LTG) Q44 Engine Oil Pressure Control Solenoid Valve (LCV or LTG) |
