Keyless Entry - Passive (ATH) and Keyless Start

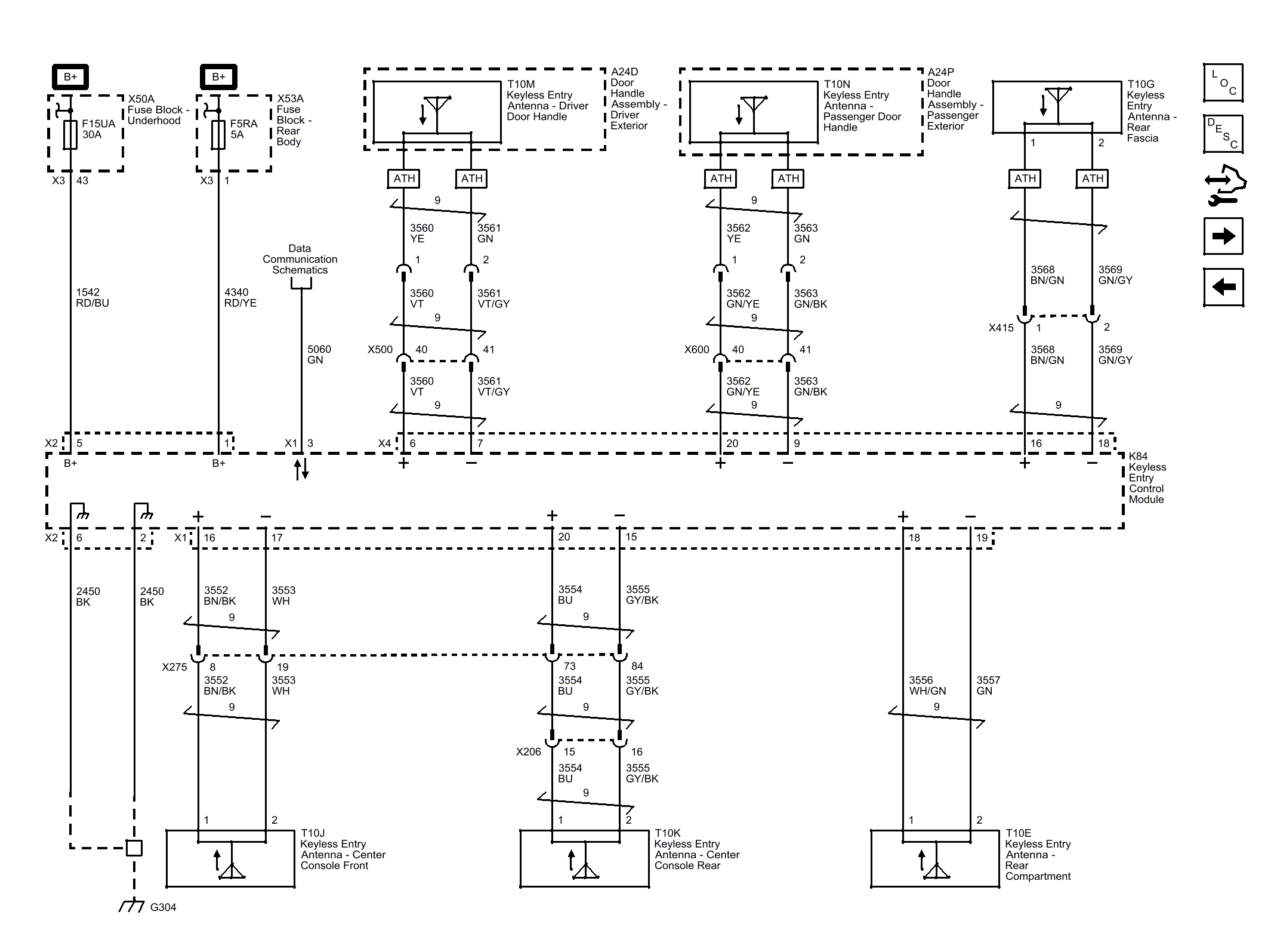

Fig 1: Keyless Entry Wiring Schematic - Passive (ATH) & Keyless Start

GM3293082

Courtesy of GENERAL MOTORS COMPANY
