Rear Cross Traffic Alert (UFG) and Side Object Detection (UFT)

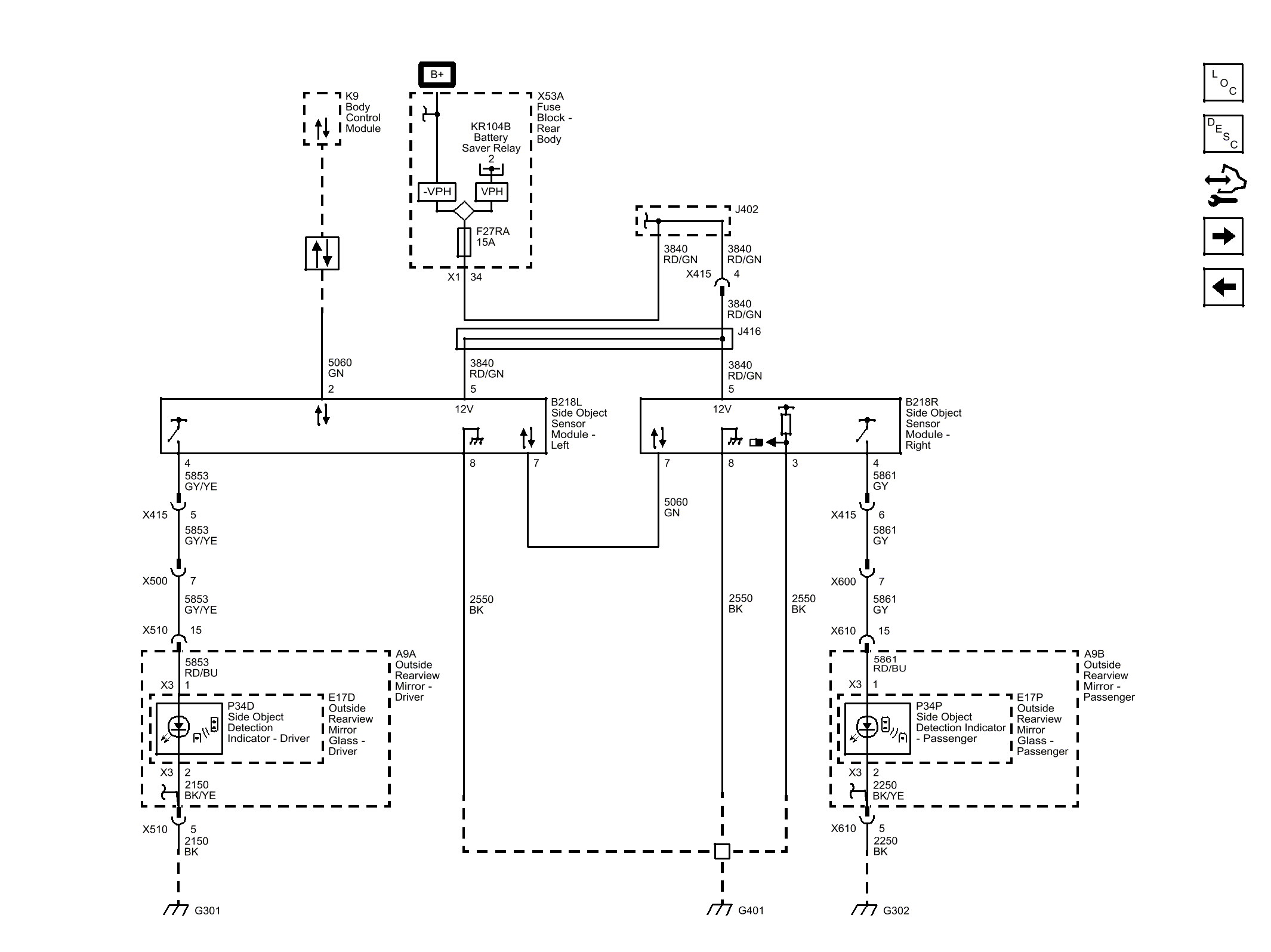

Fig 1: Rear Cross Traffic Alert (UFG) and Side Object Detection (UFT) Wiring Schematic

GM3293076

Courtesy of GENERAL MOTORS COMPANY
