Pedestrian Impact Detection System (B3T)

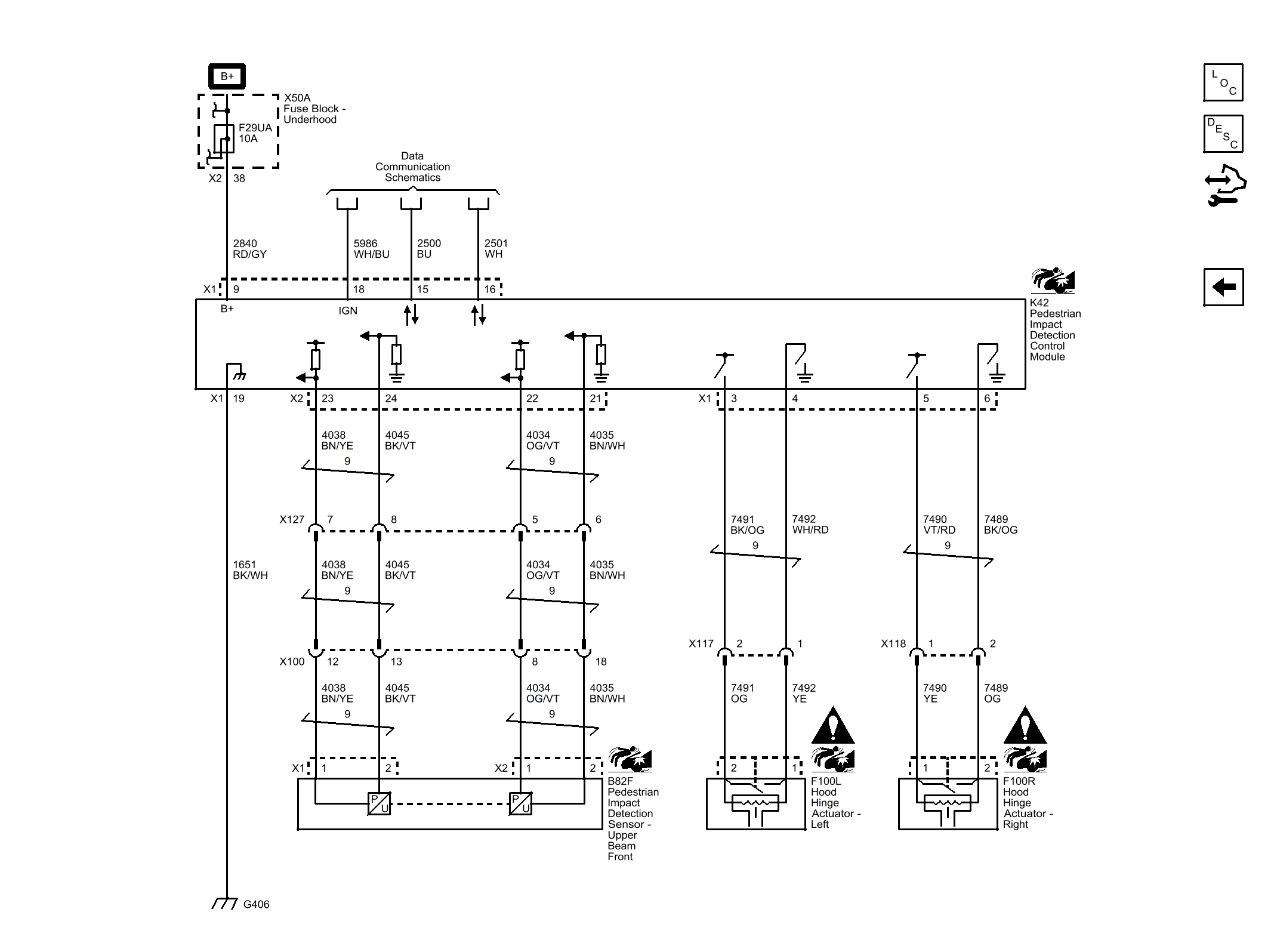

Fig 1: Pedestrian Impact Detection System Wiring Schematic (B3T)

GM3293080

Courtesy of GENERAL MOTORS COMPANY
