Collision Avoidance - Modules Power, Ground and Controls (UGN or UVZ)

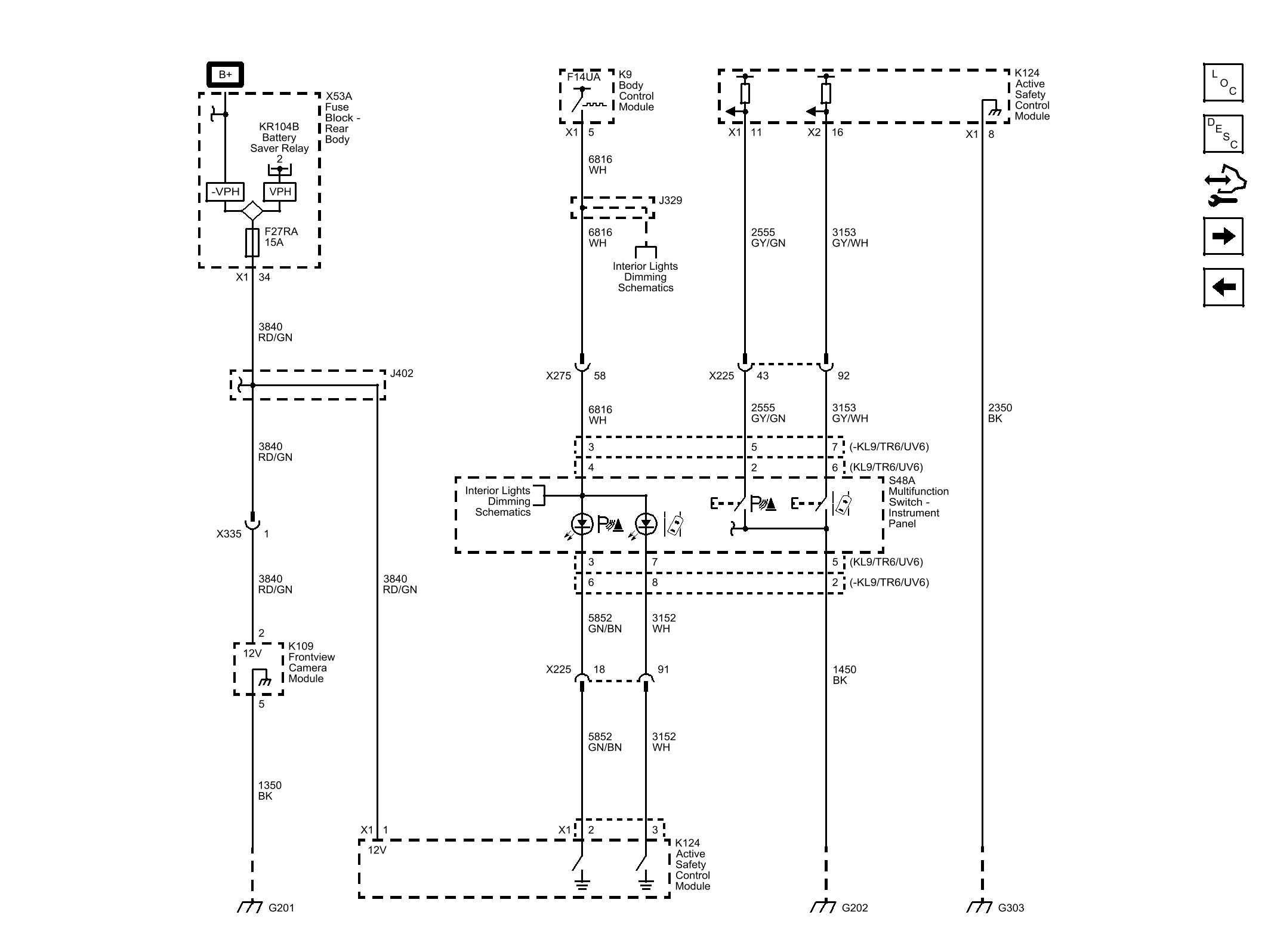

Fig 1: Collision Avoidance - Modules Power, Ground and Controls Wiring Schematic (UGN or UVZ)

GM3293077

Courtesy of GENERAL MOTORS COMPANY
