Communications Enable (1 of 2)

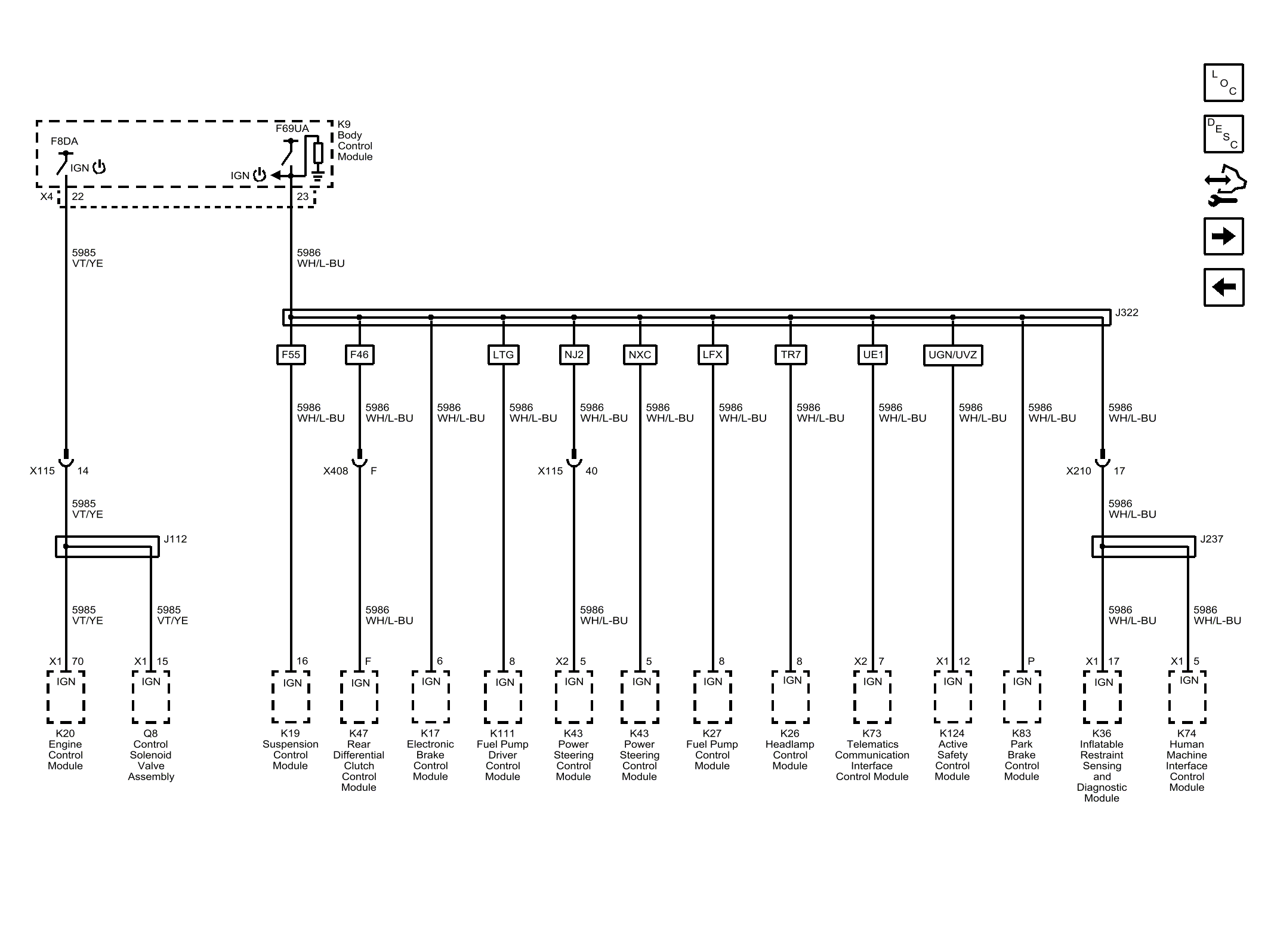

Fig 1: Communications Enable Wiring Schematic (1 of 2)

GM2762298

Courtesy of GENERAL MOTORS COMPANY
