Communication Enable (2 of 2)

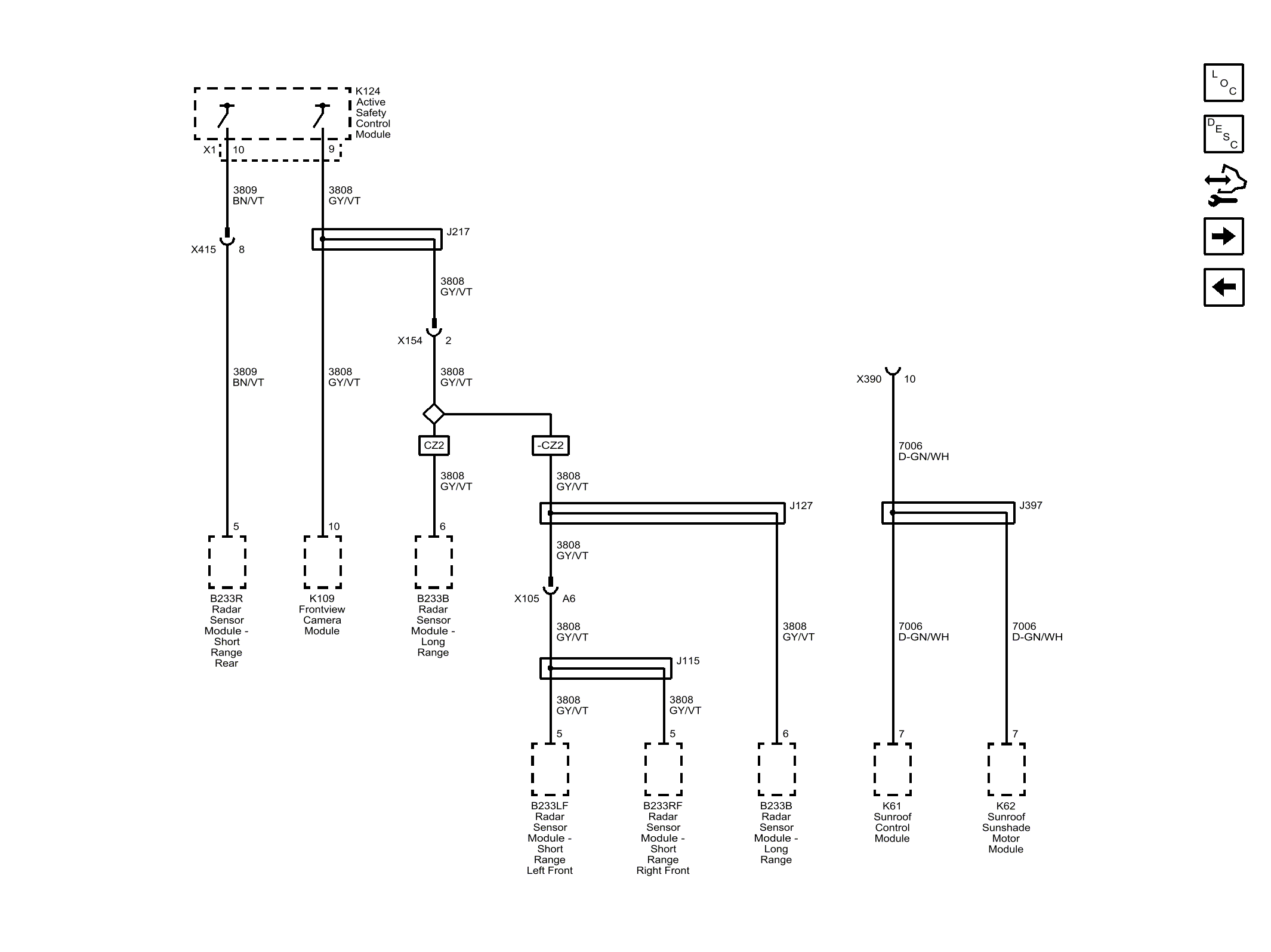

Fig 1: Communication Enable Wiring Schematic (2 of 2)

GM2816106

Courtesy of GENERAL MOTORS COMPANY
