Installation Procedure

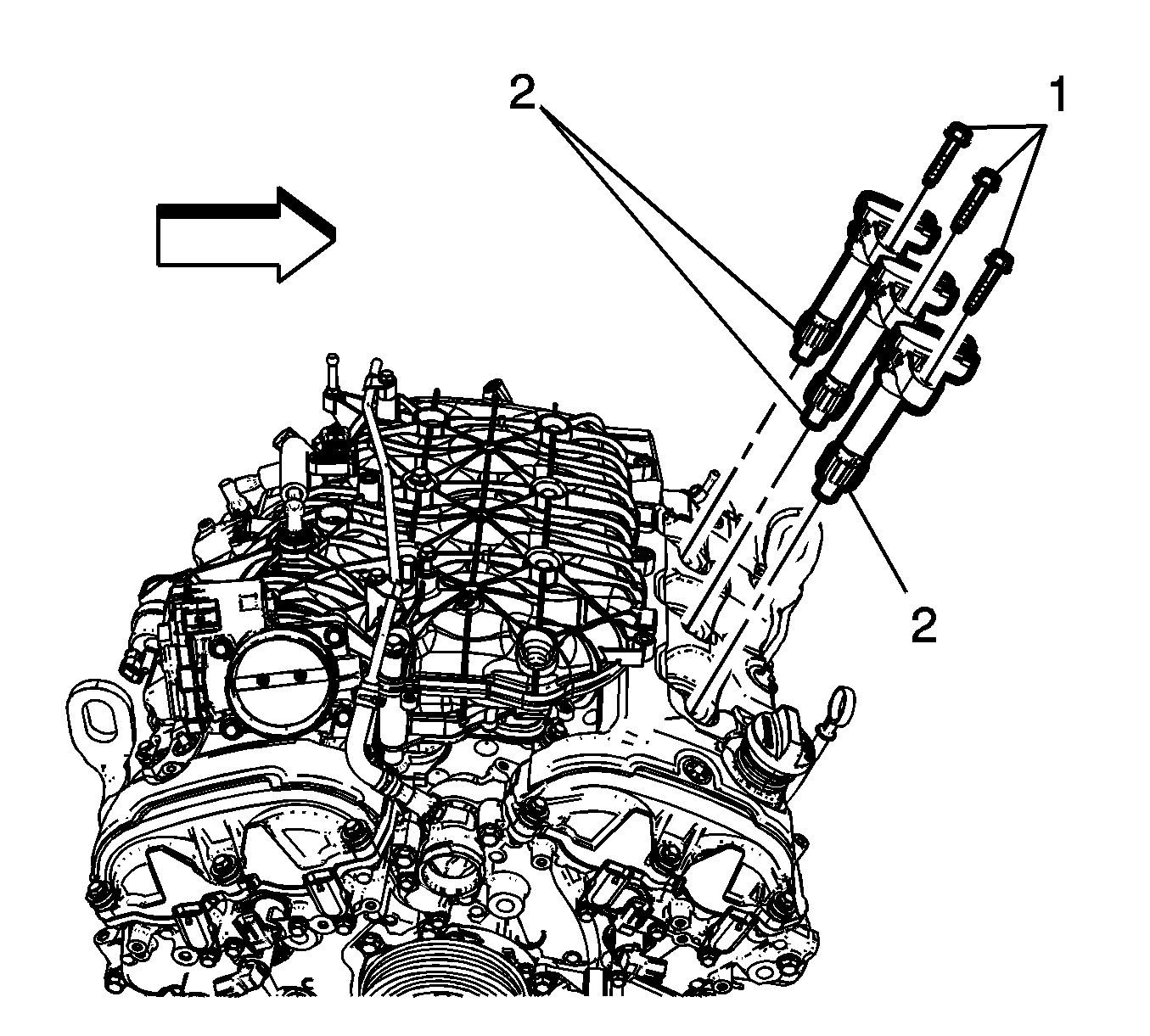

    Fig 1: Ignition Coil & Bolts - Bank 2
    GM2754750Courtesy of GENERAL MOTORS COMPANY
  1. Install the ignition coil(s) (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolt(s) (1).

    Tighten

    Tighten the bolt(s) to 10 N.m (89 lb in).

    3. Fig 2: Engine Wiring Harness Ignition Coil Electrical Connectors - Bank 2
    GM2754744Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector(s) (5) to the ignition coil(s) (4).
  4. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
