Installation Procedure

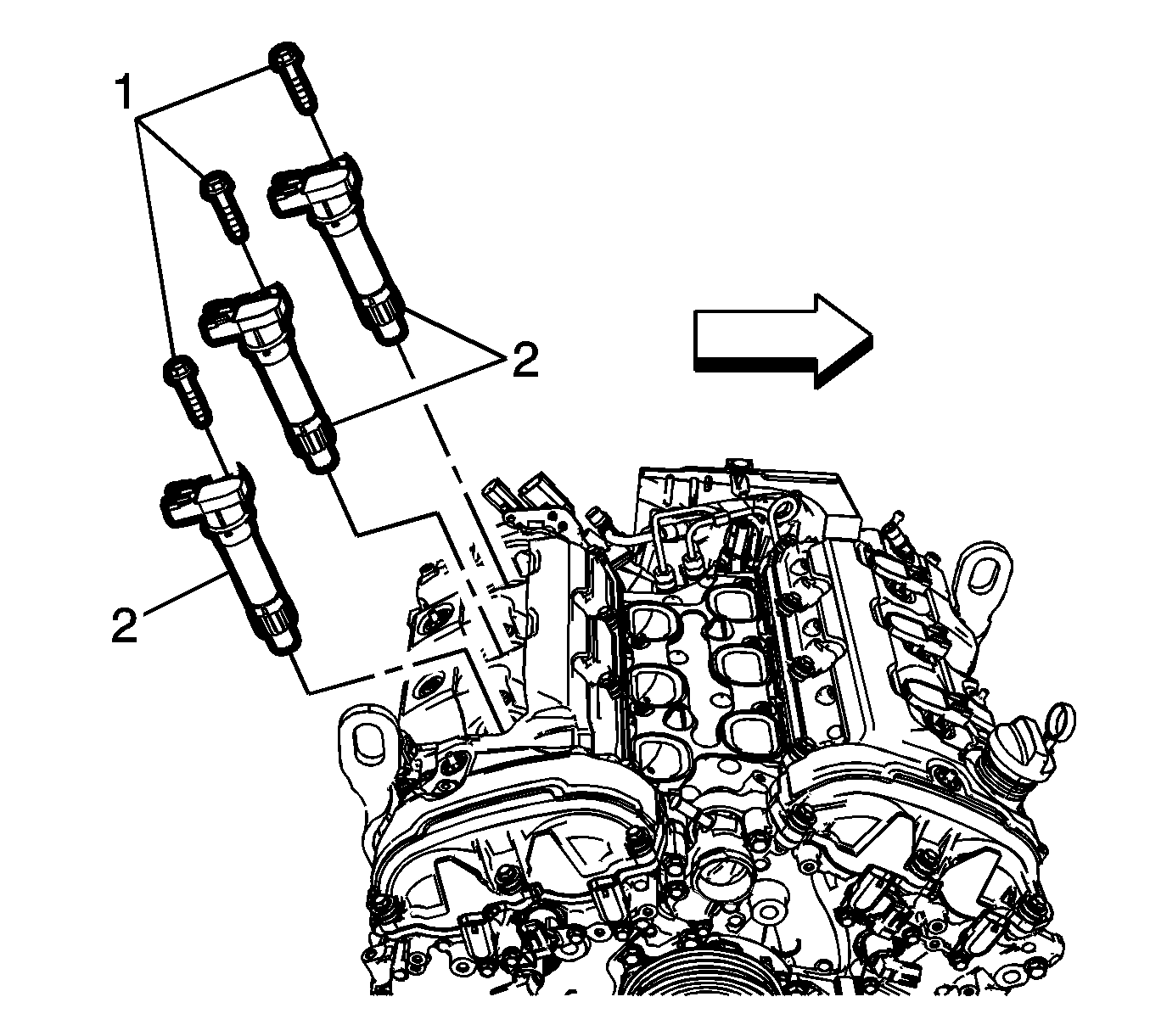

    Fig 1: Ignition Coil & Bolts - Bank 1
    GM2754749Courtesy of GENERAL MOTORS COMPANY
  1. Install the ignition coil(s) (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolt(s) (1).

    Tighten

    Tighten the bolt(s) to 10 N.m (89 lb in).

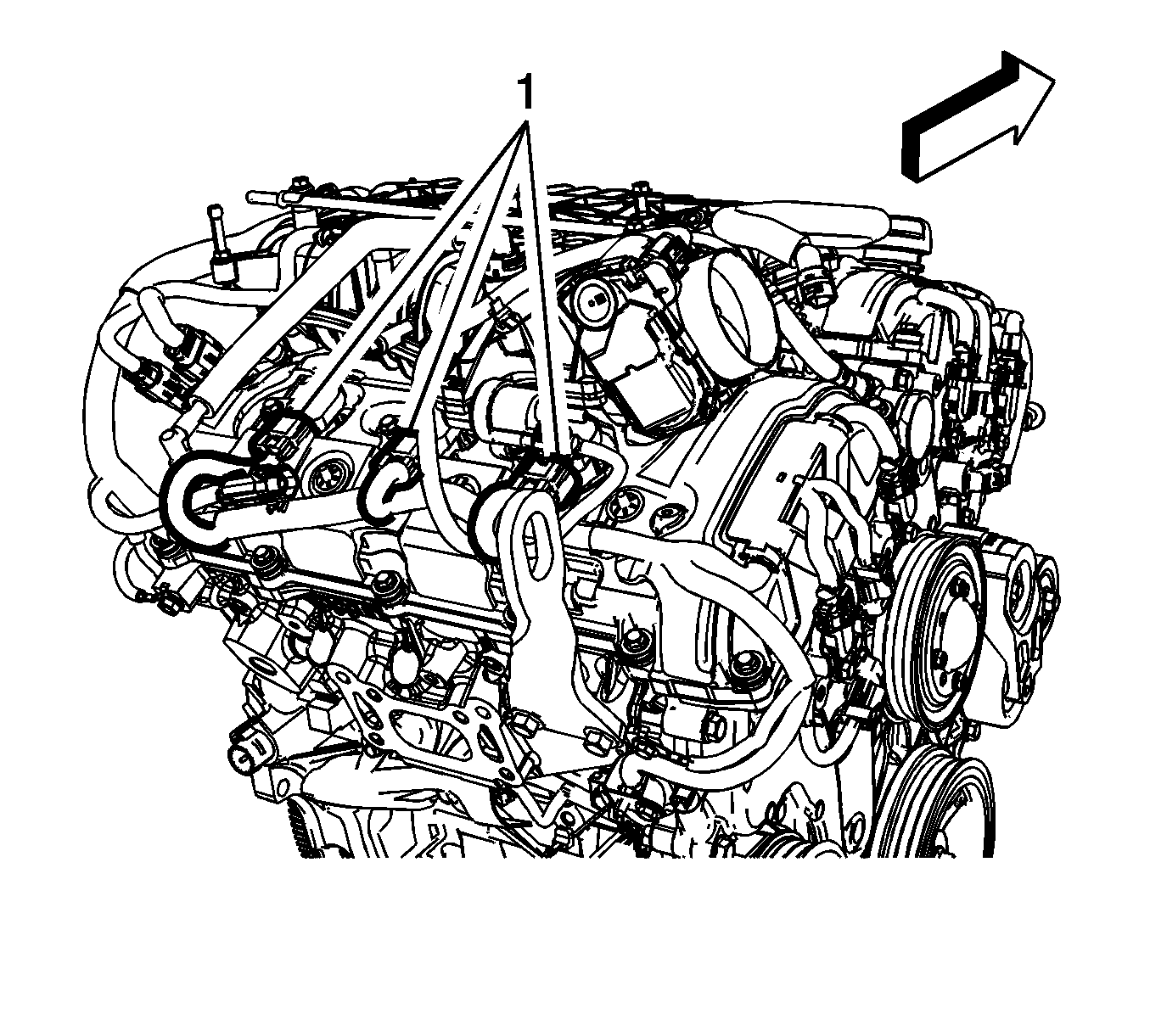

    3. Fig 2: Engine Wiring Harness Ignition Coil Electrical Connectors - Bank 1
    GM2754747Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s).
  4. Install the intake manifold. Refer to Intake Manifold Replacement .
