Air Cleaner Outlet Duct Replacement
Air Cleaner Outlet Duct Replacement

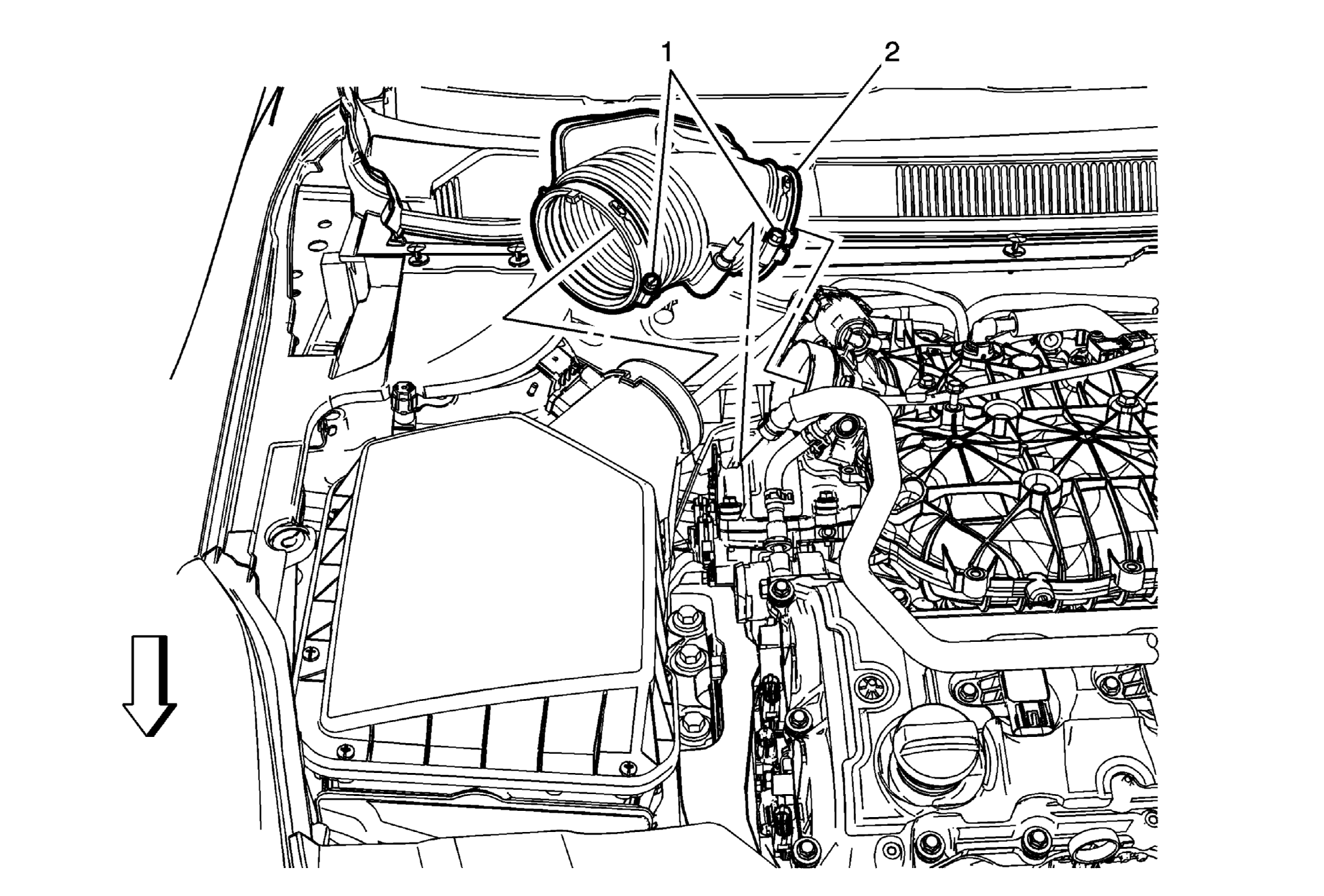

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Air Cleaner Outlet Duct Clamps (Qty 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Air Cleaner Outlet Duct Procedure Disconnect the PCV tube from the air cleaner outlet duct. |
