Module Power, Ground, Subsystem References and Brake Applied Signal

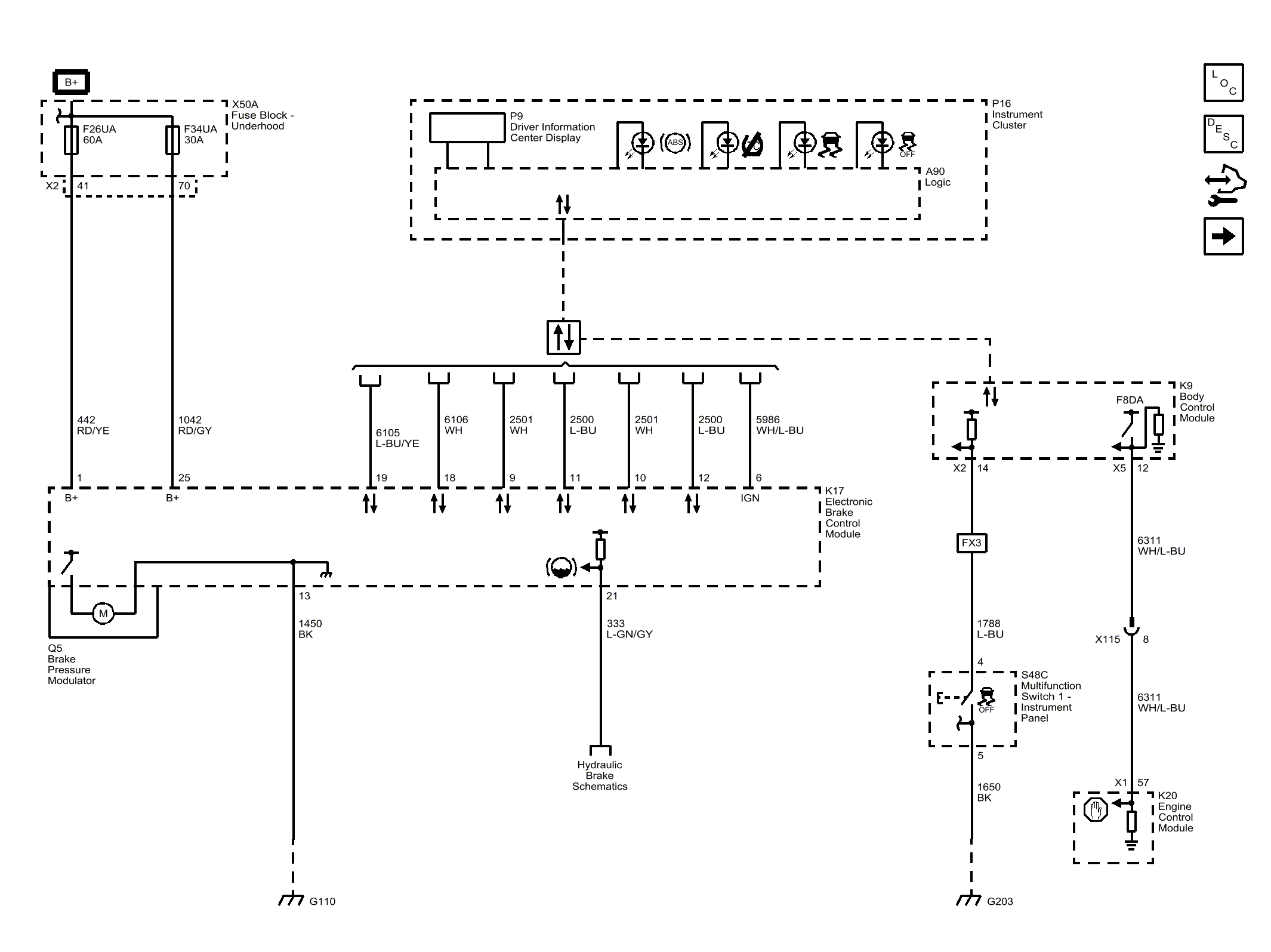

Fig 1: Module Power, Ground, Subsystem References and Brake Applied Signal Wiring Schematic

GM2767976

Courtesy of GENERAL MOTORS COMPANY
