Serial Data, Radar Sensors and Control (UGN/UVZ)

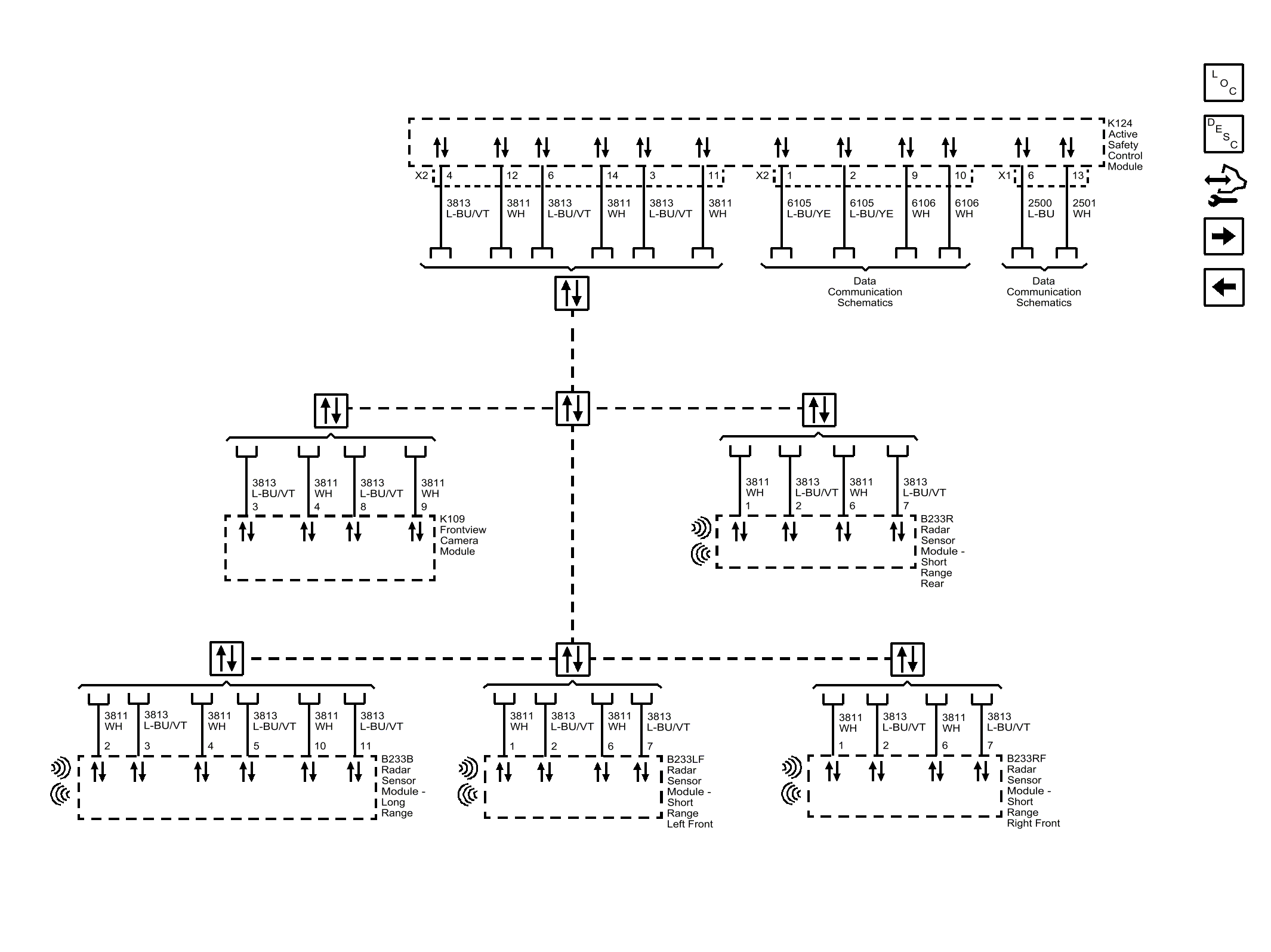

Fig 1: Serial Data, Radar Sensors and Control Wiring Schematic (UGN/UVZ)

GM2771088

Courtesy of GENERAL MOTORS COMPANY
