Secondary and Configurable Controls

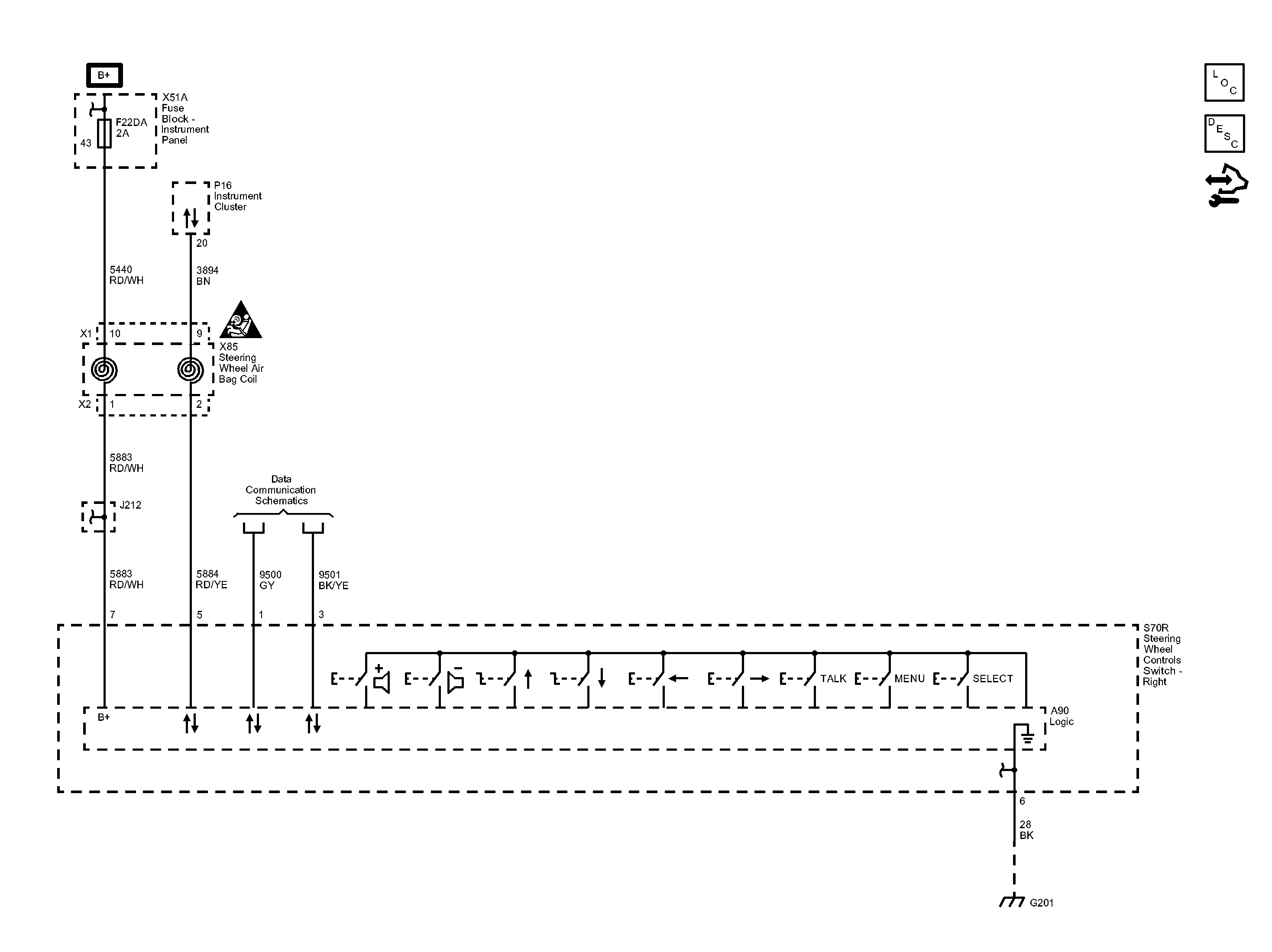

Fig 1: Secondary and Configurable Controls Wiring Schematic

GM2837883

Courtesy of GENERAL MOTORS COMPANY
