Auxiliary Inputs

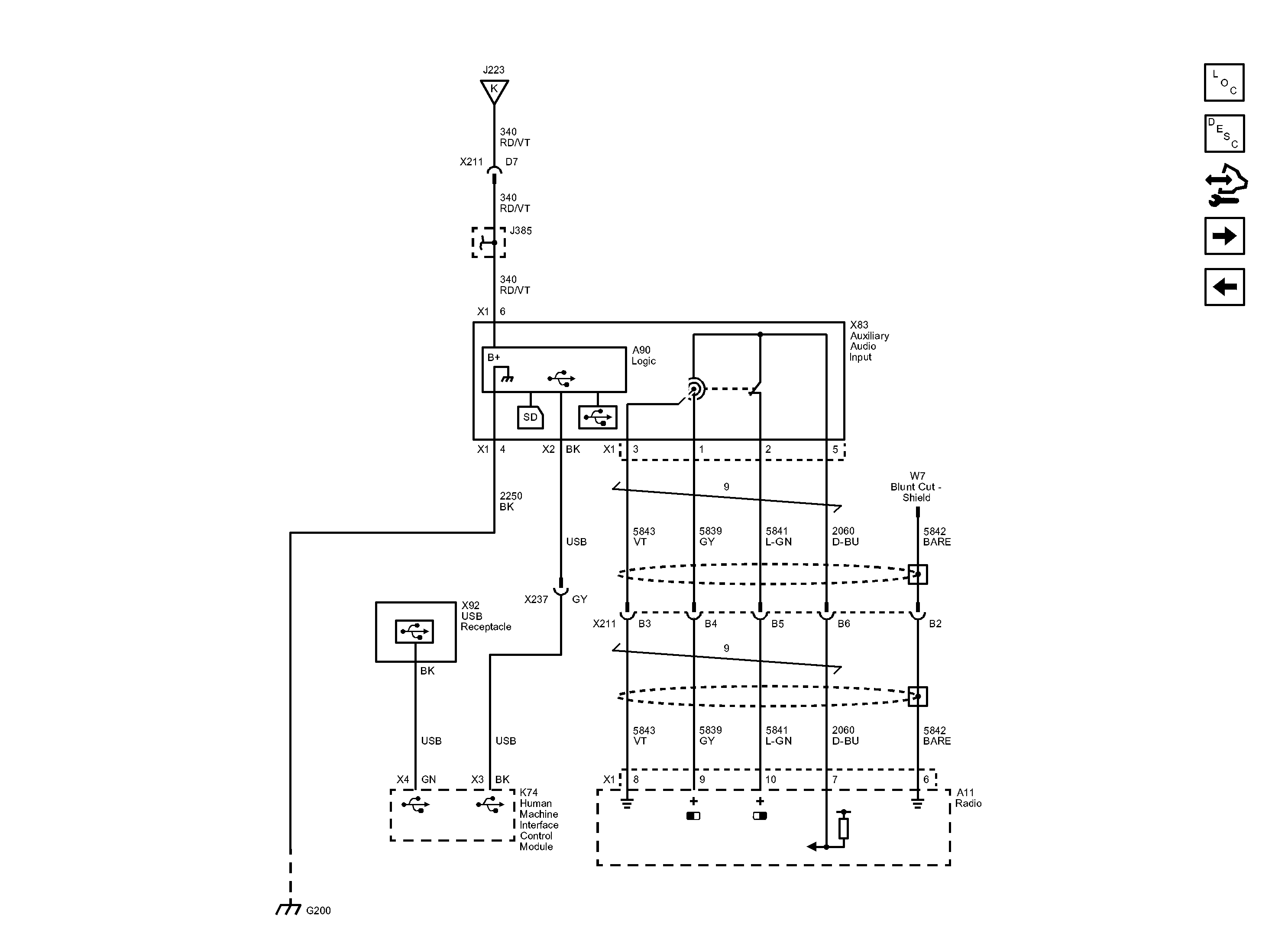

Fig 1: Auxiliary Inputs Wiring Schematic

GM2837828

Courtesy of GENERAL MOTORS COMPANY
