Module Power, Ground, Serial Data, and Memory Switch

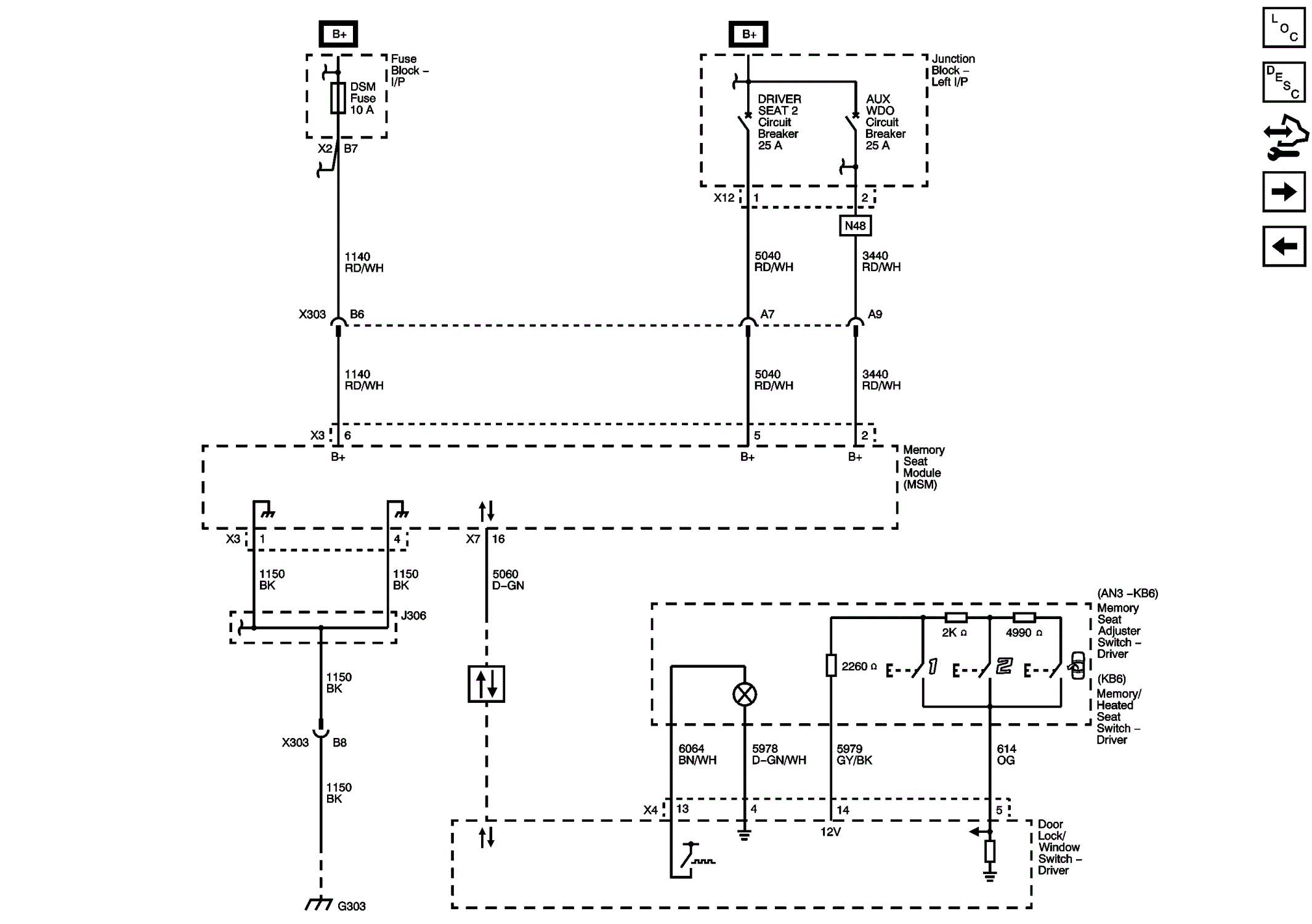

Fig 1: Module Power, Ground, Serial Data, and Memory Switch Wiring Schematic

GM2761693

Courtesy of GENERAL MOTORS COMPANY
