Schematic Wiring Diagrams
>>
OnStar Wiring Schematics
>>
Module Power, Ground, and Serial Data
Module Power, Ground, and Serial Data

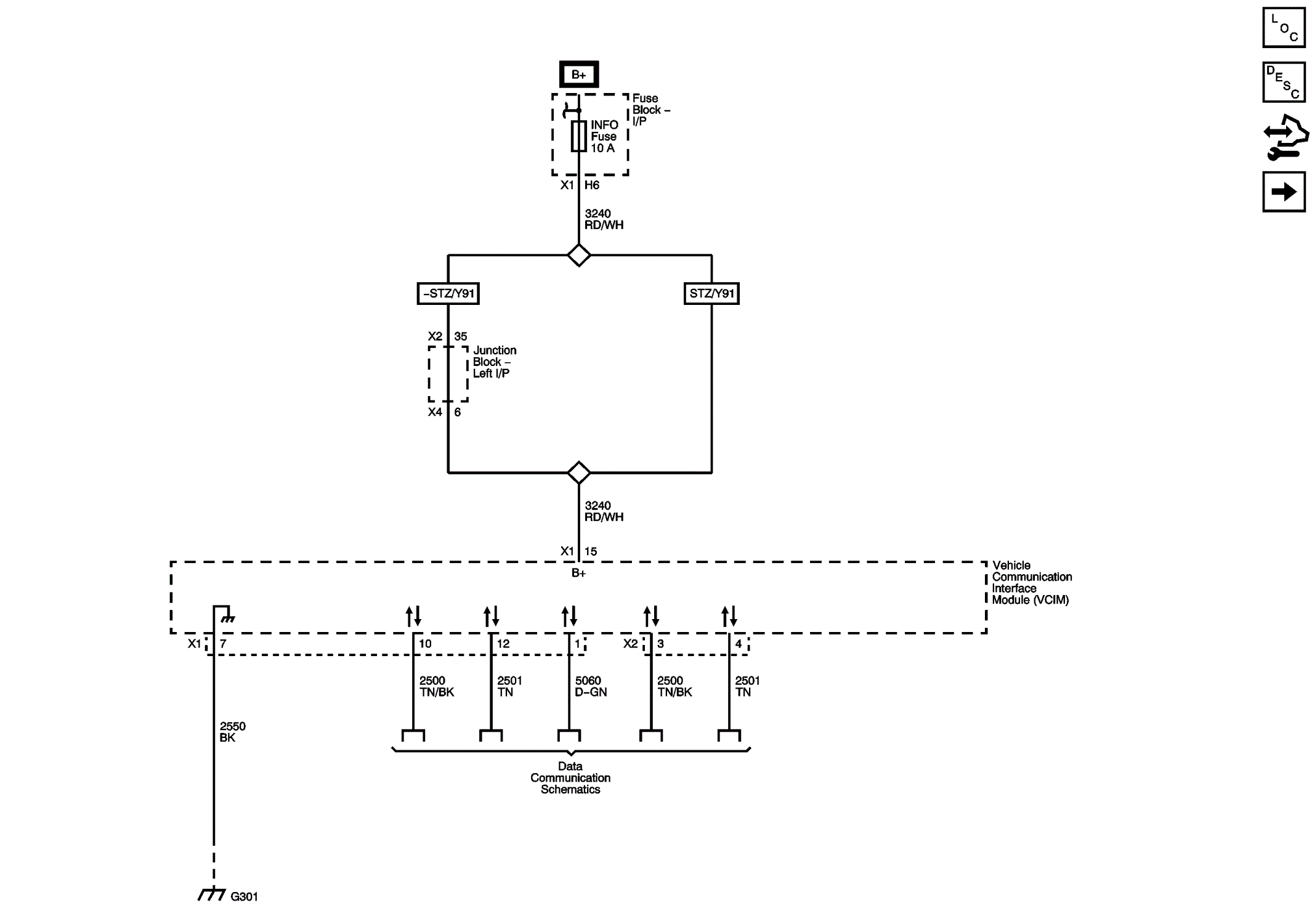

Fig 1: Module Power, Ground, and Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
