MYA or MYD

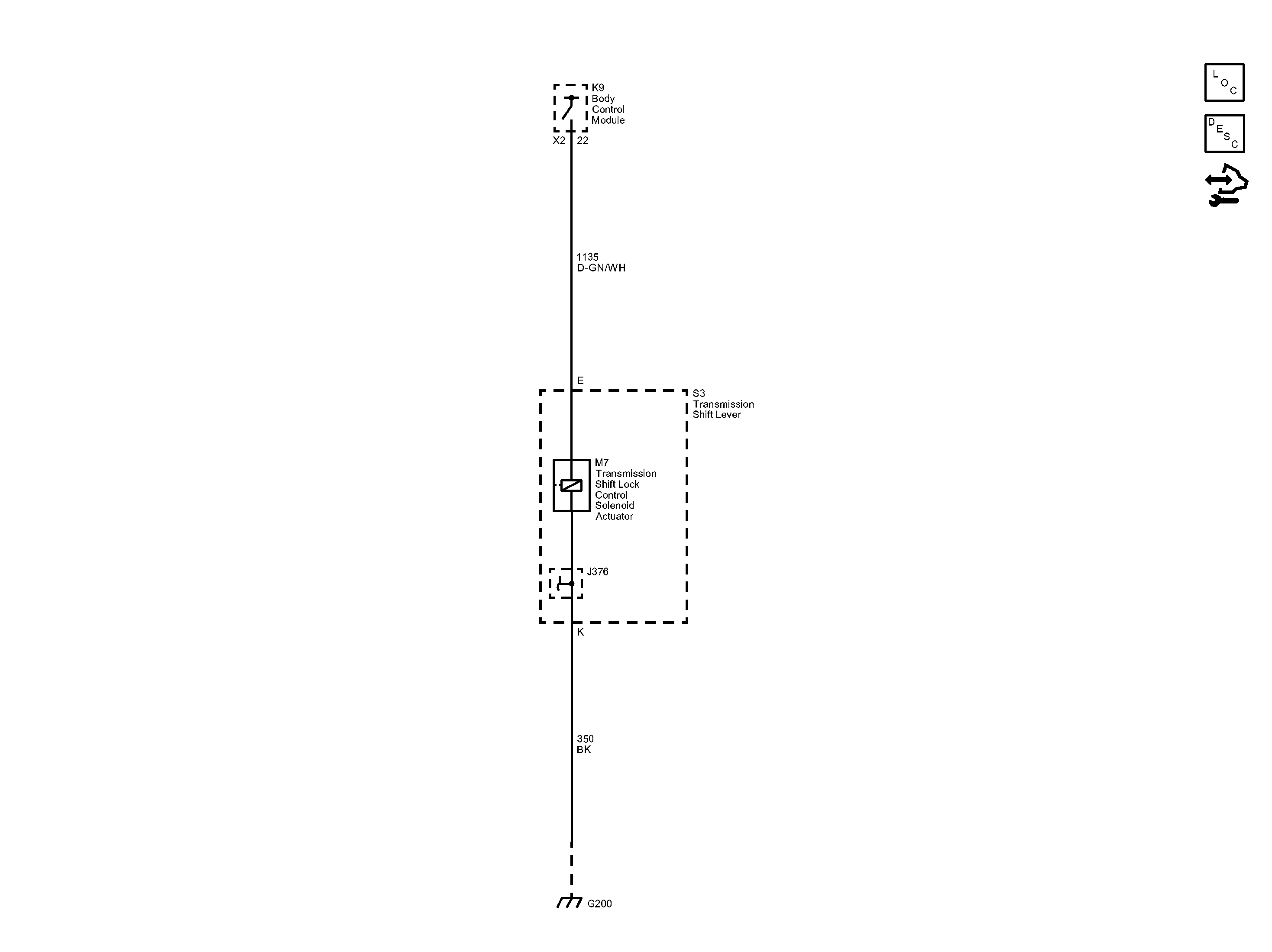

Fig 1: MYA or MYD Shift Lock Control Wiring Schematic

GM2779324

Courtesy of GENERAL MOTORS COMPANY
