High Speed GMLAN (LSA)

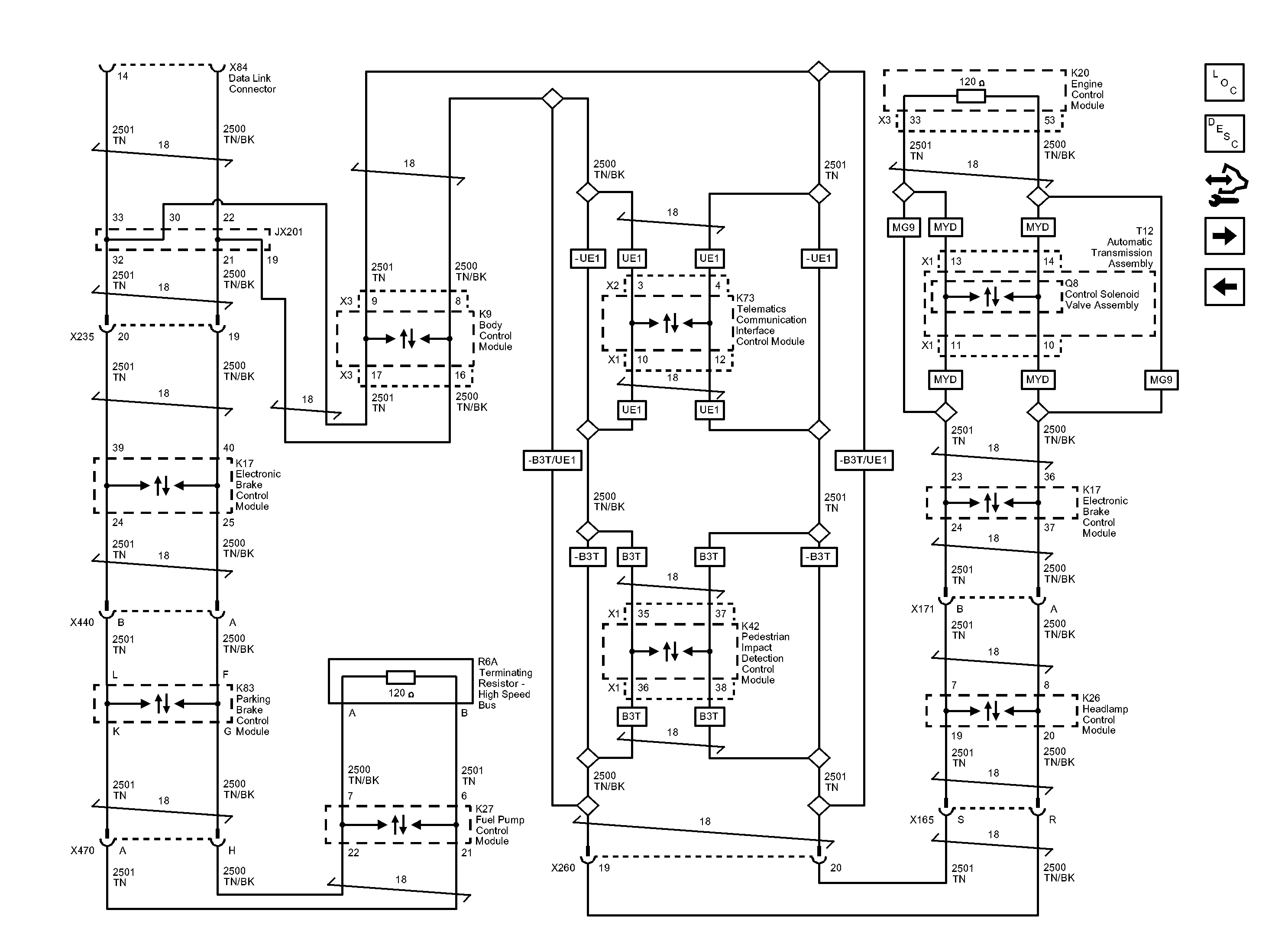

Fig 1: High Speed GMLAN (LSA) Wiring Schematic

GM2779095

Courtesy of GENERAL MOTORS COMPANY
