Communication Signals and Control
Communication Signals and Control

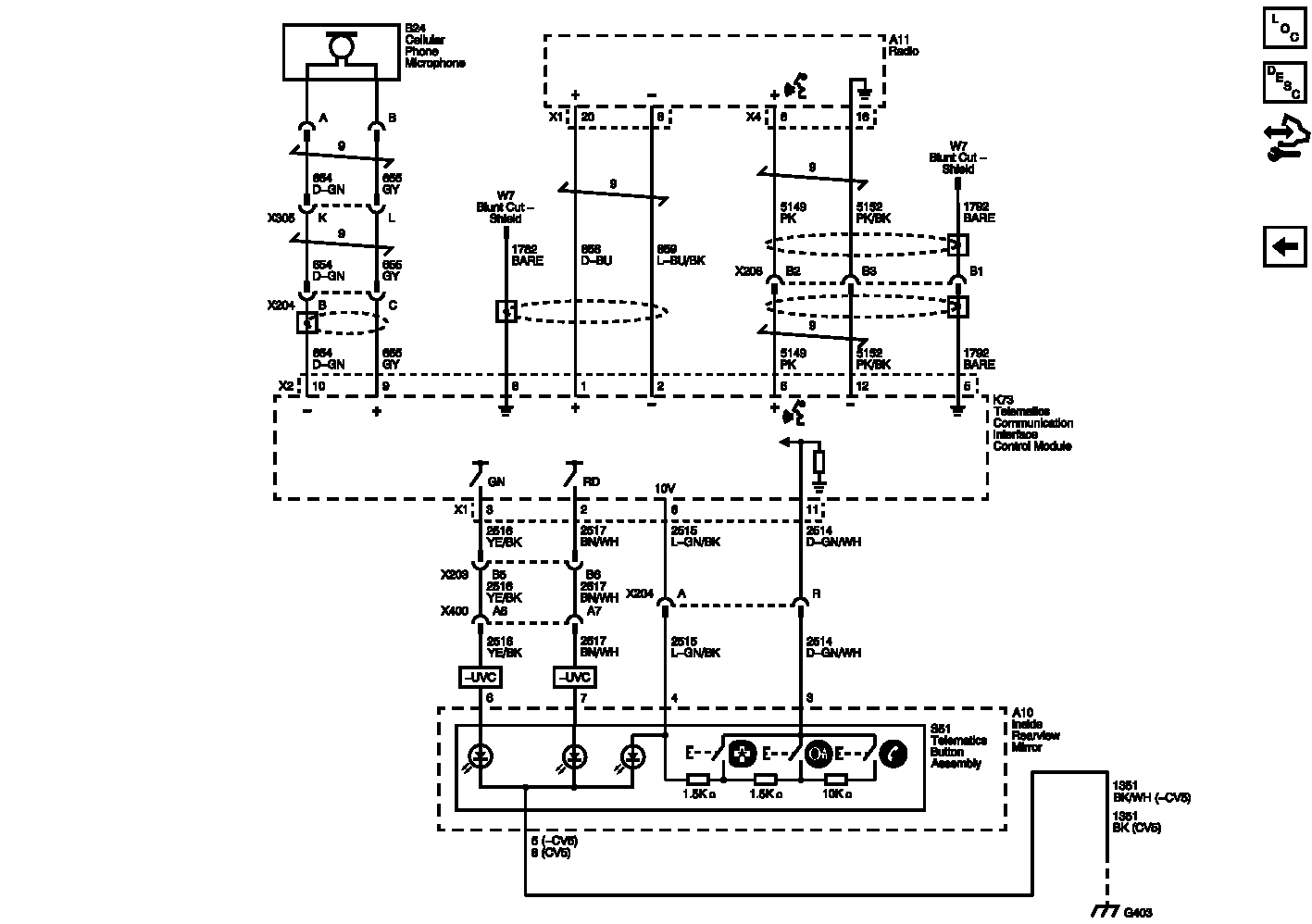

Fig 1: Communication Signals and Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
