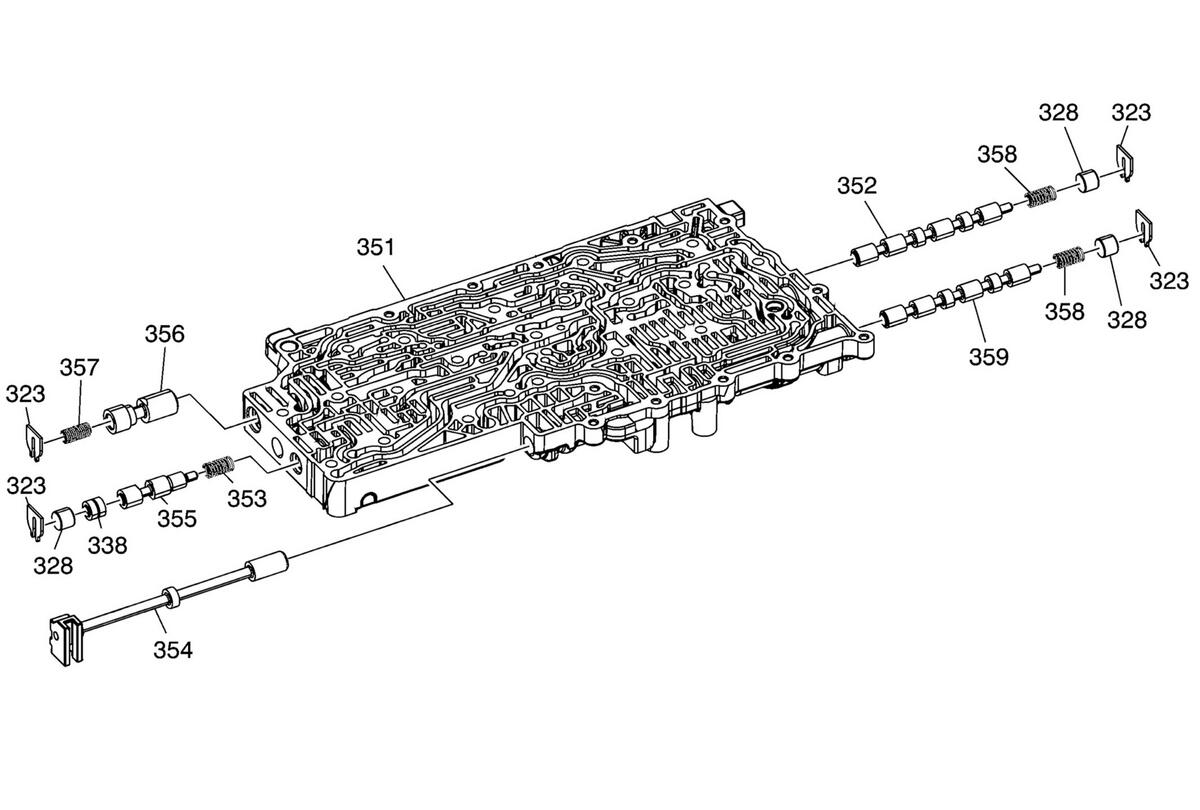

Lower Control Valve Body Assembly
| Callout | Component Name |
|---|---|
| 323 | Retainer |
| 328 | Clutch Regulator Valve Bore Plug |
| 338 | Shuttle Valve |
| 351 | Control Valve Lower Body |
| 352 | Clutch Select Solenoid Valve 3 |
| 353 | TCC Regulator Apply Valve Spring |
| 354 | Manual Valve |
| 355 | TCC Regulator Apply Valve |
| 356 | Clutch Piston Dam Feed Regulator Valve |
| 357 | Clutch Piston Dam Feed Regulator Valve Spring |
| 358 | Clutch Select Solenoid Valve Spring |
| 359 | Clutch Select Solenoid Valve 2 |
