Fuse Block - Rear Bottom View

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

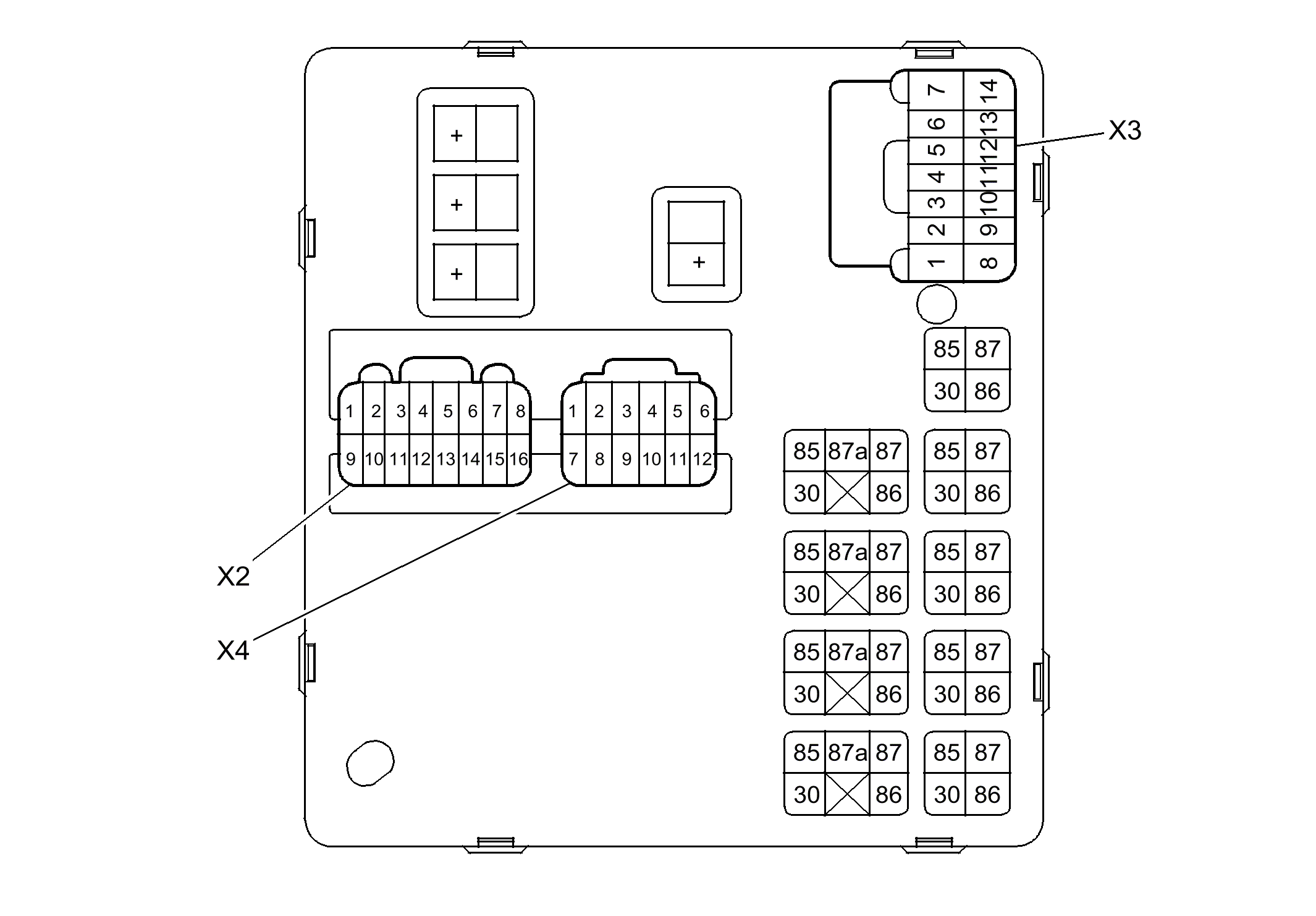

Fig 1: Fuse Block - Rear Bottom View
GM1986131Courtesy of GENERAL MOTORS CORP.
