Television Antenna Amplifier Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

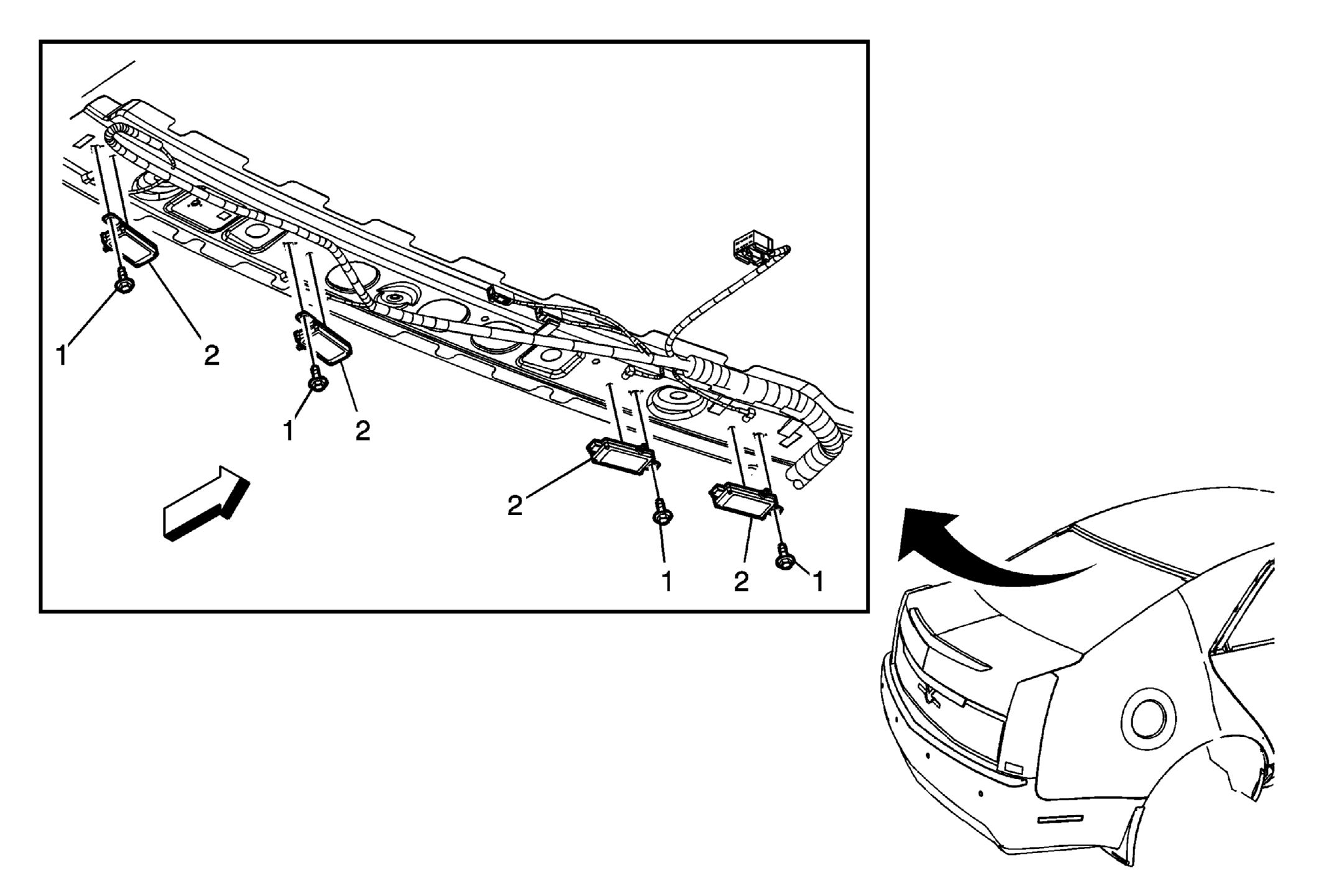

Fig 1: Television Antenna Amplifier Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement .
1	Television Antenna Amplifier Bolt (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Television Antenna Amplifier Assemblies Procedure Disconnect the electrical connections. Disconnect the antenna cables.

Callout

Component Name

Preliminary Procedure:
Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement .

Television Antenna Amplifier Bolt (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Television Antenna Amplifier Assemblies

Procedure

Disconnect the electrical connections.
Disconnect the antenna cables.
