High Speed Bus (2 of 2) Wiring Schematics

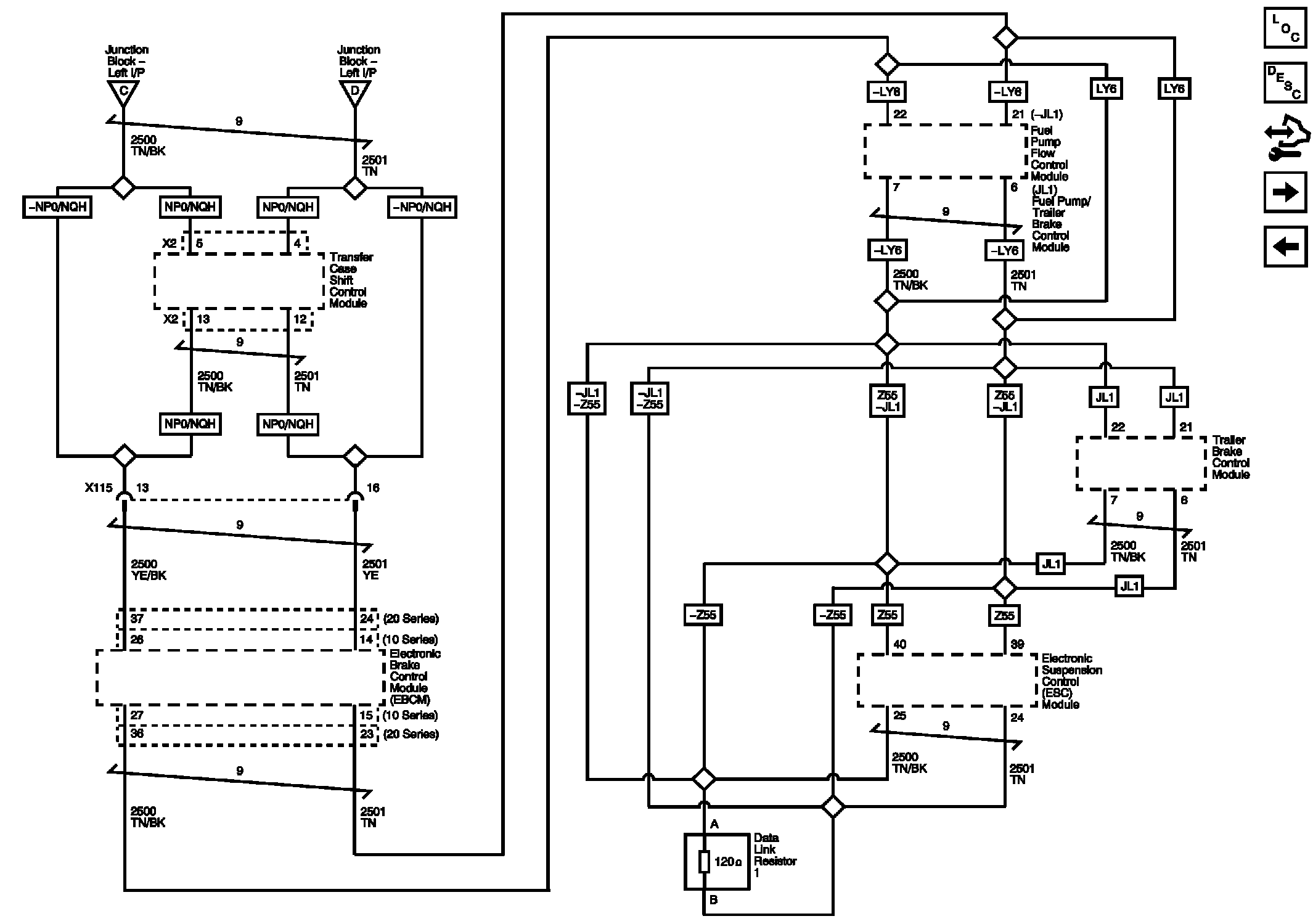

Fig 1: High Speed Bus (2 of 2) Wiring Schematics

GM2635344

Courtesy of GENERAL MOTORS COMPANY
