Module Power, Ground, Serial Data, and Memory Switch (AN3)Wiring Schematics

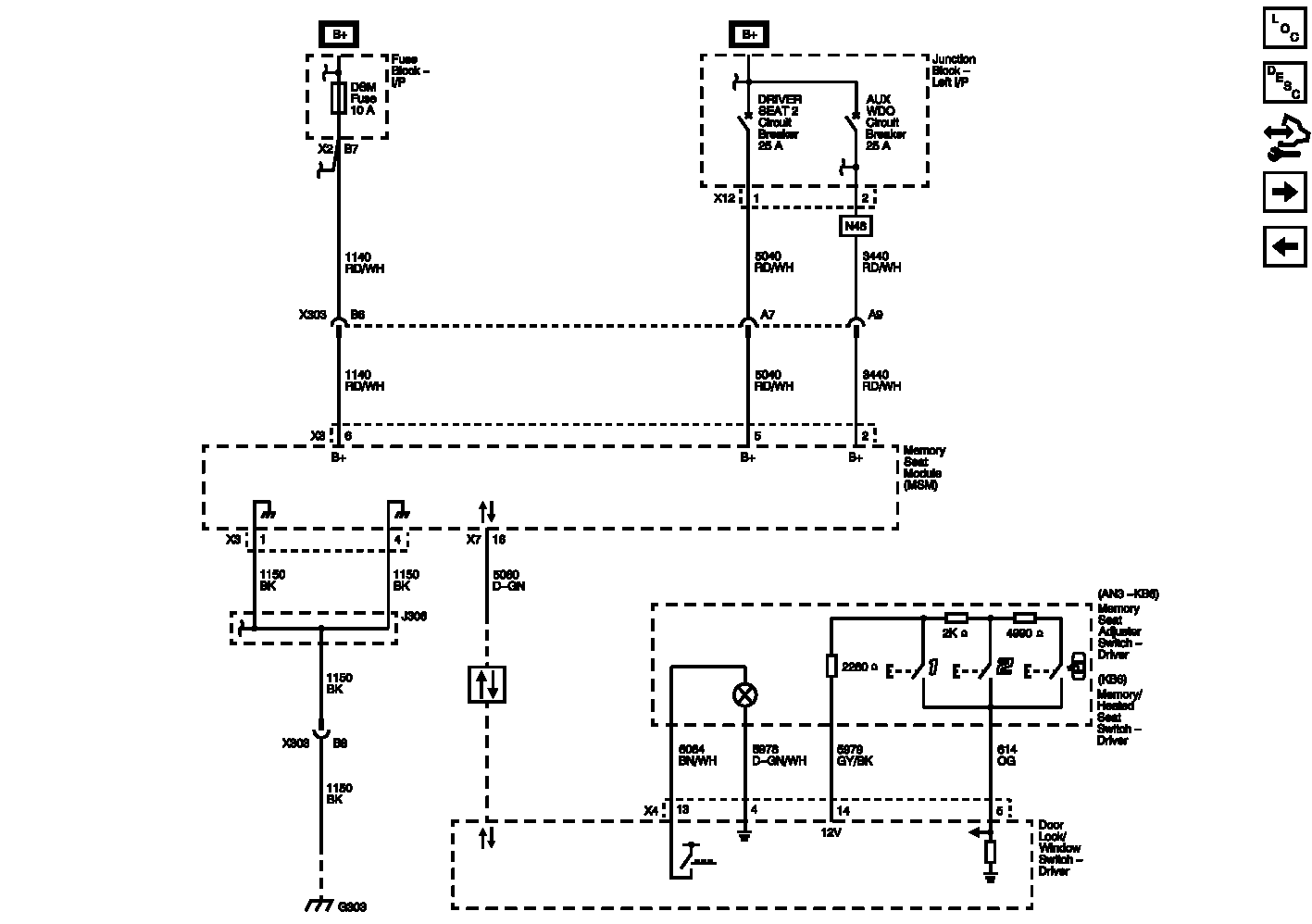

Fig 1: Module Power, Ground, Serial Data, and Memory Switch (AN3)Wiring Schematics

GM2640830

Courtesy of GENERAL MOTORS COMPANY
