Outside Rearview Mirror References Wiring Schematics

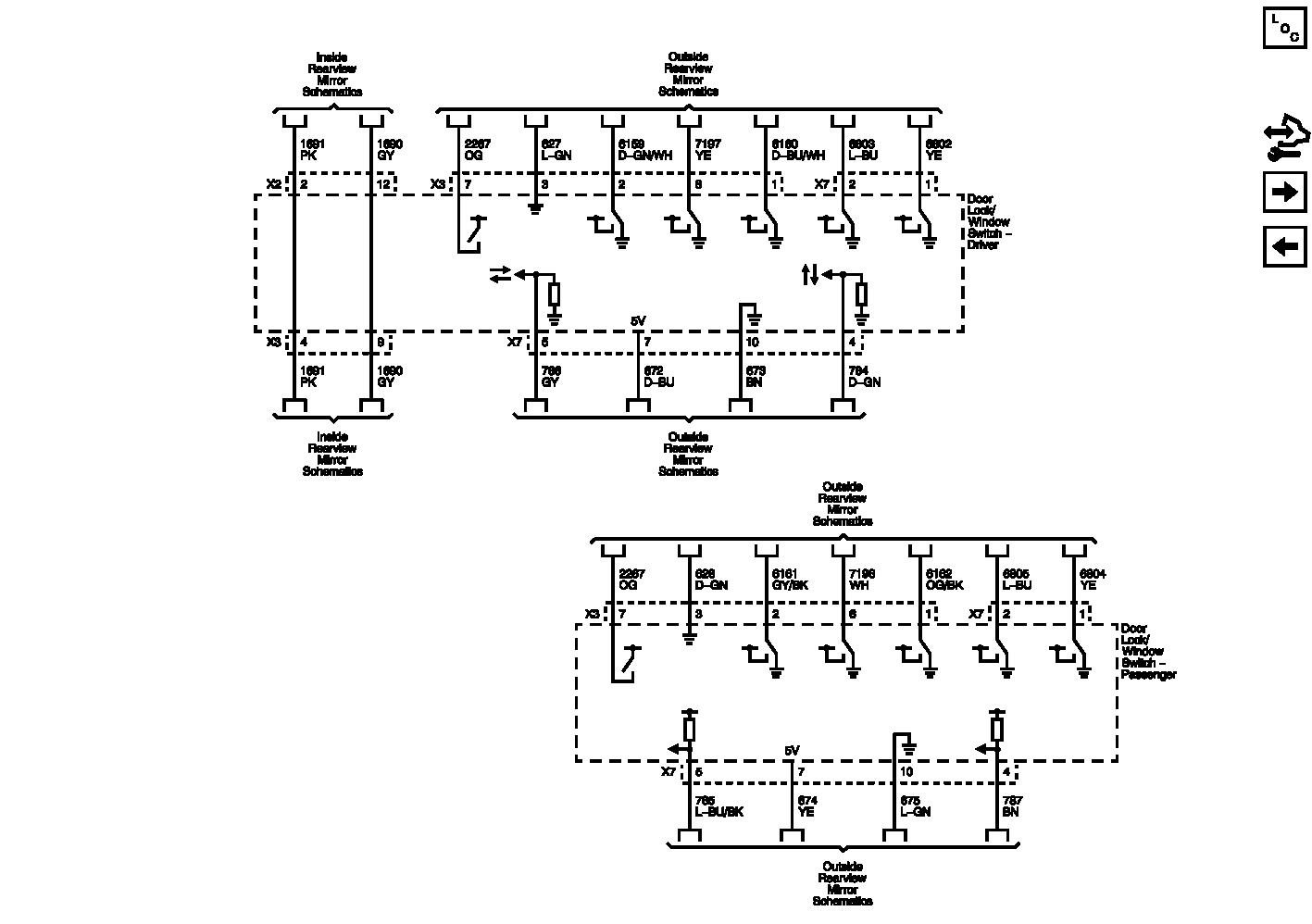

Fig 1: Outside Rearview Mirror References Wiring Schematics

GM2640826

Courtesy of GENERAL MOTORS COMPANY
