Air Cleaner Resonator Outlet Duct Replacement

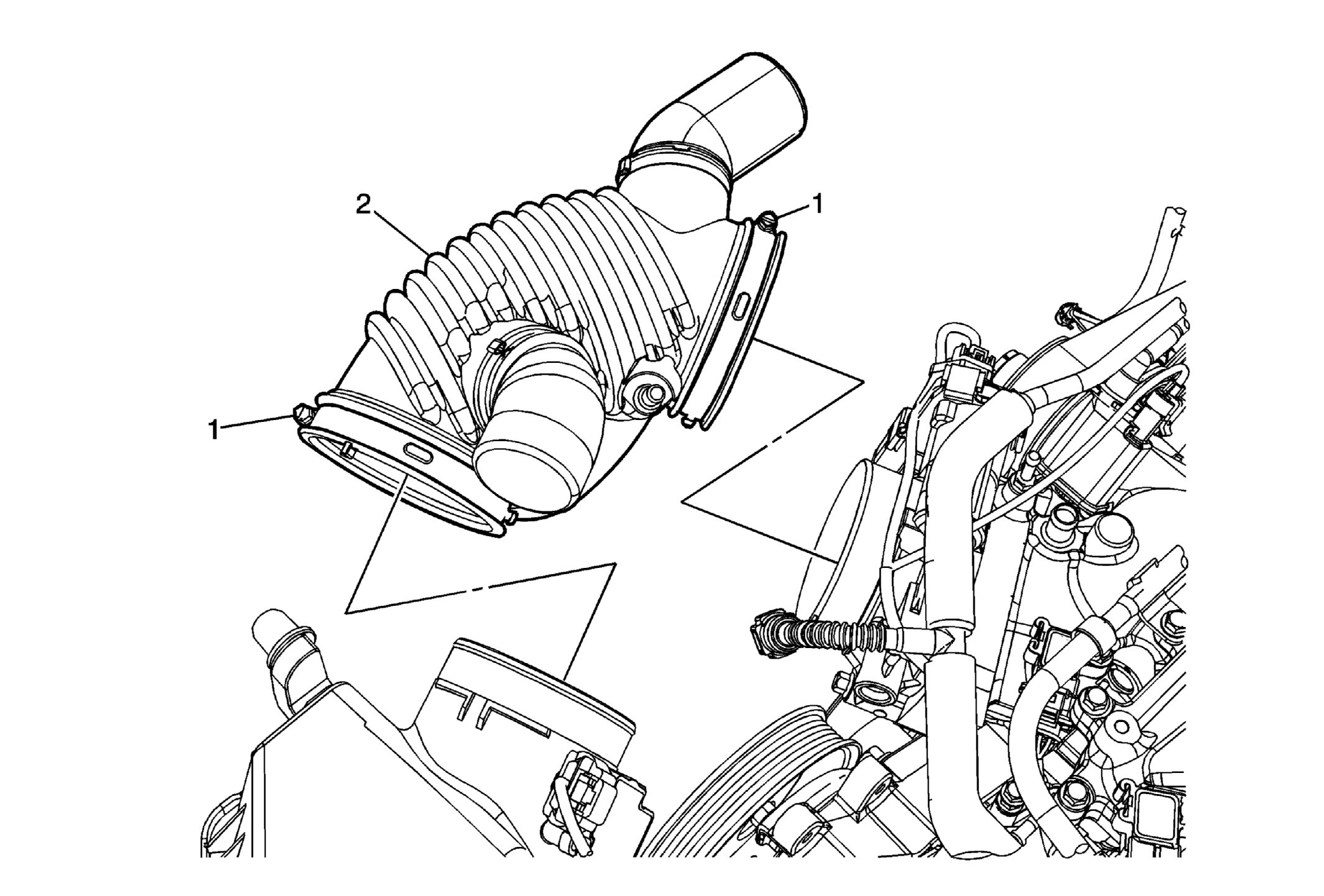

Fig 1: Identifying Air Cleaner Resonator Outlet Duct & Clamps

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front . Disconnect the PCV tube from the outlet duct. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
1	Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Resonator Outlet Duct Procedure Align the air cleaner duct with the PCV vent tube during installation.

Callout

Component Name

Preliminary Procedure

Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front .
Disconnect the PCV tube from the outlet duct. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement

Clamp (Qty: 2)

CAUTION:

Tighten
4 N.m (35 lb in)

Air Cleaner Resonator Outlet Duct
Procedure
Align the air cleaner duct with the PCV vent tube during installation.
