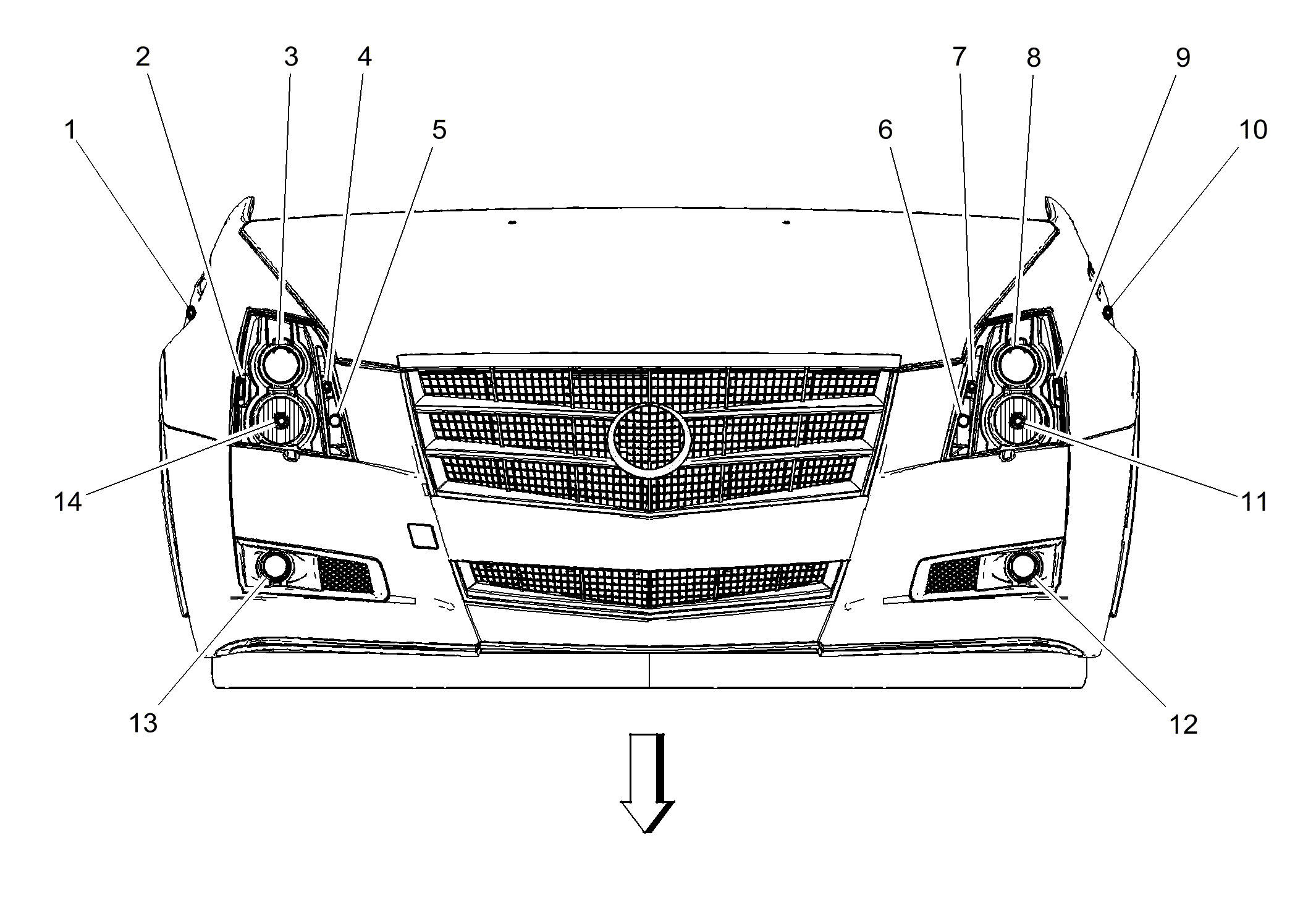

Front of Vehicle Components (without T4F)
Front of Vehicle Components (without T4F)
| Component Name | Callout |
|---|---|
| Turn Signal Repeater Lamp - Right Front (T90) | 1 |
| Side Marker Lamp - Right Front | 2 |
| Headlamp Low Beam - Right Front | 3 |
| Park Lamp - Right Front | 4 |
| Turn Signal Lamp - Right Front | 5 |
| Turn Signal Lamp - Left Front | 6 |
| Park Lamp - Left Front | 7 |
| Headlamp Low Beam - Left Front | 8 |
| Side Marker Lamp - Left Front | 9 |
| Turn Signal Repeater Lamp - Left Front (T90) | 10 |
| Headlamp High Beam - Left Front | 11 |
| Fog Lamp - Left Front (T96) | 12 |
| Fog Lamp - Right Front (T96) | 13 |
| Headlamp High Beam - Right Front | 14 |
